YOKOGAWA PW301-S4: Redundant DC Power Distribution Architecture for CENTUM CS/CS3000 Field Control Stations

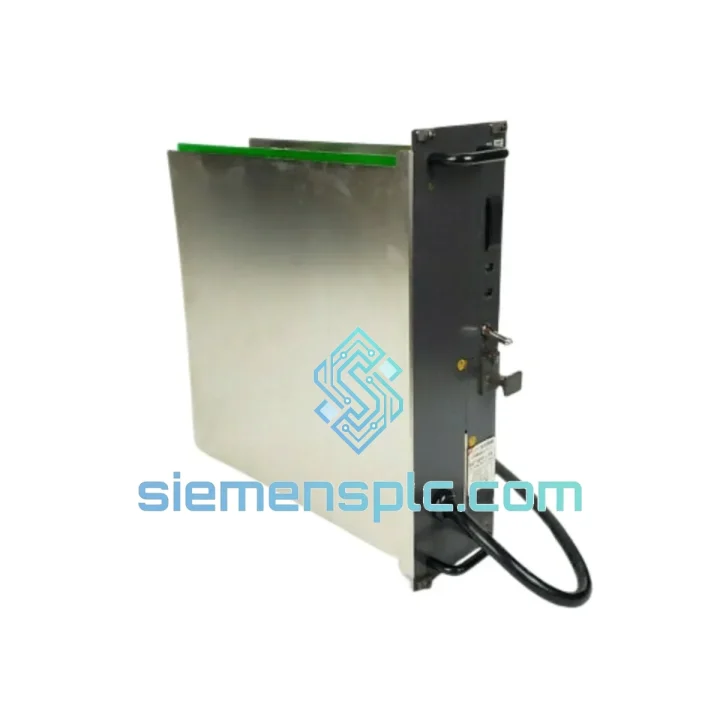

The PW301-S4 occupies a structurally critical position within the YOKOGAWA CENTUM CS and CS3000 distributed control system hierarchy. Installed directly into the power slot of a Field Control Station (FCS) chassis, this module is responsible for receiving 24 VDC from the plant’s upstream DC distribution or UPS infrastructure and delivering precisely regulated, noise-attenuated power to the internal backplane bus — the same bus that sustains the CP (Control Processor), all I/O modules, and inter-module communication cards simultaneously. Any instability at this layer propagates immediately into scan-cycle jitter, I/O read errors, and in worst-case scenarios, uncontrolled process shutdowns. The PW301-S4 is engineered to eliminate that failure vector entirely.

Unlike generic industrial power supplies, the PW301-S4 is a platform-native module. Its connector geometry, bus voltage profile, and diagnostic signaling protocol are all matched to the CENTUM CS3000 chassis specification. This means no adapter brackets, no voltage trimming, and no firmware workarounds — the module seats, initializes, and begins supplying regulated power within the FCS boot sequence without operator intervention.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PW301-S4’s internal architecture centers on a DC-DC conversion stage with active output regulation. The input stage incorporates transient voltage suppression (TVS) diodes and common-mode choke filtering to attenuate high-frequency noise injected by variable-frequency drives (VFDs), contactors, and other inductive loads common in process plant environments. This EMC front-end ensures that the 24 VDC rail presented to the conversion stage is clean and within the module’s operating window even under adverse plant electrical conditions.

The conversion stage itself uses a synchronous topology that maintains tight output voltage regulation across the full load range of the FCS backplane. Output ripple is suppressed to levels compatible with the analog input resolution requirements of CENTUM CS3000 I/O modules — a non-trivial constraint given that some analog modules resolve signals at 16-bit depth, where power supply noise directly degrades measurement accuracy.

In a 1:1 redundant configuration, two PW301-S4 units share the backplane load through an internal current-balancing mechanism. The arbitration logic monitors each module’s output current contribution and adjusts gate drive timing to maintain equal load sharing. If one module’s output voltage drops below the regulation threshold — due to component aging, thermal stress, or input undervoltage — the arbitration circuit detects the imbalance within microseconds and transfers full load to the healthy module. This bumpless transfer characteristic is essential for maintaining scan-cycle determinism in the CP module, which cannot tolerate power interruptions exceeding the hold-up time of its internal capacitors.

The module also drives a discrete diagnostic output to the FCS system bus. This signal is polled by the CENTUM CS3000 diagnostic daemon and surfaced as a hardware alarm on the Human Interface Station (HIS). Maintenance engineers receive a visual and logged alert before any actual power failure occurs, enabling planned replacement during a scheduled maintenance window rather than an emergency shutdown.

System Integration Benefits

• Zero-Reconfiguration Replacement: The PW301-S4 is a direct slot-compatible replacement for existing units in any CENTUM CS or CS3000 FCS chassis. No firmware update, no parameter re-entry, and no I/O mapping changes are required upon installation.
• Deterministic Control Loop Continuity: By eliminating power-layer instability, the module ensures the CP module maintains its configured scan cycle — typically 100 ms to 1 s — without jitter introduced by voltage sag or ripple on the backplane bus.
• Hot-Standby Failover Without Process Interruption: The 1:1 redundancy architecture allows the standby module to assume full load in under 1 ms, a transfer time that falls within the hold-up window of all CENTUM CS3000 processor and I/O modules, preserving process continuity.
• Proactive Fault Visibility: Diagnostic signaling to the HIS provides advance warning of power module degradation, converting a potential unplanned outage into a scheduled maintenance event with zero production impact.
• EMC Compliance in High-Noise Environments: The integrated input filtering meets IEC 61000-4 series immunity requirements, making the module suitable for installation in switchgear rooms and motor control centers where conducted and radiated interference levels are elevated.
• Thermal Stability Across Ambient Range: Rated operation from 0°C to 55°C covers the full range of industrial control room and field enclosure environments without derating, eliminating the need for supplemental cooling in standard installations.
• Reduced Spare-Parts Complexity: Standardizing on PW301-S4 across multiple FCS nodes in a plant reduces the number of distinct spare part numbers that maintenance teams must stock and manage, lowering inventory carrying cost.
• Extended Platform Service Life: Availability of verified replacement modules allows plants to continue operating CENTUM CS/CS3000 infrastructure beyond OEM active support windows, deferring costly full DCS migration projects.
• Backplane Bus Voltage Integrity: Tight output regulation protects the analog signal chain of connected I/O modules from measurement drift caused by supply voltage variation, maintaining process data accuracy at the sensor-to-controller interface.
• Simplified Commissioning Documentation: As a platform-native module, the PW301-S4 is fully covered by existing YOKOGAWA CENTUM CS3000 hardware manuals (IM 33S01B30-01E series), eliminating the need for supplemental integration documentation during FAT or SAT.
