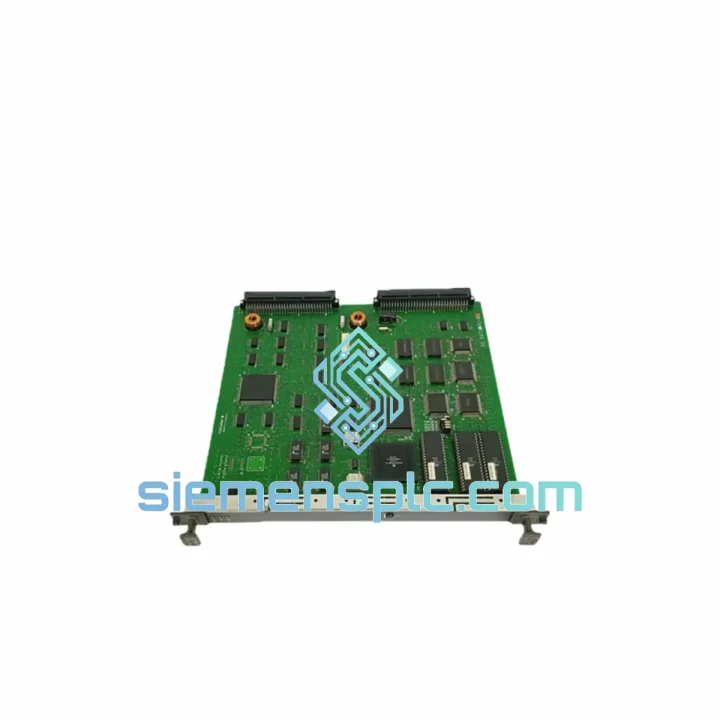

YOKOGAWA RB301 S2 DCS RIO Bus Master Card

YOKOGAWA RB301 S2 — Your CENTUM Node Is Down. Every Minute Costs Money. We Ship Today.

You already know the damage. The FCS dropped off the RIO bus, the HMI is showing a cascade of E3xx alarms, and your operations team is standing by waiting for a fix. The RB301 S2 is the RIO Bus Interface Master Card — the single point of failure that takes every downstream slave node with it when it goes. There is no software patch for this. You need the card.

We have the RB301 S2 in stock at our Xiamen facility right now. Not inbound. Not on order. On the shelf, tested, and ready to pack. We have dispatched this exact module to refineries in the Middle East, chemical plants across Southeast Asia, and power generation facilities in Europe — all on emergency timelines where the cost of delay was measured in tens of thousands of dollars per hour. We know what a plant-down situation looks like. We move accordingly.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of emergency callouts across process industries. Here is what actually fails on the RB301 S2, and what you must verify before the replacement card goes into the rack.

Failure Patterns You Will Recognize

• ALM LED solid red, all RIO slaves offline simultaneously: Classic RIO bus master failure. The RB301 S2 has lost arbitration control. Do not chase individual slave cards (RB401) — when the master goes, every node on that bus segment goes with it. Replace the master first.
• Intermittent node dropouts, recovers on reboot: Electrolytic capacitor degradation on the bus driver circuit. Common in modules over 8 years old operating in high-humidity environments. The reboot temporarily restores bus voltage, but the fault returns within hours. This is a hardware replacement, not a configuration issue.
• CENTUM Engineering Station alarm E301 — Bus Timeout: The FCS is not receiving acknowledgment from the RIO bus master within the expected window. Confirm the card is seated fully in the backplane connector. If reseating does not clear the alarm within one FCS restart cycle, the card is failed.
• CENTUM Engineering Station alarm E501 — Master Card Hardware Fault: The FCS has detected an internal self-test failure on the RB301 S2. This alarm does not clear with firmware reload or FCS restart. Physical card replacement is the only resolution path.
• FCS watchdog reset loop, 30–90 second cycle: The RB301 S2 is failing its power-on self-test and pulling the FCS into a reset cycle. Remove the card, inspect the edge connector for oxidation or mechanical damage, and test in a known-good spare chassis before condemning the backplane slot.

Pre-Replacement Checklist

• Redundancy verification: If your FCS runs dual RIO bus masters, confirm the secondary has assumed control before pulling the primary. Do not assume auto-failover has executed — verify active/standby status on the CENTUM HMI before touching hardware.
• No DIP switch addressing on RB301 S2: Unlike older CENTUM I/O cards, the RB301 S2 does not use physical DIP switches for slot or bus addressing. The master address is defined in the FCS engineering parameters in CENTUM Builder. Confirm the slot assignment in the project database before inserting the replacement card.
• Firmware revision matching: Locate the firmware revision label on the PCB near the edge connector. The replacement card must carry a firmware revision equal to or higher than the original. A mismatch between the RB301 S2 master firmware and the RB401 slave firmware is a documented cause of intermittent bus errors post-replacement — do not skip this check.
• Cold insertion only: The RB301 S2 is not hot-swappable in standard CENTUM CS 3000 configurations. Power down the affected FCS node before card insertion. Confirm with your site electrical safety procedure before opening the cabinet.
• Post-swap bus verification: After FCS restart, monitor the CENTUM diagnostic display for a minimum of 10 minutes. All RIO slave nodes should re-register within 60 seconds of FCS initialization. Any node that remains offline after 5 minutes warrants inspection of the RIO cable termination resistors — these are frequently disturbed during emergency maintenance and are a common secondary fault.

Reliability in Harsh Conditions

The RB301 S2 was not engineered for a temperature-controlled data center. It was built for the operational realities of continuous process plants — and the design reflects that requirement directly.

The PCB carries conformal coating on critical signal traces, providing a measurable defense against condensation and airborne chemical contaminants. This matters in petrochemical facilities, pulp-and-paper mills, and coastal installations where salt-laden air and process vapors accelerate corrosion on unprotected circuit boards. The bus driver ICs are rated for continuous operation at elevated ambient temperatures, maintaining stable performance in poorly ventilated control cabinets where internal temperatures routinely reach 45°C or higher during summer production peaks.

Mechanical robustness is a genuine design consideration for this module. Installed in FCS racks mounted on structural steel near rotating machinery — compressors, centrifugal pumps, steam turbines — the card’s through-hole component construction and robust edge connector provide vibration resistance that surface-mount-only designs cannot match at equivalent reliability levels. The connector retention force is sufficient to maintain electrical contact under the continuous low-frequency vibration profiles common in heavy industry.

EMI immunity is addressed at the architecture level through the RIO bus’s differential signaling scheme. The bus maintains communication integrity in electrical environments dominated by variable-frequency drives, large motor starters, and high-current switching equipment operating in the same zone. In practice, this means the RB301 S2 continues to function in conditions where lower-specification fieldbus solutions require extensive shielding, filtering, and physical separation to achieve comparable noise immunity.

Every unit dispatched from our Xiamen facility has been stored in climate-controlled, ESD-safe conditions from the point of acquisition. Surplus cards sourced from decommissioned plant spares undergo bench verification of bus communication integrity before listing. We do not ship untested stock.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. The card is physically in our facility. This is not a broker listing or a drop-ship arrangement.

• Same-day dispatch: Orders confirmed before 15:00 CST ship the same business day. DHL Express tracking number issued within 2 hours of handover to the carrier.
• DHL Express International: 1–3 business days to most destinations in Southeast Asia, the Middle East, and Europe. 2–4 business days to the Americas and Sub-Saharan Africa.
• FedEx International Priority: Available on request for destinations where FedEx coverage or customs clearance speed is superior to DHL. Specify at time of order.
• Export documentation: Commercial invoice, packing list, and HS code declaration are prepared for every shipment. We have direct experience with import clearance requirements in Singapore, the UAE, India, Germany, South Korea, and the United States.
• ESD-safe packaging: The RB301 S2 ships in an anti-static shielding bag inside a foam-lined outer carton. Fragile and orientation labels applied as standard. No exceptions for cost or speed.
• Plant-down emergency freight: For genuine production-stopped situations, contact us directly on WhatsApp before placing an order. We have arranged next-flight-out courier shipments for critical clients when standard express services could not meet the required delivery window. The cost is higher — the alternative is worse.

If your logistics team requires a specific airline, a specific flight number, a specific customs broker at the destination port, or a specific incoterm, communicate that requirement at the time of order. We work around your operational constraints, not ours.
