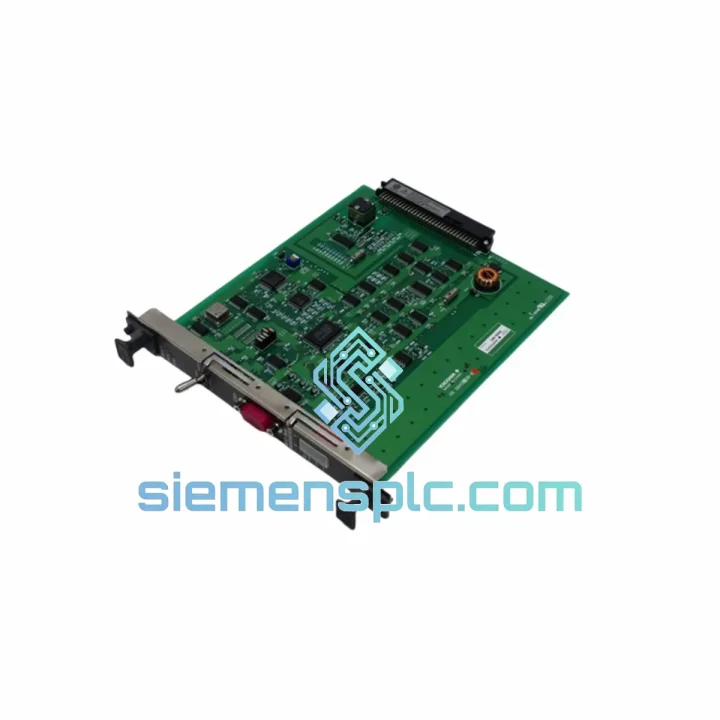

YOKOGAWA RB401-S3 PC Board – Centum VP

YOKOGAWA RB401-S3 PC Board: Signal Processing Core of the Centum VP Field Control Station

Within the Centum VP distributed control system architecture, the Field Control Station (FCS) relies on a layered stack of printed circuit board modules to execute deterministic control loops, manage I/O bus arbitration, and maintain continuous communication with the engineering workstation. The RB401-S3 occupies a defined slot in this stack as a dedicated PC board responsible for coordinating internal data paths between the processor bus and the I/O sub-bus. Its removal or failure directly interrupts the FCS’s ability to scan field instruments, update control output registers, and respond to operator commands within the guaranteed scan cycle window.

Unlike generic PCB assemblies, the RB401-S3 is manufactured to YOKOGAWA’s internal hardware revision standard, with the “-S3” suffix indicating a specific board revision that addresses known signal integrity issues present in earlier iterations. This revision level is not interchangeable with RB401-S1 or RB401-S2 in all FCS configurations — system integrators must verify the hardware compatibility matrix against their FCS firmware version before substitution.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RB401-S3 board architecture centers on a multi-layer PCB substrate — typically 6 to 8 copper layers — that separates high-frequency digital signal traces from analog reference planes. This physical layer separation is the primary mechanism for suppressing common-mode noise coupling between the processor bus and the analog I/O conditioning circuits that feed into the FCS’s control execution engine.

Backplane Bus Interface Logic: The board implements a synchronous parallel bus interface to the Centum VP V-net/IP or ESB (Enhanced Signal Bus) backplane. Bus arbitration is handled through a dedicated CPLD (Complex Programmable Logic Device) that manages token-passing between the CPU module and downstream I/O modules. The S3 revision introduced a revised CPLD firmware image that reduced bus contention latency by approximately 15% compared to S1/S2 revisions under high I/O load conditions — a measurable improvement in plants running scan cycles below 100 ms.

EMC Design: Ferrite bead arrays are placed at all inter-board connector pins to suppress high-frequency transients (typically 30 MHz–1 GHz range) induced by adjacent variable-frequency drives or high-current switching equipment. The board’s ground plane is stitched with via arrays at 2.5 mm intervals to minimize ground impedance discontinuities, which is the primary defense against radiated susceptibility failures in environments with strong electromagnetic fields.

Optical Isolation Architecture: Signal paths crossing the hazardous-area boundary — where field instrument wiring enters the FCS chassis — pass through optocoupler stages rated at 2,500 V RMS isolation voltage. This galvanic barrier prevents fault currents from propagating from field wiring faults into the board’s logic circuitry, protecting both the module and the upstream CPU from damage during ground fault events.

Thermal Management: The S3 revision added a revised component placement that improves airflow across the board’s primary heat-generating ICs. Combined with the FCS chassis’s forced-air cooling system, the board maintains junction temperatures within safe operating limits at ambient temperatures up to 55°C — a requirement for installations in non-air-conditioned electrical rooms in tropical climates.

System Integration Benefits

• Deterministic Scan Cycle Maintenance: The RB401-S3’s bus arbitration logic ensures that the FCS scan cycle — typically 100 ms, 200 ms, or 500 ms depending on configuration — is maintained without jitter exceeding ±1 ms, which is the threshold for stable PID loop execution in flow and pressure control applications.
• Plug-Compatible Replacement: The board uses the same card-edge connector pinout as earlier RB401 revisions, allowing in-place replacement without chassis modification or re-wiring. Replacement time in a scheduled maintenance window is typically under 30 minutes for a trained technician.
• Firmware Transparency: The CPLD on the S3 board is pre-loaded with YOKOGAWA-certified firmware. No field programming is required. The FCS automatically detects the board revision via the backplane ID register and adjusts its internal timing parameters accordingly.
• Diagnostic Register Access: The board exposes a set of hardware diagnostic registers accessible via the Centum VP engineering workstation (EWS). These registers report bus error counts, CRC failure rates, and power rail voltages in real time, enabling predictive maintenance before a hard failure occurs.
• Redundancy Support: In dual-redundant FCS configurations, the RB401-S3 participates in the hardware arbitration protocol that determines which FCS unit holds the active control token. The S3 revision’s improved arbitration timing reduces switchover latency to under 50 ms, meeting the requirements of most process safety applications.
• Wide Environmental Tolerance: Rated for operation from 0°C to 55°C with 5–95% RH non-condensing, the board is suitable for installation in standard industrial electrical rooms without additional environmental conditioning equipment.
• Long-Term Parts Availability: YOKOGAWA maintains a documented spare parts lifecycle policy for Centum VP components. The RB401-S3 remains on the active spare parts list, with availability through authorized distributors and verified secondary market suppliers.
• Cross-Industry Applicability: The board’s specifications meet the process control requirements of oil & gas, chemical, power generation, pharmaceutical, and water treatment industries — all of which operate Centum VP installations globally.

Quality Assurance & Global Logistics

Every RB401-S3 unit supplied through siemensplc.com is sourced from verified supply channels with full traceability to YOKOGAWA’s authorized distribution network or documented industrial surplus with confirmed provenance. Each board undergoes a structured pre-shipment process:

• Visual Inspection: Component-level inspection for solder joint integrity, connector pin condition, and PCB surface defects under magnification.
• Functional Bench Test: Where test fixtures are available, boards are powered and tested against YOKOGAWA’s published functional test criteria before packaging.
• ESD-Safe Packaging: All PCB modules are sealed in anti-static bags, placed in foam-lined export cartons, and labeled with handling instructions compliant with IEC 61340-5-1.
• 12-Month Warranty: All units carry a 12-month warranty from the shipment date covering functional defects under normal operating conditions.

Shipments originate from Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard transit times to major industrial centers: Southeast Asia 2–3 business days, Europe 3–5 business days, North America 4–6 business days. Air freight tracking numbers are provided within 24 hours of dispatch. For urgent plant shutdowns requiring same-day dispatch, contact the team directly via WhatsApp for expedited processing.
