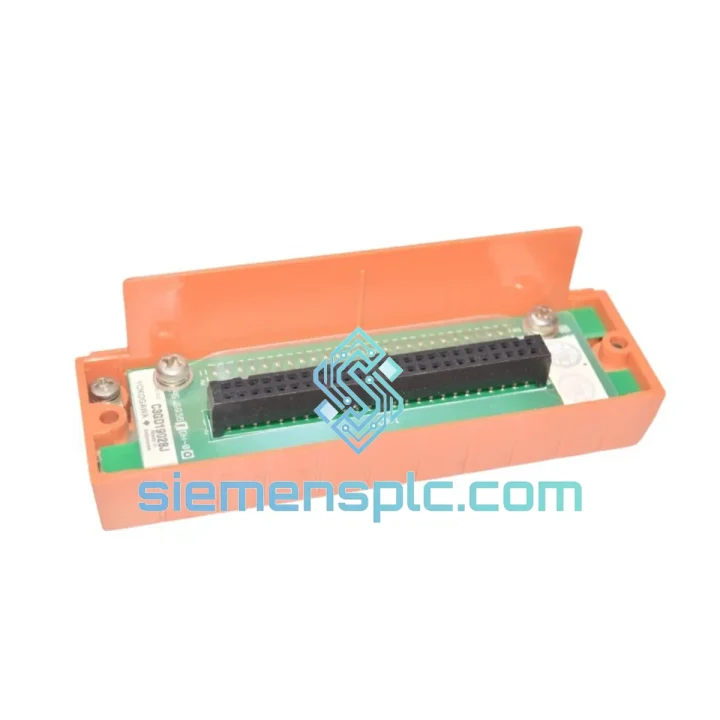

Yokogawa S9361DH-00 DCS I/O Module – CENTUM VP

Yokogawa S9361DH-00 — Digital I/O Interface Module in CENTUM VP Field Control Architecture

The S9361DH-00 occupies a structurally critical position within the Yokogawa CENTUM VP Distributed Control System. As a dedicated Digital I/O module, it functions as the primary signal conditioning and isolation boundary between field-level discrete instrumentation and the Field Control Station (FCS) processor domain. In continuous-process industries — refining, petrochemical, power generation, and pharmaceutical manufacturing — the integrity of discrete signal acquisition directly governs the reliability of interlock logic, sequence control, and emergency shutdown response. The S9361DH-00 is engineered to meet those demands without compromise.

Within the CENTUM VP I/O chassis, the S9361DH-00 receives 24 VDC wet contact or dry contact field signals on its input channels and drives field actuators through its output circuits. Signal states are transferred to the FCS processor via the high-speed internal I/O bus each controller scan cycle. This synchronous, deterministic data path ensures that discrete events — valve position feedback, motor run status, ESD trip signals — are captured and acted upon within the guaranteed scan period, a non-negotiable requirement in safety-instrumented and high-availability process environments.

The module’s optical isolation architecture electrically decouples the field wiring domain from the controller backplane. This galvanic separation prevents ground loop currents, common-mode transients, and field-side fault voltages from propagating into the FCS processor, protecting both the control system and the process data it manages. In industrial environments where cable runs traverse high-voltage switchgear rooms, motor control centers, and outdoor cable trays, this isolation margin is not a convenience feature — it is a fundamental EMC requirement.

For procurement engineers managing CENTUM VP installed base, the S9361DH-00 represents a direct slot-compatible replacement. No firmware reconfiguration, no I/O builder re-mapping, no FCS download is required in standard module swap scenarios. This characteristic is particularly valuable during planned turnaround maintenance windows where minimizing re-commissioning time directly translates to reduced production loss.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The S9361DH-00’s internal signal path begins at the field terminal block, where incoming discrete signals pass through transient voltage suppression (TVS) circuitry before reaching the photocoupler input stage. The photocoupler provides a minimum 500 V isolation barrier between field wiring and the logic-side circuitry, attenuating common-mode noise and eliminating the risk of ground potential differences — a frequent source of spurious trips in large-scale DCS installations where field cable shields reference different earth points.

On the logic side, signal states are latched into a parallel register and transferred to the I/O bus interface ASIC each scan cycle. The bus interface implements a deterministic handshake protocol with the FCS processor, guaranteeing that no scan cycle completes with stale I/O data. This architecture eliminates the asynchronous sampling uncertainty present in non-synchronized I/O designs, where a signal transition occurring mid-scan may not be captured until the following cycle.

Output channels employ solid-state switching elements with integrated flyback protection for inductive loads — motor contactors, solenoid valves, relay coils — preventing voltage spikes from damaging the output stage during de-energization. The output driver logic incorporates short-circuit detection, with fault status reported back to the FCS processor via the I/O bus diagnostic channel, enabling the control system to generate maintenance alarms without requiring field personnel to physically inspect the module.

The module’s PCB layout follows IEC 61000-4 EMC design guidelines: signal traces are routed with controlled impedance, power and signal planes are separated, and decoupling capacitors are placed at each IC power pin. This layout discipline, combined with the chassis grounding provided by the I/O chassis frame, gives the S9361DH-00 a measured immunity margin well above the EN 61131-2 requirements for industrial programmable controllers.

System Integration Benefits

• Zero-Reconfiguration Hot Replacement: Slot-compatible with existing CENTUM VP I/O chassis; module swap does not require FCS download or I/O builder modification in standard configurations, reducing planned maintenance duration.
• Deterministic Scan-Cycle Alignment: I/O data is transferred synchronously with the FCS scan cycle, eliminating jitter in discrete event capture — critical for sequence logic with tight timing constraints.
• Galvanic Field Isolation: Optical isolation on all input channels prevents field-side fault currents from reaching the controller backplane, protecting FCS processor integrity in fault scenarios.
• Integrated Output Fault Diagnostics: Short-circuit and open-load conditions on output channels are detected and reported to the FCS via the I/O bus, enabling proactive maintenance without field inspection.
• High Channel Density per Chassis Slot: Maximizes discrete I/O capacity within the FCS chassis footprint, reducing the number of chassis required for large-scale discrete I/O applications.
• Redundant I/O Station Support: Compatible with CENTUM VP redundant I/O station configurations; module can be deployed in redundant pairs for high-availability process control loops.
• Broad Industrial Application Coverage: Validated for use in oil & gas, petrochemical, power generation, pharmaceutical, and water treatment environments — industries where discrete I/O reliability directly affects process safety.
• Long-Term Installed Base Support: Yokogawa maintains backward compatibility across CENTUM VP generations; the S9361DH-00 supports lifecycle extension of existing FCS installations without platform migration.
• ESD-Safe Handling and Packaging: Shipped in anti-static packaging with moisture barrier, preserving module integrity during international transit and long-term storage.
• Traceable Lot Documentation: Serial number and lot traceability documentation available on request, supporting regulated-industry procurement and quality audit requirements.

Quality Assurance & Global Logistics

Every S9361DH-00 unit supplied by siemensplc.com is sourced as genuine Yokogawa OEM hardware through verified industrial supply channels. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: visual examination of PCB, connectors, and labeling; verification of part number and revision markings against Yokogawa documentation; and functional continuity verification of I/O terminals. Units that do not pass inspection are quarantined and not shipped.

Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to air freight services connecting to Europe, North America, Southeast Asia, and the Middle East. Standard international delivery is achieved within 5–10 business days via DHL, FedEx, or UPS express services. Expedited 3–5 business day delivery is available for urgent plant maintenance requirements. All shipments include commercial invoice, packing list, and tracking number. Certificate of conformance and inspection report are available upon request for quality-regulated procurement processes.

A 12-month warranty against manufacturing defects is provided on all units. Warranty claims are processed with a target response time of 48 business hours. Extended warranty and on-site technical support arrangements are available for volume procurement customers.
