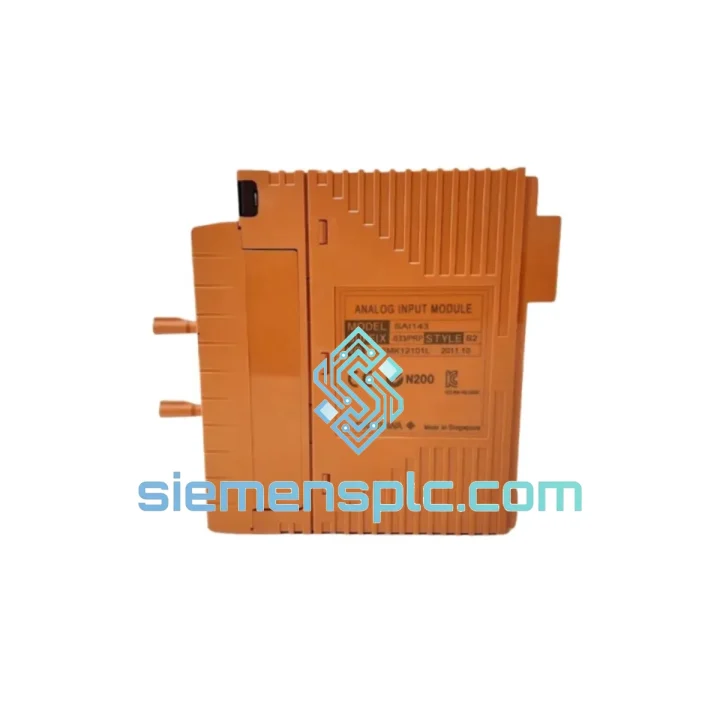

Yokogawa SAI143-H63 S4 Analog Input Module

SAI143-H63 S4 — Stop the Bleed: Every Minute of DCS Signal Loss Costs You Money

Your CENTUM VP or CS 3000 FCS just threw a hardware fault. Sixteen analog input channels are dead. Operators are flying blind on temperature, pressure, and flow — and your process safety system is one bad reading away from an emergency shutdown. You don’t need a sales pitch. You need a Yokogawa SAI143-H63 S4 on your bench today.

We stock the SAI143-H63 S4 in Xiamen and ship globally via DHL Express and FedEx Priority. Most orders clear customs and land at your facility within 3–5 business days. For plants in Southeast Asia, the Middle East, and East Africa, we’ve consistently beaten 72-hour door-to-door on urgent orders. While your procurement team is still waiting on a quote from the OEM distributor, your replacement module could already be in transit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that bring you here:

• IOM FAIL / HW FAIL on FCS diagnostic screen — hardware fault detected on the I/O module. First step: reseat the card. If the fault persists after a cold reseat, the module is the culprit.
• AI channel showing 105% or –5% fixed value — classic sign of a failed input circuit on that channel. If multiple channels show this simultaneously, suspect the module’s internal power rail or the H63 isolation barrier.
• HART communication dropout on all 16 channels — the SAI143-H63 S4 passes HART signals transparently. If HART comms fail across the board after a module swap, check the HART multiplexer configuration in the FCS builder, not the module itself.
• SIL diagnostic alarm (S4 variant) — the S4 suffix means this module runs continuous self-diagnostics per IEC 61511. A persistent SIL alarm after clearing process faults almost always means the module’s internal watchdog has tripped. Replace the module; do not attempt to reset the SIL latch in software without physical replacement.

Replacement procedure — what to check before you pull the card:

1. Confirm FCS firmware compatibility. The SAI143-H63 S4 requires FCS firmware R3.09 or later for full S4 diagnostic support. Check your FCS revision in the CENTUM VP System View before ordering if you’re on an older CS 3000 installation.
2. Node unit slot assignment. The SAI143 series uses automatic slot addressing — the FCS reads the module’s position in the node unit and assigns the tag database accordingly. There are no DIP switches on this module for address setting. Slot position IS the address. Do not move the module to a different slot unless you update the FCS builder configuration.
3. Hot-swap procedure. CENTUM VP FCS supports online module replacement (OMR) for SAI143 series when the node unit is configured for redundant power. Confirm your node unit supports OMR before attempting a live swap. On CS 3000 systems, a controlled FCS restart is typically required.
4. Wiring termination. The SAI143-H63 uses a marshalling terminal block (MTB) connection. Verify the MTB cable connector is fully seated after module insertion — a partial connection causes intermittent channel faults that are notoriously difficult to diagnose remotely.
5. Post-replacement verification. After insertion, monitor the FCS diagnostic display for 60 seconds. All 16 channels should return to normal scan within two FCS scan cycles. If any channel remains in fault, check the field wiring loop continuity before condemning the replacement module.
