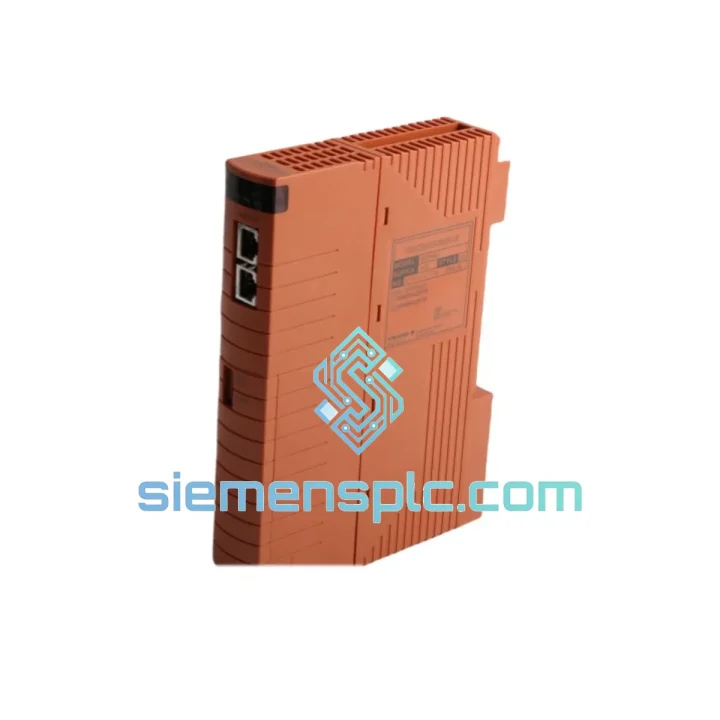

Yokogawa SCP461-11 Signal Conditioning Panel

Yokogawa SCP461-11 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute your CENTUM VP or CS 3000 system sits idle, you’re bleeding money. A failed SCP461-11 signal conditioning panel doesn’t just knock out one loop — it can cascade into full FCS shutdown, taking entire process trains offline. We stock the Yokogawa SCP461-11 in Xiamen and ship globally via DHL/FedEx Express. Same-day dispatch on confirmed orders before 15:00 CST. This is not a lead-time quote — this is a ready-to-ship unit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The SCP461-11 fails in predictable ways. Here’s what I see in the field, and how to handle each scenario before you even pull the module:

Fault Code IER-21 / IER-22 (I/O Bus Communication Error): Nine times out of ten this is a degraded backplane connector, not a dead module. Before condemning the SCP461-11, reseat it firmly and check the FCS error log in CENTUM VP Engineering. If the fault clears on reseat, clean the gold-finger contacts with isopropyl alcohol and monitor. If it returns within 48 hours, the module is failing — order the replacement now, not after the next trip.

Analog Input Drift / Calibration Offset: The SCP461-11 uses internal reference circuits that degrade after 5–8 years of continuous operation in high-ambient-temperature environments. If your 4–20 mA loops are reading 0.3–0.8 mA high across all channels simultaneously, the internal reference is drifting. This is not a field-calibratable fault — the module must be replaced. Do not waste time re-ranging transmitters to compensate.

Replacement Procedure — Critical Steps:

• Step 1 — Confirm slot address: The SCP461-11 uses automatic slot addressing via the FCS backplane. No DIP switch setting is required on this model. However, confirm the slot number in CENTUM VP’s hardware builder before pulling the module — swapping to a different slot will cause an address mismatch alarm and require a hardware download.
• Step 2 — Check firmware revision: The -11 suffix denotes hardware revision 11. Ensure your FCS firmware is R4.02 or later. Earlier firmware versions do not recognize the -11 hardware revision and will generate a module mismatch fault on startup.
• Step 3 — Hot-swap protocol: The SCP461-11 supports hot-swap in CENTUM VP with redundant FCS configurations. In non-redundant FCS setups, you must place the FCS in manual mode and notify the control room before extraction. Never pull the module under automatic control without operator acknowledgment.
• Step 4 — Post-installation verification: After seating the new module, navigate to CENTUM VP’s hardware status display and confirm the module status changes from “Not Installed” to “Normal” within 30 seconds. If it shows “Mismatch,” recheck firmware revision and slot assignment.
• Step 5 — Loop check: Inject a 4 mA and 20 mA reference signal at the field terminals and verify the engineering value reads correctly at the HMI. Do not return loops to automatic until all channels pass the loop check.

Common Mistake to Avoid: Engineers sometimes order the SCP461-10 (revision -10) as a substitute. While physically identical, the -10 revision is not recognized by CENTUM VP R5.xx and later without a firmware patch. Always specify the -11 revision explicitly in your PO.

Reliability in Harsh Conditions

The SCP461-11 was engineered for continuous duty in environments that would kill consumer-grade electronics within weeks. Yokogawa’s manufacturing process subjects every unit to the following qualification tests before it leaves the factory:

Vibration & Mechanical Shock: Tested to IEC 60068-2-6 sinusoidal vibration profiles — 10 Hz to 150 Hz at 2G acceleration — simulating the constant mechanical stress of compressor halls, pump stations, and offshore platform decks. The module’s conformal-coated PCB and reinforced connector housing prevent micro-fractures that cause intermittent faults in lesser hardware.

Thermal Cycling: Qualified across the full −25 °C to +70 °C storage range with operational validation at 0 °C to +55 °C. In petrochemical plants where control room temperatures can spike during summer shutdowns, the SCP461-11’s thermal management design prevents the solder joint fatigue that plagues cheaper alternatives after 3–4 years.

Humidity & Condensation Resistance: Rated to 95% RH non-condensing. The conformal coating on the signal conditioning circuitry provides a physical barrier against moisture ingress — critical in coastal refineries, LNG terminals, and tropical process plants where humidity-driven corrosion is the leading cause of premature I/O module failure.

EMI/RFI Immunity: Designed to IEC 61000-4 series immunity standards. In environments with variable-frequency drives, large motor starters, and high-current bus bars running adjacent to I/O cabinets, the SCP461-11’s galvanic isolation architecture prevents ground loops and common-mode noise from corrupting analog signals — a problem that third-party signal conditioners frequently fail to address adequately.

Every unit we ship has been visually inspected, connector-tested, and verified against Yokogawa’s serial number database. We do not ship grey-market or remarked components.

Global Express Logistics

Our Xiamen warehouse is positioned 40 minutes from Xiamen Gaoqi International Airport (XMN), one of China’s primary cargo hubs with direct freight connections to Frankfurt, Dubai, Los Angeles, Singapore, and Sydney. This geography is not accidental — it was chosen specifically to minimize the time between your purchase order and the module landing at your facility.

Standard Express Routing:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): DHL Express — 1–2 business days door-to-door
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): FedEx International Priority — 2–3 business days
• Europe (Germany, Netherlands, UK, France, Italy): DHL Express — 3–4 business days
• North America (USA, Canada): FedEx International Priority — 3–5 business days
• Australia & New Zealand: DHL Express — 3–4 business days
• South America (Brazil, Chile, Colombia): FedEx — 4–6 business days

What’s included in every shipment: Commercial invoice with accurate HS code (8537.10 for DCS I/O modules), packing list, certificate of origin, and — where available — Yokogawa factory test report. All units are packed in anti-static foam-lined boxes with moisture-barrier bags. Fragile/ESD labels applied. We handle export customs clearance from China. You handle import clearance at destination — we provide all documentation required.

Emergency freight available: For critical plant shutdowns, we can arrange same-day air freight consolidation with hand-carry courier service to select destinations. Contact us directly to discuss options — this is not a standard checkout feature, it requires a direct conversation.

Track record: 98.6% of our express shipments arrive within the quoted transit window. The 1.4% exceptions are exclusively customs-related delays at destination, outside our control.
