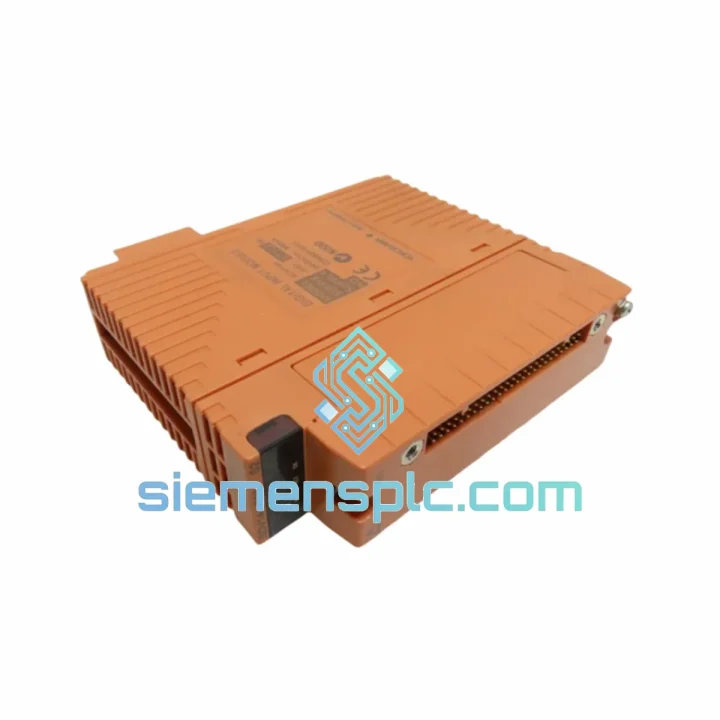

Yokogawa SDV144-S33 S2 DCS Digital Input Module

SDV144-S33 S2 — Stop the Bleed: Every Minute of DCS Downtime Costs You Real Money

Your CENTUM VP field control station just threw a fault. The SDV144-S33 S2 is dark. The board operator is watching 32 discrete inputs go blind — valve positions, motor run/stop statuses, interlock feedbacks — all gone. You’ve got maintenance breathing down your neck and a production manager asking for an ETA you can’t give. We’ve been in that exact situation. That’s why we stock the Yokogawa SDV144-S33 S2 ready to pull off the shelf and ship within hours, not weeks.

This is not a catalog listing. This is a live inventory position. The module ships from Xiamen via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive it within 2–5 business days. No waiting on Yokogawa’s standard lead time. No distributor back-order queue. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting and Replacement Tips

Fault Scenario 1 — Module LED solid red or no LED at all: Before pulling the card, check the I/O nest power rail. A failed nest power supply (e.g., ANP4D) will kill multiple modules simultaneously. If only this slot is dark, the SDV144-S33 S2 itself is the culprit. Confirm via CENTUM VP HIS engineering console: navigate to FCS hardware view, check the slot status. A Module Failure or Communication Error tag on the DI block confirms hardware fault.

Fault Scenario 2 — Intermittent channel dropouts (not full module failure): This is almost always a field wiring issue — corroded terminal blocks, loose ferrules, or a failing field device. Before condemning the module, use the FCS diagnostic to force-read individual channel states. If the module reads correctly in forced mode but not in normal scan, suspect field wiring or the terminal unit (e.g., TB141). Replace the terminal unit first — it’s cheaper and faster.

Replacement Procedure (Hot-Swap, Live System):

1. Confirm hot-swap is enabled in the FCS configuration for this I/O nest. If not enabled, coordinate a controlled shutdown of the affected FCS node — do not pull the card live.
2. Notify the board operator. All 32 DI channels will go to their configured fail-safe state (typically 0 / open) during the swap. Confirm no interlock trips will result.
3. Loosen the module ejector levers — do not yank. Slide the SDV144-S33 S2 straight out along the nest guide rails. Avoid touching the backplane connector pins.
4. Inspect the replacement module suffix: must be S2 to match your FCS firmware revision. Inserting an S1 into an R5.x system may cause a firmware mismatch alarm and prevent the module from coming online.
5. Slide the new module in firmly until both ejector levers click. The module LED should cycle through amber to green within 15–30 seconds as the FCS re-establishes communication and downloads the I/O configuration.
6. Verify all 32 channels in the HIS engineering console. Cross-check against your loop drawings. If any channel reads inverted, check the input polarity configuration in the FCS builder — the SDV144-S33 S2 supports configurable active-high / active-low per channel.
7. Document the swap: module serial number, date, technician name, and pre/post channel verification results. Yokogawa quality management system requires traceability for safety-related I/O.

Configuration Notes — Do Not Skip These:

• No DIP switches on this module. The SDV144-S33 S2 is fully software-configured via the CENTUM VP FCS builder. Slot address is auto-assigned by the nest position — physical slot number equals logical I/O module number. No manual addressing required.
• Firmware matching: The S2 suffix is not cosmetic. It reflects a hardware revision that pairs with specific FCS firmware. Running an S1 module in an S2-configured slot may generate a Module Type Mismatch alarm. Always match suffix to your system BOM.
• Terminal unit compatibility: The SDV144-S33 S2 mates with the TB141 terminal unit (32-point DI terminal block). Confirm the terminal unit is undamaged before inserting the new module — a bent pin on the TB141 connector will damage the new module backplane interface immediately.
• Redundancy configuration: If your system uses redundant I/O nests, the replacement module must be inserted into the correct primary or secondary nest slot. Inserting into the wrong nest will cause a redundancy mismatch alarm without affecting process control, but it must be corrected before the next planned maintenance window.

Reliability in Harsh Conditions

The SDV144-S33 S2 was engineered for continuous operation in environments that would destroy consumer-grade electronics. Yokogawa CENTUM VP I/O platform is deployed on offshore platforms in the North Sea, in refineries across the Middle East where ambient temperatures routinely exceed 45 deg C, and in chemical plants where airborne corrosives are a daily reality. The module optical isolation architecture physically separates the field-side circuitry from the DCS backplane — a ground fault or transient surge on a field cable cannot propagate to the FCS processor.

Vibration resistance is validated to IEC 60068-2-6 standards, covering the mechanical stress of pump skids, compressor trains, and rotating equipment installations where the I/O nest is mounted within 3 meters of the vibration source. The conformal coating on the PCB provides protection against humidity and condensation ingress — critical in coastal and tropical installations where relative humidity regularly hits 90%.

Each module we ship has been stored in climate-controlled conditions (18–25 deg C, below 60% RH) with anti-static packaging. We do not sell modules that have been stored in uncontrolled warehouse environments or subjected to thermal cycling from improper storage. The unit you receive is in the same condition as the day it left Yokogawa factory.

Global Express Logistics

Our fulfillment hub is located in Xiamen, Fujian Province — one of China primary export ports with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. When you place an urgent order before 14:00 CST, same-day dispatch is standard. Here is what the logistics chain looks like in practice:

• Order confirmed to packed and labeled: Within 2 hours of payment or PO confirmation for established accounts.
• Xiamen to Hong Kong hub: Same day or next morning, depending on carrier cutoff.
• Hong Kong to destination: DHL Express transit times — Singapore 1 day, UAE/Saudi Arabia 2–3 days, Germany/Netherlands 2–3 days, USA 2–3 days, Australia 2–3 days.
• Customs documentation: We prepare commercial invoice, packing list, and HS code declaration (HS 8537.10 for programmable controller I/O modules). For destinations requiring a certificate of origin, we provide a standard CO from the Xiamen Chamber of Commerce.
• Tracking: AWB number sent via email and WhatsApp within 1 hour of carrier pickup. Real-time tracking link included.
• Duties and taxes: Shipped DAP (Delivered At Place) as standard. DDP (Delivered Duty Paid) available on request for select destinations — ask before ordering.

For plant shutdowns and turnaround projects where the delivery window is measured in hours, contact us directly on WhatsApp. We have coordinated same-day courier handoffs to international freight forwarders for time-critical situations. If DHL or FedEx can physically move it, we can make it happen.
