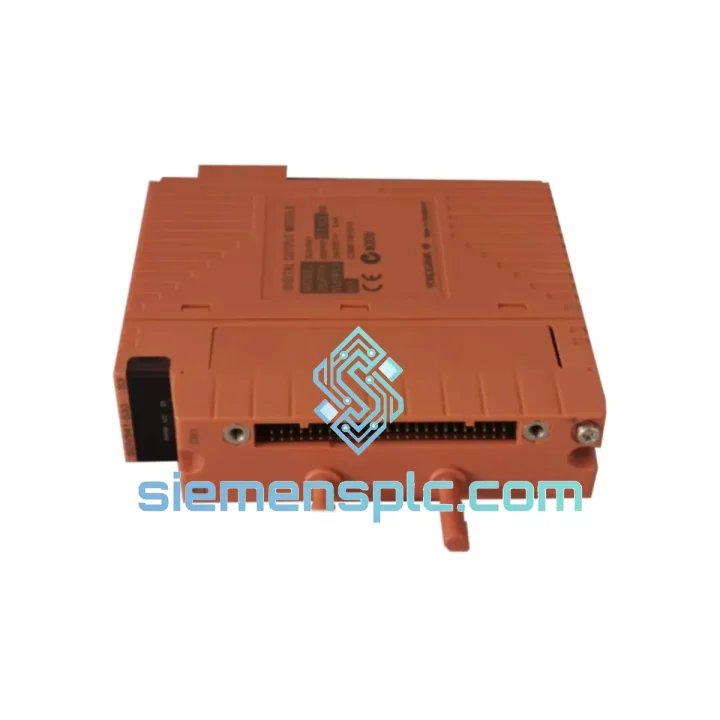

Yokogawa SDV541-S33/PRP S3: 32-Channel Digital Output Module in CENTUM VP Control Architecture

Within a CENTUM VP distributed control system, the digital output layer is the final command boundary between the control logic and physical field devices — solenoid valves, motor starters, relay coils, and actuator drivers. The SDV541-S33/PRP S3 occupies this boundary with a 32-channel transistor sink output design, redundant power supply architecture (PRP), and native V-net ER bus integration. For procurement engineers managing MRO inventory or brownfield DCS expansions, this module represents a direct form-fit-function replacement with no marshalling cabinet re-engineering required.

Unlike generic third-party I/O cards, the SDV541-S33/PRP S3 is recognized natively by the CENTUM VP engineering station. The FCS automatically identifies the module type, channel count, and diagnostic capability upon insertion — eliminating manual driver configuration and reducing commissioning time to minutes rather than hours.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SDV541-S33/PRP S3 is built around three hardware design pillars that distinguish it from commodity DO cards: optical isolation integrity, redundant power arbitration, and channel-level diagnostics.

Optical Isolation Architecture: Each of the 32 output channels passes through a dedicated optocoupler stage positioned between the V-net ER backplane logic domain (3.3 V CMOS) and the 24 VDC field-side transistor driver. This galvanic separation prevents ground potential differences — common in large industrial plants where cable runs span multiple earthing zones — from coupling noise or fault currents back into the FCS backplane. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 surge immunity requirements, protecting the DCS controller from field-side inductive kickback generated by solenoid valve coils and relay de-energization events.

PRP Redundant Power Arbitration: The PRP sub-module continuously monitors both the primary and secondary 24 VDC supply rails using independent voltage comparator circuits. When either rail drops below the undervoltage threshold (typically 18 VDC), the arbitration logic asserts the switchover signal within one millisecond — well below the 10 ms minimum pulse width required to trigger most solenoid valve state changes. This means a power supply failure at the cabinet level does not produce a spurious output state change at the field device. The switchover is transparent to the FCS control loop; no alarm acknowledgment or manual reset is required.

EMC Design: The module’s PCB layout follows Yokogawa’s standard EMC partitioning practice: the digital logic section, optocoupler array, and output driver section occupy separate ground planes connected at a single star point. Ferrite beads on the backplane connector pins suppress high-frequency common-mode noise injected from adjacent modules sharing the same NU chassis. The result is consistent output switching behavior even in environments with variable-frequency drives (VFDs) and high-current motor switching in adjacent panels.

Channel-Level Diagnostics: Each output channel reports its commanded state and actual load-side feedback to the FCS at every scan cycle. The module’s internal current sense circuit detects open-circuit conditions (wire break or blown fuse) and over-current conditions (shorted field device) independently per channel, flagging the fault in the CENTUM VP HIS without requiring external monitoring relays.

System Integration Benefits

• Native CENTUM VP Recognition: The module is enumerated automatically by the FCS upon insertion into the NU slot. No manual I/O assignment or driver file import is required in CENTUM VP Builder, reducing engineering hours during expansion or replacement projects.
• Deterministic Output Latency: Commands issued by the FCS control function block are executed within one scan cycle (100 ms or 500 ms, depending on FCS configuration). The V-net ER bus arbitration guarantees bounded latency — no packet collision or retry mechanism introduces variable delay as found in Ethernet-based I/O systems.
• Hot-Swap Without Process Interruption: In a redundant NU configuration, the SDV541-S33/PRP S3 can be extracted and reinserted under live bus power. The redundant NU partner maintains output states during the swap window, enabling zero-downtime card replacement during scheduled maintenance windows or unplanned failures.
• SIL 2 Loop Integration: The module’s IEC 61508 SIL 2 capability allows it to participate in safety instrumented functions (SIFs) without an additional safety relay interposing layer in many plant configurations, reducing component count and potential failure points in the safety loop.
• 32-Channel Density Efficiency: Compared to 16-channel alternatives, the SDV541-S33/PRP S3 halves the number of card slots consumed per 32 field points, directly reducing cabinet footprint, backplane power consumption, and per-point installed cost in greenfield and expansion projects.
• Continuous Diagnostic Transparency: Wire-break detection, over-current flagging, and power rail status are surfaced in real time on the CENTUM VP HIS operator station. Maintenance teams can identify a failing field device or wiring fault without physical cabinet inspection, reducing mean time to repair (MTTR).
• Backward Compatibility with CS 3000: The SDV541 series operates in CENTUM CS 3000 Node Units from firmware R3.08 onward, protecting the capital investment of plants that have not yet migrated fully to CENTUM VP while allowing incremental hardware refresh.
• ATEX Zone 2 Certification: The module carries ATEX certification for installation in Zone 2 hazardous area cabinets (with appropriate enclosure), eliminating the need for remote I/O marshalling in many offshore and onshore hydrocarbon processing facilities.

Quality Assurance & Global Logistics

Every SDV541-S33/PRP S3 unit supplied through siemensplc.com undergoes a structured pre-shipment verification process. Units are sourced from authorized Yokogawa distribution channels or verified OEM-surplus stock with full traceability documentation. Prior to dispatch, each module is subjected to visual inspection for physical integrity, label and serial number verification against Yokogawa production records, and a functional power-on test confirming backplane communication and channel output response.

Packaging follows ESD-safe handling protocols: anti-static bag, foam-lined inner carton, and double-wall outer box rated for international air freight handling. Original Yokogawa packaging is preserved where available. A certificate of conformance (CoC) and packing list are included with every shipment. Extended functional test reports on a CENTUM VP test bench are available for volume orders upon request.

Shipping from Xiamen, China: Xiamen Gaoqi International Airport and Xiamen Port provide direct freight connections to major industrial hubs across Southeast Asia, the Middle East, Europe, and the Americas. Standard shipments move via DHL Express or FedEx International Priority with typical transit times of 3–5 business days to most destinations. Sea freight LCL and FCL options are available for bulk orders. All export documentation — commercial invoice, packing list, certificate of origin, and customs declaration — is prepared in compliance with Xiamen Customs regulations, ensuring smooth clearance at destination ports. Multi-currency payment is supported: USD, EUR, HKD, and CNY via T/T bank transfer, L/C, and major credit cards.
