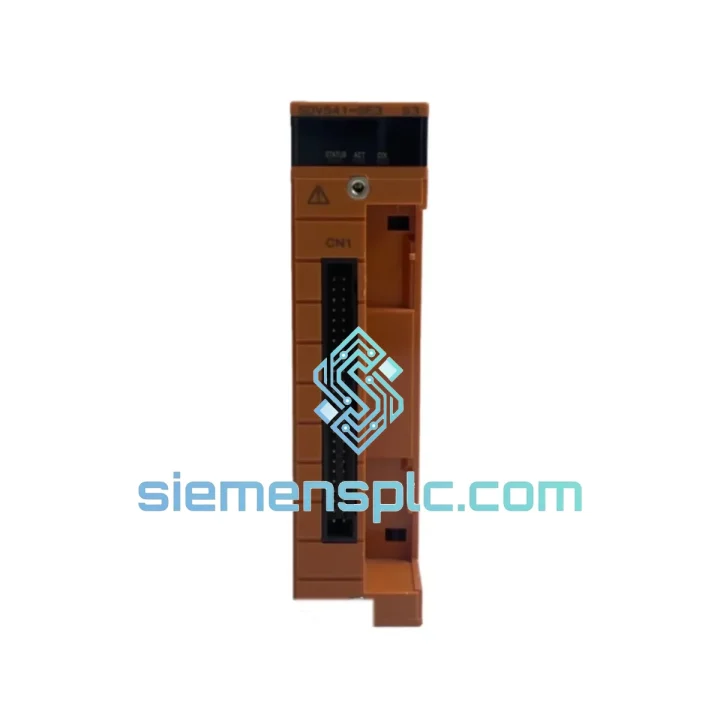

YOKOGAWA SDV541-SE3 DCS Digital Output Module

SDV541-SE3 Replacement In-Stock: Your CENTUM VP Line Stops Costing You $10,000 Per Hour — We Ship Today

The alarm is live. Your CENTUM VP field control station has dropped the SDV541-SE3 digital output module. Solenoid valves are locked, actuators are unresponsive, and your shift supervisor is already on the phone. You’ve been through the diagnostics — the module is gone. What you need right now is not a datasheet. You need a verified, boxed, export-ready unit moving toward your site before the next shift change.

siemensplc.com maintains warehouse stock of the YOKOGAWA SDV541-SE3 in Xiamen, China. Orders confirmed before 14:00 CST ship same day via DHL Express or FedEx International Priority. We have supplied this exact module to process plants across Southeast Asia, the Middle East, Europe, and South America. The part you receive has been physically inspected — connector integrity, PCB condition, latch mechanism — before it goes into the carton. No surprises on arrival.

Unplanned DCS downtime at a mid-scale refinery or chemical plant runs $50,000–$200,000 per hour in lost throughput, emergency labor, and regulatory exposure. A replacement module that ships today and arrives in 48 hours costs a fraction of one additional hour offline. The math is not complicated.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on CENTUM VP systems produce a short list of failure patterns for the SDV541-SE3. Here is what you are most likely dealing with, and what to watch for during replacement.

Failure Pattern 1 — ALM LED solid red, zero output response: The module is receiving FCS commands but the internal output transistors are not switching. This is a hard driver failure. There is no field repair path. Pull the module, confirm the replacement suffix is SE3, and proceed with the swap procedure below.

Failure Pattern 2 — Specific channels chattering or stuck: Intermittent output behavior on isolated channels usually points to moisture ingress at the terminal block or a degraded optical isolator on that channel. Reseat the terminal block first. If the fault follows the same channel number on a new module, the problem is in the field wiring — check for leakage current from adjacent circuits or a damaged cable shield.

Failure Pattern 3 — “IOM Fault” after hot-swap, module not recognized: CENTUM VP supports online module replacement, but the FCS will reject a module with a mismatched suffix. SDV541-SE3 is not a drop-in substitute for SDV541-SE1 or SDV541-SE2 without rebuilding the I/O module definition in the FCS engineering environment. Verify the suffix on the physical label before the module leaves your stores.

Failure Pattern 4 — Outputs stuck ON after replacement: Check the fail-safe output configuration in the CENTUM VP I/O module definition. If the fail-safe mode is set to “hold last value” and the last commanded state before the fault was ON, the replacement module will initialize to that state. Navigate to the FCS hardware builder, locate the SDV541 slot definition, and verify the fail-safe output setting matches your process safety requirements.

Failure Pattern 5 — Gradual output degradation over months: If post-mortem inspection shows thermal discoloration on the output transistor area, the field-side load current exceeded the per-channel rating. Verify actual solenoid valve or actuator current draw against the SDV541 datasheet limits. Overloaded channels degrade over 6–18 months before hard failure — the module that just died may not be the last one.

Online Replacement Procedure — CENTUM VP:

1. Confirm replacement module label reads exactly SDV541-SE3. Check the suffix physically — do not rely on the stores system label alone.
2. In CENTUM VP HIS, open the FCS hardware view. Place the target slot in IOM Bypass mode, or manually hold all associated regulatory control blocks to prevent process upsets during the swap.
3. Discharge residual field voltage on the terminal block before disconnecting. Solenoid valve circuits with capacitive loads can retain charge after the module output drops.
4. Extract the faulty module. Inspect the slot connector on the I/O nest for bent pins or contamination before inserting the replacement.
5. Seat the replacement module firmly until the front latch engages with an audible click. A partial seat produces intermittent bus communication errors that present as firmware faults — a common source of unnecessary second replacements.
6. Observe the LED initialization sequence. The SDV541-SE3 runs a self-test on power-up lasting approximately 3–5 seconds. Steady green indicates the module has passed self-test and established communication with the FCS.
7. No address configuration is required. The CENTUM VP I/O nest uses slot-based auto-addressing. The FCS identifies the module by physical slot position — no DIP switches, no jumpers.
8. Release manual holds on outputs one channel at a time. Verify field device response — solenoid valve actuation, actuator position feedback — before returning each loop to automatic control.
9. Clear the IOM fault alarm in the FCS alarm management system after confirming all channels are healthy.

Reliability in Harsh Conditions

The SDV541-SE3 was engineered for process plant environments, not laboratory conditions. YOKOGAWA’s CENTUM VP I/O series is qualified for continuous operation across the full range of conditions found in refineries, chemical complexes, LNG terminals, and power generation facilities.

The module’s conformal-coated PCB resists airborne corrosives — hydrogen sulfide in upstream oil and gas, chlorine derivatives in chemical processing, salt-laden air in coastal and offshore installations. The optical isolation barrier between the field side and the system bus prevents inductive transients from solenoid valves and motor contactors from propagating into FCS memory or communication infrastructure. This is not a theoretical protection — it is the reason CENTUM VP systems accumulate 15–20 years of continuous service in environments that destroy lesser hardware within two or three years.

Mechanical vibration from compressors, pumps, and rotating equipment transmitted through structural steel to marshalling cabinets is a chronic stress source for I/O modules. YOKOGAWA’s manufacturing process includes vibration and shock testing per IEC 60068-2 standards. The SDV541-SE3’s PCB layout and component mounting are designed to maintain electrical integrity under continuous low-frequency vibration — the kind that loosens solder joints and fatigues connector contacts in modules not built to this standard.

Every unit dispatched from siemensplc.com is inspected before packaging: connector pin alignment, PCB surface condition, front panel latch function, and label legibility. Modules showing evidence of prior thermal stress, corrosion, or physical damage are removed from stock. What ships is what goes into service.

Global Express Logistics

Our dispatch warehouse is in Xiamen, Fujian Province — one of China’s primary international cargo hubs with direct DHL Express and FedEx International Priority connections to over 220 countries and territories. The logistics chain for an urgent SDV541-SE3 order works as follows:

• Order confirmed before 14:00 CST: Same-day packaging, ESD protection, and carrier handover. DHL or FedEx pickup from our facility by 17:00 CST.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10 for assembled control modules) prepared in parallel with packaging. Properly documented industrial components clear Chinese export customs without delay.
• Typical transit times: Southeast Asia 1–2 business days; Middle East 2–3 days; Europe 3–4 days; North and South America 3–5 days. Both DHL Express and FedEx International Priority publish money-back guarantees on their stated transit times.
• Shipment tracking: AWB number provided within 2 hours of carrier pickup. Tracking link delivered to your email and WhatsApp contact simultaneously.
• Import documentation support: We provide all standard customs clearance documentation. For destinations with specific import licensing requirements for industrial electronics, we advise before shipment — not after.
• Packaging standard: Anti-static ESD bag, foam-lined rigid outer carton, fragile and orientation labeling. The module arrives at your site in the same physical condition it left our warehouse.

If your facility is in a location where standard express routing faces complications — remote offshore platforms, landlocked industrial zones, destinations with restricted carrier access — contact us before placing the order. We have routed shipments through freight forwarders with local last-mile capability in challenging destinations across Africa, Central Asia, and the Pacific.
