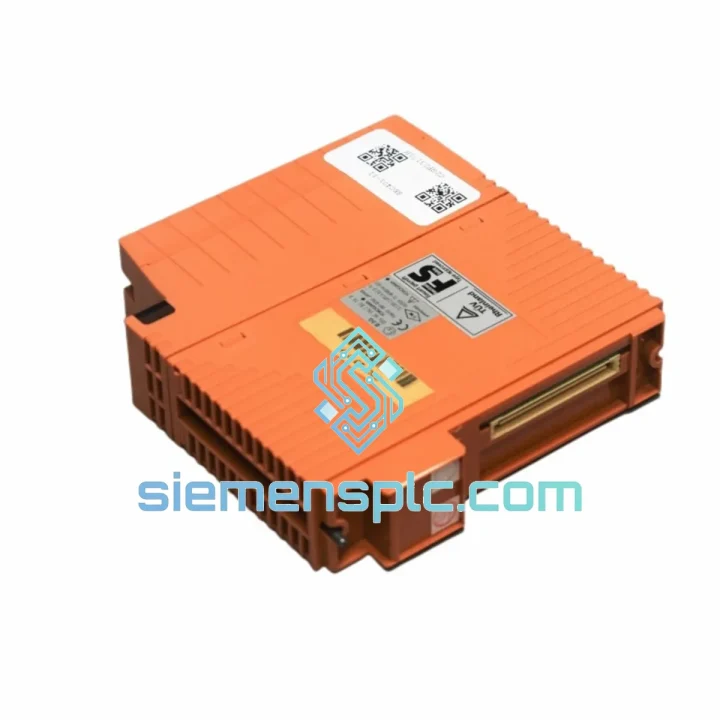

YOKOGAWA SEC401-51 S3 DCS Bus Coupler

SEC401-51 S3 Down? Every Minute of Downtime Costs You — Get Back Online Fast

Your CENTUM CS/VP DCS just lost its ESB bus coupler. The FCS is blind to every downstream I/O node. Alarms are cascading. Production is at a standstill. You don’t need a sales pitch — you need a replacement YOKOGAWA SEC401-51 S3 on a plane today.

We stock the SEC401-51 S3 in Xiamen, China. Verified hardware revision S3. Functional test completed before dispatch. DHL/FedEx express available for same-day or next-business-day cutoff. This is the module. This is the source. Let’s get your plant back up.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Symptom Recognition

Before condemning the SEC401-51 S3, rule out upstream causes. A failed bus coupler typically presents as: all I/O modules in the affected nest going offline simultaneously, FCS generating IOM communication error or ESB timeout alarms, and the coupler’s RUN LED extinguished or flashing red. If only individual I/O modules are faulted, the coupler itself may be healthy — check the I/O module seating and backplane connector pins first.

Pre-Replacement Checklist

• Confirm the hardware revision label on the failed unit reads S3. Mixing S2 and S3 revisions in a redundant pair is not supported and will cause coupler arbitration faults.
• Document the current FCS firmware version (visible in CENTUM VP Engineering Environment under System View → FCS Properties). S3 hardware is validated against CENTUM VP R5.x and R6.x. If your site runs R4.x or earlier, contact YOKOGAWA engineering before swapping.
• If the installation uses dual-redundant bus couplers, identify which coupler is primary (RUN LED solid green) before pulling the faulty unit. The secondary will assume primary role automatically — verify this switchover completes cleanly before proceeding.
• Check the I/O nest slot assignment. The SEC401-51 S3 occupies a dedicated coupler slot (typically slot 0 or the leftmost position in the nest). Do not attempt to seat it in an I/O module slot.

Replacement Procedure (Field Summary)

• Step 1 — Isolate: In CENTUM VP Engineering Environment, place the affected I/O nest into maintenance mode to suppress alarm floods during the swap. Notify the control room operator.
• Step 2 — Remove: Loosen the two captive screws on the SEC401-51 S3 front panel. Pull the module straight out from the backplane. Avoid rocking — the ESB connector is a high-density edge connector and lateral force damages pins.
• Step 3 — Inspect: Examine the backplane connector on the nest for bent pins or contamination before inserting the replacement. A damaged backplane connector will kill the new module within hours.
• Step 4 — Insert: Seat the replacement SEC401-51 S3 firmly until both captive screws engage. Torque to finger-tight plus a quarter turn — do not overtighten.
• Step 5 — Verify: Power-on sequence: the module’s INIT LED will flash during self-test (approximately 30–60 seconds), then the RUN LED should illuminate solid green. If the ERR LED latches on, check the FCS configuration for node address conflicts.
• Step 6 — Restore: Take the I/O nest out of maintenance mode. Confirm all downstream I/O modules return to normal scan status in the FCS. Verify process values are reading correctly before releasing control to the operator.

Common Post-Swap Issues

• ERR LED on after insertion: Node address conflict. The SEC401-51 S3 uses a rotary address switch on the rear of the module (accessible from the backplane side). Confirm the switch position matches the original module’s address setting — this is documented in your CENTUM system engineering drawings.
• I/O modules not recovering after coupler swap: Some CENTUM VP configurations require an FCS download or I/O nest re-initialization after a coupler replacement. Execute a Download to FCS from Engineering Environment if I/O modules remain in fault state after 2 minutes.
• Redundant coupler not synchronizing: Verify both couplers are the same hardware revision (S3/S3). A revision mismatch will prevent synchronization and leave the system in simplex mode without alarming in some firmware versions.

Reliability in Harsh Conditions

The SEC401-51 S3 is not a commercial-grade component dressed up in an industrial enclosure. YOKOGAWA designed this module for continuous operation inside DCS cabinets in refineries, offshore platforms, and chemical plants — environments where ambient temperatures swing, humidity condenses on cold surfaces during seasonal transitions, and variable-speed drives inject conducted noise onto the 24 VDC bus.

The module’s PCB uses conformal coating on critical signal traces, providing a barrier against moisture ingress and corrosive atmospheric contaminants common in coastal and chemical plant environments. The ESB connector interface is gold-plated to resist oxidation-induced contact resistance increases over multi-year service intervals. Vibration tolerance is validated to IEC 60068-2-6 test profiles, covering the 5–150 Hz range at 1g acceleration — sufficient for most pump-room and compressor-adjacent cabinet installations.

Thermal management is passive: the module relies on convective airflow within the I/O nest cabinet. Ensure cabinet cooling is functional and that the nest is not packed with blanking plates that restrict airflow. Operating the SEC401-51 S3 above 55°C ambient will accelerate electrolytic capacitor aging on the DC-DC converter section — the most common long-term failure mode on this module family.

Units shipped from our Xiamen facility are stored in climate-controlled conditions at 20–25°C with humidity maintained below 60% RH. Each unit is bagged in anti-static ESD packaging with desiccant. Long-term storage units are re-inspected and re-bagged every 12 months.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province, China — a major international cargo gateway with direct DHL and FedEx express lanes to Europe, the Middle East, Southeast Asia, and the Americas.

• Same-Day Dispatch: Orders confirmed and paid before 14:00 CST are dispatched the same business day via DHL Express or FedEx International Priority.
• Transit Times (Estimated):
  • Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
  • Middle East (UAE, Saudi Arabia, Kuwait): 3–4 business days
  • Europe (Germany, Netherlands, UK): 4–5 business days
  • Americas (USA, Canada, Brazil): 5–7 business days
• Export Documentation: Commercial invoice, packing list, and Certificate of Origin (COO) are prepared for every international shipment. HS Code 8537.10 applies to this module category for customs classification.
• ESD-Safe Packaging: The SEC401-51 S3 is packed in a conductive anti-static bag, surrounded by 30mm closed-cell foam, inside a double-wall corrugated carton. The carton is labeled with ESD and fragile handling markings.
• Tracking: AWB (Air Waybill) number is emailed within 2 hours of dispatch. Real-time tracking via DHL or FedEx portal.
• Emergency Freight: For genuine plant-down situations, contact us directly on WhatsApp for after-hours dispatch coordination and courier upgrade options.
