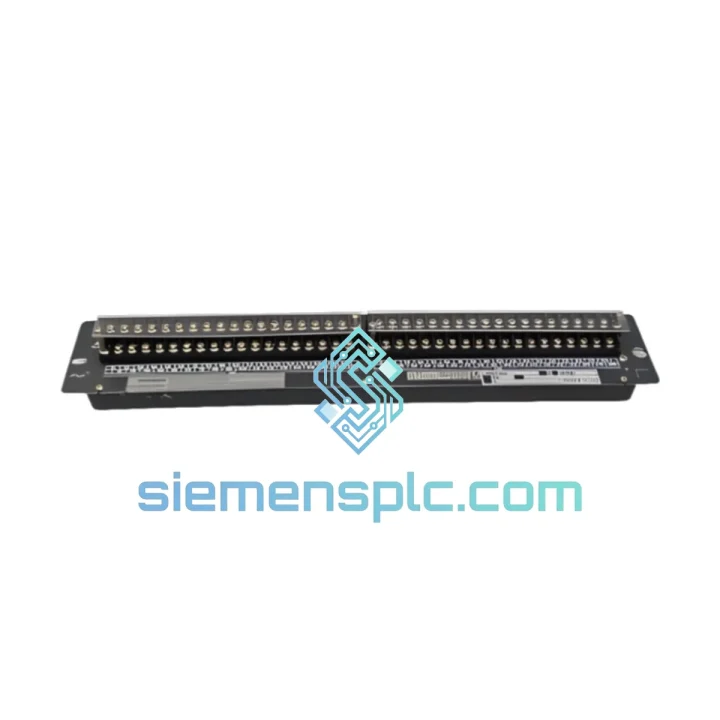

YOKOGAWA SRM53D Signal Processing Module – CENTUM VP Series

YOKOGAWA SRM53D: Signal Processing Module for CENTUM VP / CS 3000 Distributed Control Systems

The SRM53D occupies a well-defined functional position within YOKOGAWA’s CENTUM VP and CS 3000 DCS architectures: it serves as the dedicated signal processing card responsible for conditioning, scaling, and routing analog measurement data between field instruments and the Field Control Station (FCS). In a typical process loop, raw 4–20 mA or thermocouple signals arrive at the I/O terminal assembly, pass through the SRM53D’s internal signal conditioning chain, and emerge as normalized engineering-unit values that the FCS CPU can act upon within its deterministic scan cycle. Without a correctly functioning SRM53D, the FCS loses visibility into the physical process — making this module a single-point dependency for loop integrity.

Unlike generic signal conditioners, the SRM53D is firmware-coupled to the CENTUM VP / CS 3000 backplane protocol. Its register map, diagnostic status words, and configuration parameters are managed entirely through YOKOGAWA’s CENTUM Engineering Environment (CEE), which means field replacement requires no external calibration equipment — the FCS downloads the stored tag configuration to the new module automatically upon hot insertion.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SRM53D’s internal architecture is structured around three discrete functional stages, each engineered to address a specific failure mode common in industrial signal chains.

Stage 1 — Input Multiplexing and Galvanic Isolation: Incoming field signals pass through an optocoupler-based isolation barrier rated at 500 V AC channel-to-bus. This barrier prevents ground loop currents — a persistent source of measurement offset in multi-drop 4–20 mA loops — from propagating into the backplane. The isolation topology uses a transformer-coupled DC/DC converter to power the field-side circuitry independently, eliminating the common-mode voltage path that would otherwise couple 50/60 Hz interference from motor drives and switchgear into the measurement chain.

Stage 2 — Sigma-Delta A/D Conversion: The module employs a sigma-delta (ΣΔ) analog-to-digital converter architecture rather than successive-approximation (SAR). The ΣΔ approach oversamples the input at a high clock rate and applies digital decimation filtering, which provides inherent rejection of power-line frequency interference (50 Hz / 60 Hz selectable notch) without requiring external anti-aliasing hardware. The effective resolution after decimation is 16 bits, yielding a measurement granularity of approximately 0.0015% of span — sufficient for precision flow and level applications where 4–20 mA transmitters are calibrated to ±0.05% accuracy.

Stage 3 — EMC Hardening and Backplane Protocol Engine: The SRM53D’s PCB layout follows YOKOGAWA’s internal EMC design rules: the analog ground plane is separated from the digital ground plane by a moat, with a single-point star connection at the A/D converter reference pin. Ferrite beads are placed on all backplane data lines to suppress high-frequency transients generated by adjacent modules switching their output relays. The backplane communication engine implements a token-passing protocol over the ESB bus, guaranteeing that the SRM53D’s data is read by the FCS CPU within a fixed, bounded latency — a prerequisite for deterministic control loop execution at scan rates down to 100 ms.

System Integration Benefits

• Zero-configuration hot replacement: The FCS automatically downloads the stored tag database to a newly inserted SRM53D within one scan cycle, eliminating the need for a laptop or handheld configurator during emergency replacement — a critical advantage in 24/7 continuous process plants.
• Deterministic scan-cycle participation: Because the SRM53D communicates over the ESB bus with a fixed token-passing schedule, its data latency is bounded and predictable. Control engineers can specify loop scan rates as fast as 100 ms with confidence that signal data will be current at each FCS execution cycle.
• Integrated self-diagnostics with FCS alarm propagation: The module continuously monitors its own A/D converter reference voltage, isolation barrier integrity, and backplane communication health. Any fault condition sets a status bit in the FCS alarm word, which propagates to the CENTUM VP HIS operator station as a hardware alarm — giving operators actionable fault information without requiring a physical inspection of the card cage.
• Thermocouple cold-junction compensation (CJC) on-board: An integrated precision thermistor at the terminal block measures ambient temperature and applies real-time CJC correction in firmware, removing the need for external CJC modules and reducing wiring complexity in thermocouple-dense applications such as furnace temperature profiling.
• Channel-level input range configurability: Each channel’s input type and engineering-unit range is stored in the FCS tag database and applied to the SRM53D at runtime. Changing a transmitter from 4–20 mA to thermocouple input requires only a CEE configuration change — no hardware jumpers or DIP switches — reducing the risk of misconfiguration during maintenance.
• Redundancy-ready architecture: The SRM53D is compatible with YOKOGAWA’s dual-redundant FCS configurations. In a redundant pair, both primary and secondary FCS units read the SRM53D simultaneously; on primary FCS failure, the secondary assumes control without any gap in signal acquisition, maintaining bumpless transfer for all loops served by this module.
• Reduced panel wiring density: Multi-channel signal processing on a single card reduces the number of discrete signal conditioners, terminal blocks, and inter-panel cables required in a marshalling cabinet. A single SRM53D replaces what would otherwise require multiple standalone DIN-rail conditioners, lowering both installation cost and potential failure points.
• Long-term platform continuity: YOKOGAWA’s CENTUM VP platform maintains backward compatibility with CS 3000 hardware, meaning SRM53D modules procured today remain usable across platform migration projects — protecting capital investment in installed I/O infrastructure.

Quality Assurance & Global Logistics

Every SRM53D unit dispatched from our Xiamen, China facility is a genuine YOKOGAWA-manufactured component procured through verified industrial supply channels. Prior to shipment, each module undergoes a structured inspection sequence: visual examination of PCB, connector pins, and label authenticity; power-on functional verification against YOKOGAWA factory acceptance criteria; and ESD-safe packaging in anti-static foam-lined cartons with desiccant sachets to protect against humidity during transit.

Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. DOA (Dead on Arrival) units reported within 7 days of confirmed delivery are eligible for priority replacement or full refund, subject to our returns policy.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UPS — with typical transit times of 3–5 business days to Europe, 2–4 days to Southeast Asia, and 4–7 days to the Americas. For bulk orders, sea freight consolidation is available with full export documentation: commercial invoice, packing list, certificate of origin, and HS Code 8537.10 customs declaration. We provide proactive shipment tracking and customs clearance support for all destinations.
