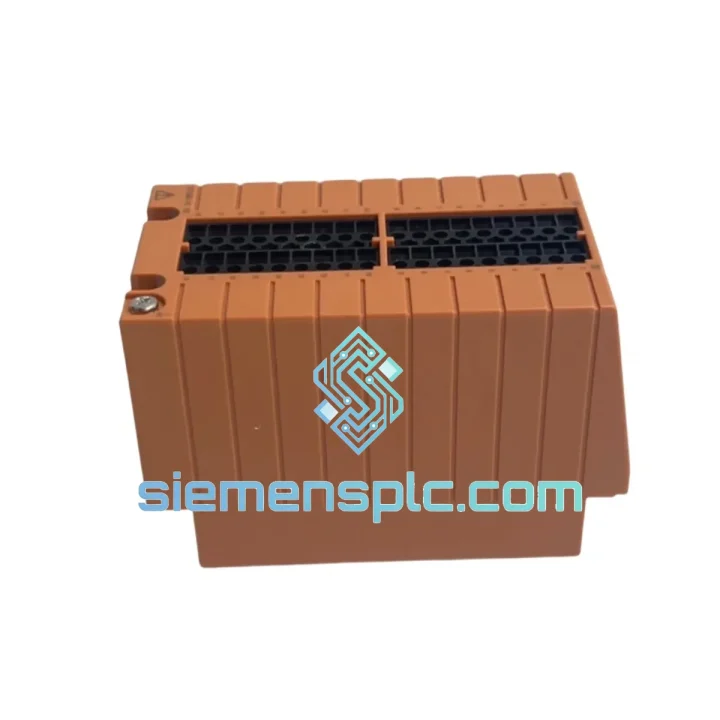

Yokogawa STB4D-10 S2 Safety Terminal Block

STB4D-10 S2 Down? Every Minute of Downtime Has a Price Tag — We Ship Today

Your ProSafe-RS or CENTUM VP system just threw a fault. The STB4D-10 S2 terminal block is the culprit. Your safety loop is open, your operators are blind, and your plant manager is already on the phone. This is not the moment for a 6-week OEM lead time. We stock the Yokogawa STB4D-10 S2 in Xiamen and can have it moving toward your facility within hours of order confirmation — DHL Express, FedEx Priority, or whatever gets it there fastest.

The STB4D-10 S2 is a dual-redundant digital I/O terminal block within Yokogawa’s STB (Safety Terminal Block) series, purpose-built for IEC 61511 SIL 2/3 safety instrumented systems. It sits at the marshalling layer between field instruments and the ProSafe-RS safety controller, handling discrete digital signals with hardware-level redundancy. When one channel path degrades, the second path holds the loop — but when the terminal block itself fails, there is no fallback. Replacement speed is everything.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for STB4D-10 S2:

• Fault code IOM-E01 / IOM-E03 on ProSafe-RS HIS: Points to terminal block communication loss. Before condemning the module, check the ESB bus coupler seating and the ribbon cable connector on the back of the STB block — corrosion on the gold contacts is a frequent culprit in humid coastal environments.
• Intermittent DI channel dropout (one side only): Classic symptom of a degraded redundant path. The system may still be running on the surviving channel, but you are now operating without redundancy. Do not wait for a full failure — replace immediately.
• DO channel stuck-on or stuck-off after lightning event: Transient overvoltage can latch the output driver. A power cycle of the I/O station alone will not clear it. The terminal block must be swapped.

Replacement procedure — field notes:

• Confirm the ProSafe-RS controller is in SAFE state or that the affected loop has been bypassed per your MOC procedure before touching the terminal block. Do not hot-swap a live SIL loop without authorization.
• The STB4D-10 S2 uses a tool-free latch mechanism on the DIN rail. Press the orange release tab downward while pulling the module face toward you. Do not pry from the wiring side — you will crack the housing.
• Before inserting the replacement unit, inspect the backplane connector pins on the base unit for bent contacts. A bent pin is the number-one cause of “new module, same fault” callbacks.
• The STB4D-10 S2 does not require manual address configuration — it inherits its slot address from the physical position on the ESB bus. No DIP switches, no rotary encoders. Seat it, latch it, power up.
• After insertion, the ProSafe-RS controller will perform an automatic self-test on the new module. Allow 30–60 seconds for the IOM status LED to transition from amber to solid green before clearing the fault in the HIS. If it stays amber, check firmware revision compatibility — the STB4D-10 S2 requires ProSafe-RS R2.02.00 or later.
• Firmware mismatch will not prevent the module from seating, but it will generate a persistent IOM-W07 warning. Upgrade the ProSafe-RS controller firmware before the next planned shutdown if you are running an older revision.

Reliability in Harsh Conditions

The STB4D-10 S2 was not designed for a climate-controlled server room. It was designed for the marshalling cabinets of offshore platforms in the South China Sea, petrochemical complexes in the Middle East, and pulp mills in Scandinavia — environments where temperature swings between -10°C and +60°C are routine, where salt-laden air attacks every exposed contact, and where vibration from rotating machinery never fully stops.

Yokogawa’s STB series undergoes qualification testing that includes 2G continuous sinusoidal vibration across the 10–150 Hz range, thermal cycling across the full operating envelope, and 95% relative humidity non-condensing exposure. The dual-redundant architecture means that even if one signal path begins to degrade under environmental stress, the system continues to operate on the healthy path — giving maintenance teams a window to plan a controlled replacement rather than responding to an emergency shutdown.

The conformal coating on the PCB provides an additional barrier against condensation and airborne contaminants. In our pre-shipment inspection, we verify that the coating is intact and that there is no evidence of prior moisture ingress, flux residue from rework, or mechanical stress on the solder joints. Units that do not pass visual inspection are quarantined — they do not ship.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL, FedEx, and UPS gateway access. Here is how a typical urgent order moves:

• Order confirmed before 15:00 CST: Same-day packaging and handoff to carrier. DHL Express tracking number issued by 18:00 CST.
• Transit to Southeast Asia: 1–2 business days via DHL Express Worldwide.
• Transit to Middle East / Europe: 3–5 business days via DHL Express or FedEx International Priority.
• Transit to North America: 3–5 business days via FedEx International Priority or UPS Worldwide Express.
• Customs documentation: Commercial invoice, packing list, and HS code declaration prepared for every shipment. We have experience clearing industrial automation components through customs in over 40 countries. If your procurement team needs a specific document format, tell us before we ship.
• Dangerous goods: The STB4D-10 S2 contains no lithium batteries and is not classified as dangerous goods under IATA regulations. No special handling surcharges apply.

For orders requiring delivery confirmation before a specific maintenance window, contact us with your deadline. We will select the carrier and service level that gives you the highest probability of on-time arrival and provide a written commitment.
