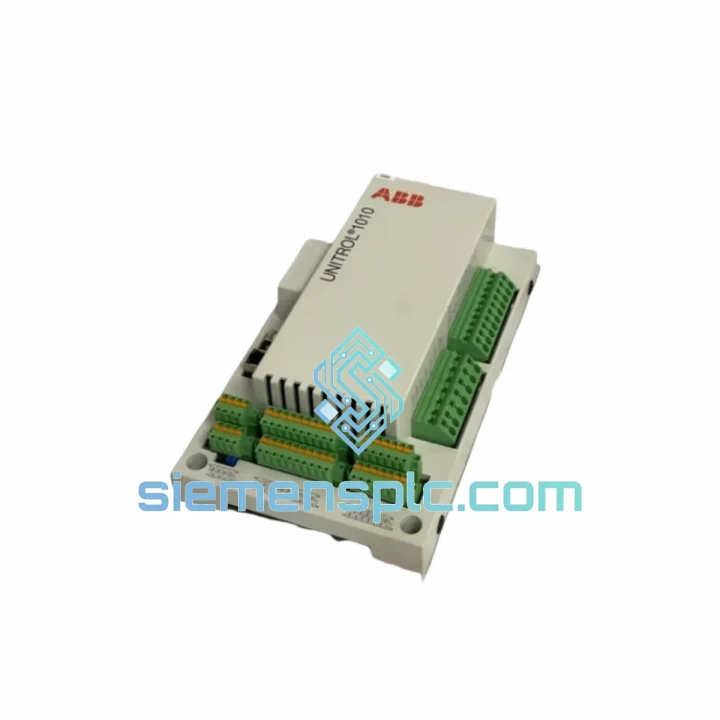

ABB 0121A-Z-V1 3BHE035301R1002 Excitation Control Module

ABB 0121A-Z,V1 / 3BHE035301R1002 – Stop the Bleeding. Every Hour of Generator Downtime Costs You.

Your excitation system just tripped. The generator is offline. Production is halted. You’ve already called the OEM and they quoted you 8–12 weeks. That’s not an option. We stock the ABB 0121A-Z,V1 (3BHE035301R1002) UNITROL AVR excitation control module and ship same-day from Xiamen. This is the exact module — not a substitute, not a compatible alternative. The real part, verified, tested, and ready to move.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor dealing with excitation faults teaches you one thing: most field engineers waste 2–3 hours chasing the wrong root cause before they even touch the module. Here’s what actually matters when you’re standing in front of a tripped UNITROL system with a replacement 0121A-Z,V1 in your hand.

Common Fault Codes That Point to This Module:

• F1401 / F1402 – Excitation Regulation Fault: The AVR board has lost its reference signal or internal regulation loop. If the thyristor bridge checks out and the field current feedback wiring is intact, this board is your culprit.
• F2210 – Communication Loss to AVR Module: The backplane bus between the master controller and this excitation board has dropped. Before condemning the module, reseat the card and check the backplane connector pins for oxidation — especially in coastal or high-humidity plants.
• F3301 – Field Overcurrent Trip (Spurious): Occasionally caused by a degraded current measurement circuit on the 0121A-Z,V1 board itself, not an actual overcurrent event. If the trip is non-repeatable and field current logs look clean, swap the board.
• Blank HMI / No AVR Response After Power Cycle: The module’s internal EEPROM may have corrupted during an uncontrolled shutdown. A replacement board will come with factory default parameters — see firmware note below.

Replacement Procedure – Critical Steps:

1. De-energize and isolate. Lock out the excitation transformer and confirm zero voltage on the field winding before touching anything. This is not optional.
2. Document your current parameter set. Before pulling the old board, connect ABB’s UNITROL configuration tool (or CMT software) and export the full parameter backup. The replacement module ships with factory defaults — you will need to reload your site-specific tuning: voltage setpoint, droop settings, PSS parameters, and limiter thresholds.
3. Check hardware revision compatibility. The V1 designation on 3BHE035301R1002 must match your system’s expected hardware revision. Mixing V1 with a V2-expecting controller firmware will cause a hardware mismatch fault on startup. Confirm your UNITROL controller firmware version before installing.
4. Firmware upload. After physical installation, the system may prompt for a firmware download to the new board. Have the correct firmware file ready — obtain it from ABB’s service portal or contact us; we can advise on the correct version for your system revision.
5. Recommission and verify. Run the AVR in manual (field current) mode first before switching to automatic voltage regulation. Verify the voltage ramp rate, ceiling current, and underexcitation limiter response before returning the generator to the grid.
6. Log the swap. Record the old board’s serial number, fault history, and replacement date in your plant maintenance system. ABB service engineers will ask for this if you ever need warranty or technical support.

Reliability in Harsh Conditions

Power plants are not clean rooms. The 0121A-Z,V1 board is designed to operate continuously in environments that would kill consumer-grade electronics inside a week. The UNITROL platform was engineered for exactly this: hydroelectric stations with constant humidity and vibration from turbine draft tubes, thermal plants where ambient temperatures in the excitation cubicle routinely hit 50°C, and offshore platforms where salt-laden air attacks every exposed connector.

The board uses conformal-coated PCB construction to resist moisture ingress and condensation cycling. The backplane connectors are gold-plated to maintain contact integrity through thousands of thermal expansion and contraction cycles. Vibration tolerance is validated to IEC 60068-2-6 test profiles — the same standard used for railway and marine electronics. Electrostatic discharge protection on all I/O lines meets IEC 61000-4-2 Level 4, which matters in environments where large rotating machines generate significant EMI.

We have supplied this module to plants operating in the Yangtze River basin (high humidity, seasonal flooding risk), Middle Eastern gas turbine stations (55°C+ ambient, sand ingress), and North Sea offshore platforms (salt spray, constant vibration). In every case, the module performed within ABB’s published MTBF specifications when installed correctly and operated within rated parameters.

If your installation environment is particularly aggressive — high vibration, extreme temperature swings, or corrosive atmosphere — contact us before ordering. We can advise on additional protective measures and confirm whether your specific site conditions require any special handling or configuration of the replacement unit.

Global Express Logistics

Downtime doesn’t wait for business hours, and neither do we. Our Xiamen warehouse operates with same-day dispatch for orders confirmed before 15:00 CST. Here’s exactly how your module gets from our shelf to your plant floor:

• Order Confirmation → Warehouse Pick: Within 2 hours of payment confirmation, the unit is pulled from stock, inspected against the order, and staged for packing. We photograph every unit before it leaves — you receive the photos before the courier collects.
• Export Documentation: Commercial invoice, packing list, certificate of origin (China), and HS code declaration (HS 8537.10 or 8543.70 depending on destination customs requirements) are prepared simultaneously. For destinations requiring an end-user certificate or import license, we flag this immediately — not at the airport.
• DHL Express / FedEx International Priority: Standard routing for urgent shipments. Transit times: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, Americas 4–5 days. We book with account-level priority status — your shipment does not sit in a queue.
• Tracking & Customs Clearance Support: You receive the AWB number within 4 hours of dispatch. Our logistics team monitors the shipment actively and intervenes with the carrier if any customs hold or routing exception occurs. We have cleared modules into India, Brazil, Saudi Arabia, and Nigeria without delays — we know the paperwork requirements for each jurisdiction.
• Emergency Air Freight: For truly critical situations — plant offline, grid stability at risk — we can arrange next-flight-out courier service from Xiamen Gaoqi International Airport. Contact us directly on WhatsApp for this option; it bypasses the standard booking process.
