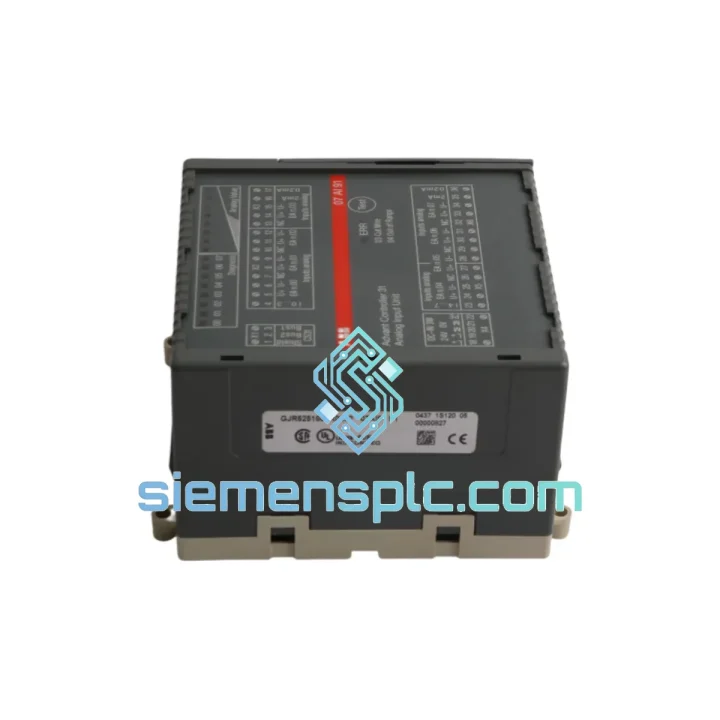

ABB 07AI91 GJR5251600R0202 Analog Input Module – Advant Controller AC31

ABB 07AI91 GJR5251600R0202 — 8-Channel Analog Input Module for Advant Controller AC31 Process Automation

The ABB 07AI91 (part number GJR5251600R0202) is a dedicated analog input module engineered for the Advant Controller AC31 distributed control architecture. Positioned as the signal acquisition front-end within the AC31 I/O subsystem, this module accepts up to eight independent analog process signals — either 4–20 mA current loops or 0–10 V voltage inputs — and converts them to 12-bit digital values for deterministic processing by the AC31 CPU. Its role in the control loop is foundational: without accurate, low-latency analog acquisition, closed-loop PID regulation, cascade control, and process trending all degrade in fidelity.

In a typical AC31 installation, the 07AI91 occupies a standard backplane slot and communicates with the controller CPU via the AC31 parallel backplane bus. Cycle-synchronous data transfer ensures that each scan cycle delivers a fresh, coherent snapshot of all eight input channels to the application program — a prerequisite for tight regulatory control in continuous process industries such as chemical, pharmaceutical, and power generation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 07AI91 implements a multiplexed successive-approximation register (SAR) ADC architecture. A single high-linearity SAR converter is shared across all eight channels via an analog multiplexer, sequencing through each channel within one CPU scan period. This design choice prioritizes cost-efficiency and board density over simultaneous sampling — an acceptable trade-off for process control applications where inter-channel phase coherence is not a hard requirement.

Optical Isolation Architecture: Each channel’s field-side signal path is galvanically separated from the backplane logic domain through an optocoupler barrier rated for at least 500 V DC isolation. This prevents ground loop currents — a persistent problem in large industrial installations where field instruments and control panels share different earthing potentials — from corrupting the ADC reference or injecting noise into the digital bus. The isolation barrier also provides a degree of protection against transient overvoltage events originating from field wiring.

EMC Design: The module’s PCB layout follows ABB’s standard EMC guidelines for the AC31 family: signal traces are routed with controlled impedance, analog and digital ground planes are separated and joined at a single star point, and bypass capacitors are placed at each IC power pin. The metal front panel and rack enclosure provide shielding continuity, attenuating radiated emissions and improving immunity to conducted interference per EN 61000-4 test levels applicable to industrial environments.

Burden Resistor Integration: For 4–20 mA current loop inputs, the module integrates a precision burden resistor (typically 250 Ω) on the field-side input, converting the loop current to a proportional voltage (1–5 V) before the multiplexer stage. This eliminates the need for external shunt resistors in the field junction box, simplifying wiring and reducing potential sources of measurement error introduced by resistor tolerance mismatch.

Backplane Bus Timing: The 07AI91 responds to AC31 CPU I/O read cycles with a fixed propagation delay, ensuring that the CPU’s process image input (PII) table is updated with a consistent, bounded latency. This determinism is essential for scan-synchronous control algorithms where the relationship between input sampling and output actuation must remain stable across all operating conditions.

System Integration Benefits

• Zero-configuration slot assignment: The 07AI91 is recognized automatically by the AC31 CPU upon rack power-up. The controller’s configuration software (ABB Advant Builder / 907 PC) reads the module’s hardware ID from the backplane and maps it to the corresponding I/O address range without manual DIP switch settings, reducing commissioning time and eliminating address conflict errors.
• Deterministic scan-cycle integration: Analog values are latched at the start of each CPU scan and held stable throughout the program execution cycle. This prevents mid-scan value changes from causing inconsistent control decisions — a critical property for PID loops where derivative action is sensitive to input jitter.
• Per-channel signal type flexibility: Each of the eight channels can be independently configured for either current (4–20 mA) or voltage (0–10 V) input via software parameter assignment in the AC31 configuration tool. This eliminates the need to stock separate current-only and voltage-only modules for mixed-signal installations.
• Integrated wire-break detection: In 4–20 mA mode, the module detects open-circuit conditions (loop current below approximately 2 mA) and sets a diagnostic flag in the CPU’s status word. The application program can read this flag and trigger an alarm or safe-state output without requiring external loop monitoring hardware.
• Diagnostic transparency: Module-level fault status is reported to the AC31 CPU via the backplane status register. Faults including over-range, under-range, and hardware failure are individually flagged, enabling the SCADA or HMI layer to display channel-specific diagnostics rather than a generic module fault — reducing mean time to repair (MTTR) in production environments.
• Consistent thermal performance: The module’s power dissipation is specified at ≤ 4 W across all eight active channels. Within a fully populated AC31 rack, this predictable thermal load simplifies enclosure ventilation calculations and ensures that the rack’s thermal budget is not exceeded during summer ambient conditions in non-air-conditioned plant rooms.
• Long-term spare parts availability: The GJR5251600R0202 part number is a stable, long-lifecycle component within the AC31 family. Procurement teams can establish multi-year spare parts agreements with confidence that the module’s electrical and mechanical interface will not change between production batches.
• Backward compatibility with earlier revisions: The R0202 hardware revision is functionally interchangeable with the earlier R0101 revision in all standard AC31 rack configurations. No firmware update or configuration file modification is required when substituting one revision for the other, simplifying maintenance stock management.

Quality Assurance & Global Logistics

Every ABB 07AI91 GJR5251600R0202 unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Each module undergoes power-on functional verification, channel-by-channel analog signal injection testing across the full 4–20 mA and 0–10 V input ranges, and visual inspection for physical damage, connector integrity, and label legibility. Units that do not meet ABB’s original factory acceptance criteria are quarantined and not offered for sale.

Packaging follows ESD-safe handling standards: each module is placed in an anti-static poly bag, cushioned with conductive foam, and enclosed in a rigid corrugated carton rated for international air freight handling. For multi-unit orders, individual cartons are consolidated into a master shipping box with void fill to prevent movement during transit.

Logistics options from Xiamen include DHL Express (2–4 business days to most destinations), FedEx International Priority (3–5 business days), and sea freight LCL consolidation for large-volume orders where lead time permits. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country customs requirements. A 12-month replacement warranty covers all shipped units against manufacturing defects and functional failure under normal operating conditions.
