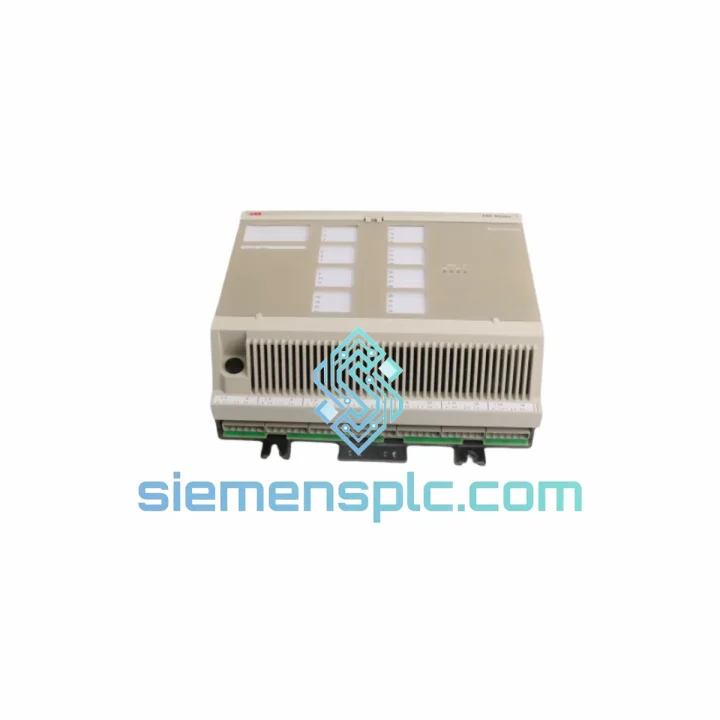

ABB DSAX452 Analog I/O Module – Advant Controller 450 Series

ABB DSAX452 – Analog Signal Interface Card for Advant Controller 450 Distributed Control Systems

The DSAX452 occupies a structurally non-negotiable position within the ABB Advant Controller 450 (AC450) I/O subsystem. In any continuous-process installation — whether a hydrocarbon refinery, a kraft pulp digester, or a combined-cycle power plant — the analog I/O layer is the sole conduit through which the controller perceives and acts upon the physical process. The DSAX452 performs this function: it receives 4–20 mA and voltage signals from field transmitters, conditions and digitizes them for the AC450 processor, and simultaneously converts digital setpoints back into analog output signals that drive control valves, variable-speed drives, and positioners. Loss of this module in a live control loop does not degrade performance — it eliminates it. That operational reality defines the engineering priority of maintaining verified spare inventory.

The AC450 platform was engineered by ABB for high-availability process environments where scan-cycle determinism and signal integrity are non-negotiable. The DSAX452 is the analog front-end of that architecture. It interfaces directly with the AC450 backplane bus, communicating with the DSPC-series processor modules via a synchronous parallel bus protocol that guarantees fixed-latency data transfer. This deterministic data path is what separates a purpose-built DCS I/O module from a generic analog acquisition card: the DSAX452 does not introduce variable latency into the control loop, which is a prerequisite for stable PID tuning in fast-responding processes such as steam pressure or flow control.

Procurement of genuine DSAX452 modules is a recurring operational requirement across the installed base of AC450 systems, which spans thousands of units across Europe, Asia-Pacific, and the Americas. The platform, while no longer in active volume production, remains under ABB’s extended lifecycle support program, and field replacements are driven by module aging, electrolytic capacitor degradation, and occasional surge damage from field wiring faults. siemensplc.com maintains sourced inventory of DSAX452 units and ships globally from Xiamen, China, with full export documentation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSAX452’s internal architecture reflects the design philosophy of late-1990s ABB DCS hardware: conservative component selection, generous derating margins, and a clear separation between the field-side and logic-side circuits. The following analysis addresses the principal hardware subsystems:

Galvanic Isolation Stage: Each analog channel passes through a dedicated optocoupler isolation barrier before reaching the A/D conversion stage. This architecture prevents ground loops — a chronic source of measurement error in industrial plants where field instruments, junction boxes, and control panels share multiple earthing points. The isolation barrier also limits the propagation of transient overvoltages from field wiring faults (e.g., cable insulation breakdown, lightning-induced surges on long cable runs) to the backplane bus and processor. The isolation withstand voltage is rated to IEC 61010-1 requirements for Category II measurement circuits.

A/D and D/A Conversion: The analog-to-digital conversion chain uses successive-approximation register (SAR) architecture, which provides a deterministic conversion time — a critical property for DCS applications where the I/O scan cycle must complete within a fixed window. SAR converters do not require a settling period proportional to input step size, unlike sigma-delta architectures, making them appropriate for multiplexed multi-channel acquisition where channels switch rapidly. The D/A output stage uses a buffered voltage-output DAC followed by a voltage-to-current converter for 4–20 mA drive, maintaining output accuracy across varying load impedances up to the rated compliance voltage.

EMC Design: The PCB layout employs a split ground plane strategy: the analog signal ground and the digital logic ground are separated and joined at a single star point adjacent to the power supply decoupling network. This prevents high-frequency switching noise from the backplane logic circuits from coupling into the analog signal paths. Ferrite bead filters are placed on the power supply rails feeding the analog section, and the field-side connector area includes transient voltage suppression (TVS) diodes on each signal line to clamp fast transients below the isolation barrier’s withstand threshold.

Watchdog and Diagnostic Logic: The module incorporates a hardware watchdog timer that monitors communication activity on the backplane bus. If the processor fails to poll the module within the defined timeout window, the watchdog asserts a fault output that drives all analog outputs to a configurable fail-safe state (typically 4 mA, representing the low end of the live-zero range). This behavior is essential for process safety: a failed processor should not leave control valves at their last commanded position, which could represent an unsafe operating point.

System Integration Benefits

• Deterministic scan-cycle contribution: The DSAX452’s fixed-latency backplane interface ensures that analog I/O data is available to the AC450 processor at a predictable point in each scan cycle, enabling stable PID loop execution without jitter-induced tuning instability.
• Live-zero fault detection: The 4–20 mA signal standard inherently distinguishes between a zero-process-value reading (4 mA) and a broken wire or transmitter failure (0 mA), allowing the AC450 to generate a wire-break alarm without additional hardware.
• Channel-level isolation transparency: Per-channel galvanic isolation means that a ground fault on one field instrument does not affect adjacent channels, preserving measurement integrity across the full module during fault conditions.
• Fail-safe output behavior: Configurable fail-safe output states ensure that control actuators move to a defined safe position upon processor fault, supporting SIL-rated safety function implementation at the system level.
• Direct backplane communication: Elimination of intermediate fieldbus protocol layers between the I/O module and processor reduces diagnostic latency — fault conditions are reported to the AC450 within one scan cycle rather than after a fieldbus polling interval.
• Modular replacement without system shutdown: The AC450 subrack architecture supports hot-swap of I/O modules in certain configurations, allowing DSAX452 replacement during planned maintenance windows without requiring a full controller restart.
• Compatibility with AC450 redundancy schemes: The DSAX452 operates within AC450 redundant controller configurations, where the standby processor maintains a synchronized image of all I/O data, enabling bumpless transfer upon primary processor failure.
• Diagnostic register transparency: The module exposes hardware status registers to the AC450 processor, including channel-level fault flags, power supply status, and communication error counters, enabling maintenance personnel to isolate faults to the specific channel or module without field instrumentation.

Quality Assurance & Global Logistics

Every DSAX452 unit dispatched by siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Visual examination covers PCB condition, connector pin integrity, housing mechanical condition, and label authenticity. Functional verification, where test equipment is available, includes backplane communication response and analog channel continuity checks. Units exhibiting signs of counterfeit manufacture — including inconsistent component date codes, non-standard PCB markings, or anomalous weight — are rejected and not offered for sale.

Shipments originate from Xiamen, China, a major international logistics hub with direct air freight connections to Frankfurt, Amsterdam, Dubai, Singapore, Los Angeles, and Chicago. Standard export documentation — commercial invoice, packing list, certificate of origin, and packing declaration — is prepared for every international order. Anti-static packaging with foam-lined outer cartons is used for all module shipments. Express delivery via DHL Express, FedEx International Priority, or UPS Worldwide Express is available, with transit times of 3–7 business days to most destinations. Freight insurance is available upon request. All units carry a 12-month warranty from the shipment date, covering manufacturing defects and functional failure under normal operating conditions.
