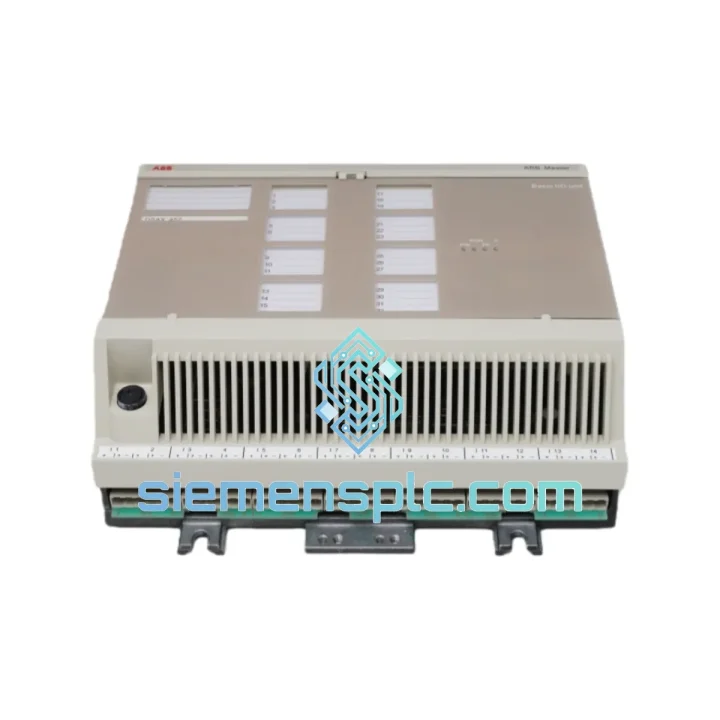

ABB DSAX452 5712289-A DCS Analog I/O Module

ABB DSAX452 5712289-A — Every Hour of Downtime Costs You. We Ship Today.

Your Advant or MOD 300 DCS line is down. The DSAX452 analog I/O module has failed, and your process engineer is standing next to a dead rack waiting for a part. We’ve been in that room. We know what that silence costs — in lost production, in penalty clauses, in management calls you don’t want to take. The ABB DSAX452 (part number 5712289-A) is in stock at our Xiamen warehouse right now. Same-day dispatch on confirmed orders before 15:00 CST. No waiting for factory lead times. No broker markups. Direct.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure signatures for DSAX452:

• All analog channels reading 0 or saturated: 90% of the time this is a failed ADC reference voltage circuit on the board. Swap the module first before chasing field wiring — the galvanic isolation means field faults rarely kill the ADC reference.
• Intermittent channel dropouts under load: Check the subrack backplane connector pins for oxidation. The DSAX452 uses a high-density edge connector; corrosion on pins 14–22 (S100 bus data lines) causes sporadic read errors that look like field instrument faults in the historian.
• Module not recognized after insertion (no LED activity): Verify the subrack slot address matches the software configuration in the Advant Engineering Tool (AET). The DSAX452 does not auto-address — the slot position in the subrack must correspond exactly to the I/O address defined in the controller database. Mismatch = silent failure.
• Output channels not responding to setpoints: Confirm hardware jumper JP1–JP4 settings match your signal type (current vs. voltage). These jumpers are located on the PCB edge, accessible without full disassembly. Incorrect jumper position is the single most common commissioning error on this module.

Step-by-step hot-swap procedure (Advant AC 450, non-redundant I/O):

1. In AET, set the affected I/O object to MANUAL mode and lock the output values to safe states before pulling the module.
2. Power down the subrack slot if your hardware revision supports per-slot isolation (check your subrack model — not all do).
3. Disconnect field terminal block from the front of the DSAX452. Label all wires before removal if they are not already tagged.
4. Slide out the failed module. Inspect the backplane connector on the subrack for bent pins or debris.
5. Verify the replacement unit’s hardware revision (5712289-A) matches your installed base. Revision mismatches can cause firmware incompatibility in older AC 410 systems running firmware below v4.2.
6. Set JP1–JP4 jumpers on the replacement board to match your signal configuration before insertion.
7. Insert the new DSAX452, reconnect the terminal block, and restore power.
8. In AET, perform a forced I/O scan and verify all channel values are within expected range before releasing to AUTO mode.
9. Document the swap in your maintenance log with the new unit’s serial number for traceability.

Firmware note: If your AC 450 is running firmware v5.x or later, no firmware update is required for the DSAX452 5712289-A revision. For AC 410 systems on firmware below v4.0, contact ABB support to confirm compatibility before installation.

Reliability in Harsh Conditions

The DSAX452 was engineered for continuous duty in environments that would kill consumer-grade electronics inside a week. ABB designed this module for the S100 I/O platform during an era when DCS hardware was expected to run unattended for 10-year maintenance cycles in pulp mills, refineries, and power stations — not air-conditioned server rooms.

The galvanic isolation barrier on every channel is not a marketing feature — it is a functional necessity in environments where ground potential differences between field instruments and the control room can exceed 50V. The 12-bit ADC uses a precision voltage reference with a temperature coefficient below 15 ppm/°C, which means your process readings stay accurate across the full 0–55°C operating range without recalibration.

Vibration resistance meets IEC 60068-2-6 (sinusoidal, 10–150 Hz, 1g). The PCB uses through-hole component mounting on critical signal paths — not surface-mount — specifically because through-hole joints survive mechanical shock and thermal cycling that crack SMD solder joints over time. This is why DSAX452 modules pulled from decommissioned plants after 20+ years of service still pass functional tests. The units we ship have been inspected, cleaned, and power-on verified. We do not ship untested stock.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary industrial export ports with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

• Order confirmed before 15:00 CST: Same-day pick, pack, and handoff to DHL Express or FedEx International Priority.
• ESD packaging: The DSAX452 ships in a double-layer anti-static bag inside a foam-lined rigid carton. No exceptions. We have seen modules arrive DOA from other suppliers due to inadequate ESD protection in transit.
• Commercial invoice & HS code: Pre-prepared with HS code 8537.10 (industrial control panels/modules) for smooth customs clearance. We include a detailed packing list and country-of-origin certificate (Sweden) to satisfy import documentation requirements in the EU, US, and Southeast Asia.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.
• Customs support: If your shipment is held at customs, we provide supplementary technical documentation (product datasheet, end-use declaration) within 4 hours of your request.

We have shipped ABB DCS modules to power plants in Indonesia, refineries in Saudi Arabia, paper mills in Finland, and chemical plants in India — all on emergency timelines. The logistics process is not new to us.
