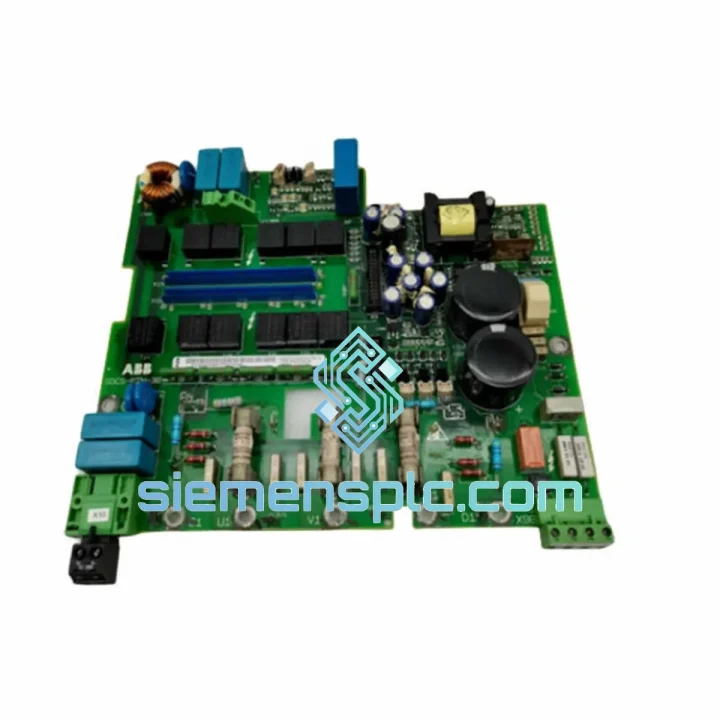

ABB 086318-001 DCS CPU Module

ABB 086318-001 Harmony DCS CPU: Cut Downtime Before It Cuts Your Output

Every hour your Harmony DCS node sits offline, you’re bleeding production value. The ABB 086318-001 Central Processing Unit is the brain of your Harmony control node — when it fails, the entire loop goes dark. We stock this module in Xiamen and ship globally within 24 hours of order confirmation. No waiting on ABB lead times. No broker runaround. Just the part, verified, packed, and moving toward your site.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling failed CPUs out of live DCS cabinets, here’s what actually matters when you’re swapping an 086318-001 under pressure:

1. Confirm the fault before you pull the module. The Harmony system logs CPU faults to the operator workstation event journal. Look for fault codes in the range of CPU COMM FAIL, WATCHDOG TIMEOUT, or SCAN OVERRUN before assuming the CPU is dead. A corrupted control strategy download or a bad backplane connector can mimic CPU failure. Check the backplane pins and re-seat the module first — it costs nothing and saves you a spare.

2. Firmware revision must match. This is the most common mistake on-site. The replacement 086318-001 must carry the same firmware revision as the failed unit, or at minimum be compatible with the revision expected by your engineering workstation (Composer or INFI 90 EWS). Mismatched firmware causes the CPU to reject the control strategy download and sit in FAULT state. Pull the firmware label from the failed unit before disposal. If you can’t read it, check the ABB Composer project file — it logs the target firmware version.

3. Node address configuration. The Harmony CPU node address is typically set via software configuration in the engineering workstation, not via physical DIP switches on this module. However, verify your specific backplane revision — some earlier Harmony backplane variants use jumper blocks to assign the node address. Confirm the node address in your Composer project before downloading to the replacement unit. A duplicate node address on the INFI-NET will cause both nodes to fault.

4. Hot-standby redundancy switchover. If your system runs 1:1 CPU redundancy, the standby unit should have already taken control when the primary faulted. Before replacing the failed primary, verify the standby is running in CONTROL mode and the process is stable. Replace the failed unit, allow it to boot and synchronize, then confirm it enters STANDBY mode before considering the job done. Never replace both CPUs simultaneously.

5. ESD discipline. The 086318-001 contains CMOS logic vulnerable to electrostatic discharge. Use a grounded wrist strap and handle the module by its front panel only. Do not touch the backplane connector pins. Store the failed unit in the ESD bag from the replacement module for return or failure analysis.

Common fault codes associated with 086318-001 failure:

• CPU COMM FAIL — Loss of communication between CPU and I/O modules; check backplane seating and bus termination before condemning the CPU.
• WATCHDOG TIMEOUT — CPU scan cycle exceeded configured limit; can indicate CPU hardware fault or an overloaded control strategy. Reduce scan load or replace CPU.
• DOWNLOAD REJECTED — Firmware mismatch between EWS project and installed CPU revision. Verify firmware compatibility before replacement.
• REDUNDANCY SYNC FAIL — Primary and standby CPUs cannot synchronize; typically caused by mismatched firmware revisions or a failed INFI-NET link between the two units.

Reliability in Harsh Conditions

The ABB Harmony platform was engineered for continuous process industries where the control system never gets a scheduled maintenance window. The 086318-001 is designed to operate in the real conditions of a power plant auxiliary room or a refinery control building — not a climate-controlled server room.

Vibration tolerance is built into the module’s PCB mounting and component selection, addressing the low-frequency mechanical vibration common in turbine halls and compressor stations. The conformal coating on the PCB provides a barrier against humidity ingress and airborne contaminants — sulfur compounds, oil mist, and conductive dust that are routine in petrochemical and mining environments. The operating temperature range of 0°C to 60°C covers the thermal extremes of both outdoor-adjacent control rooms in tropical climates and unheated substations in northern installations.

ABB’s Harmony platform has accumulated decades of field hours in nuclear power auxiliary systems, offshore platform control rooms, and continuous chemical reactors — environments where a control system failure is measured in millions of dollars per hour, not inconvenience. The 086318-001 carries that same design heritage. When you install a replacement unit from our stock, you’re putting back the same industrial-grade hardware the original system was designed around — not a substitute.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — a major international freight hub with direct DHL Express and FedEx International Priority connections to over 220 countries and territories. Here’s how your order moves:

• Order confirmation → same-day packing: Orders confirmed before 14:00 CST are packed and manifested the same business day. ESD-safe anti-static packaging, foam-lined outer carton, and all required export documentation are prepared in parallel.
• Export clearance: We handle all Chinese customs export declarations. HS code classification, commercial invoice, and packing list are prepared to your destination country’s import requirements. For EU destinations, we include the necessary CE documentation. For US imports, we provide the required country-of-origin and HTS code documentation.
• Transit times (estimated): Southeast Asia 1–2 business days | Middle East 2–3 business days | Europe 3–5 business days | North America 3–5 business days | South America 5–7 business days. All shipments include real-time tracking from pickup to delivery.
• Freight options: DHL Express Worldwide, FedEx International Priority, and TNT Express are available. For large orders or time-critical shipments, we can arrange charter freight or hand-carry courier service. Contact us to discuss options.
• Import duty advisory: We can declare at actual commercial value or provide documentation to support your import duty classification. We do not under-declare — all documentation is compliant and auditable.

If your plant is down and you need this module on-site in 48 hours, call us directly on WhatsApp. We’ve done it before.
