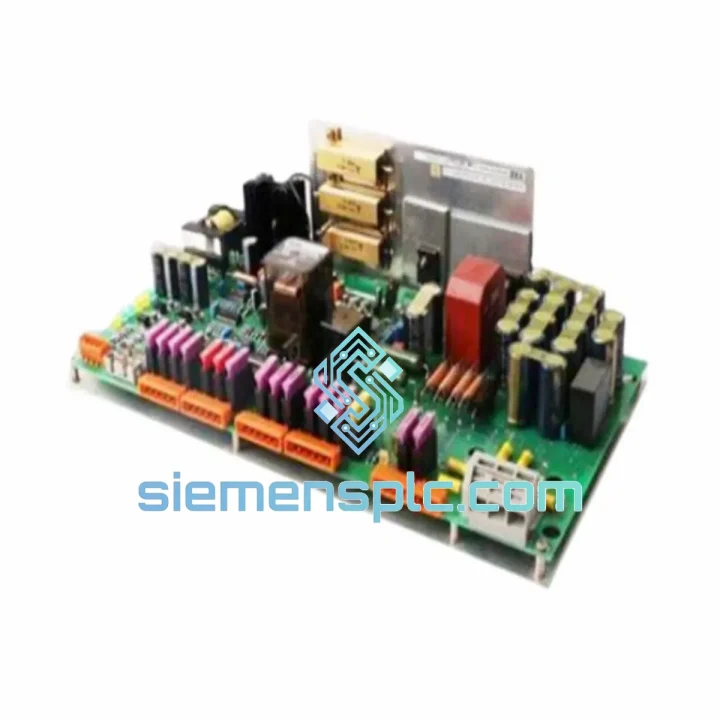

ABB 086351-001 DCS Power Supply Board

ABB 086351-001 — Every Hour of Downtime Has a Price Tag. We Cut It Short.

You’re not here browsing. Your DCS rack is dark, your shift supervisor is on the phone, and procurement is telling you the lead time is six weeks. We’ve been in that room. The ABB 086351-001 redundant power supply board is one of the most failure-prone components in aging ABB DCS installations — and it’s one of the most difficult to source fast through official channels. That’s exactly why we stock it.

Our Xiamen warehouse holds verified units of the 086351-001, bench-tested before dispatch, packed in ESD-safe materials, and ready to move on DHL or FedEx Express the same day you confirm. We’ve shipped this board to refineries in the Middle East, chemical plants in Southeast Asia, and power generation facilities in Europe — all on emergency timelines. The part works. The logistics work. The only variable is how fast you contact us.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 086351-001 fails in predictable ways once you’ve seen enough of them. Here’s a field-verified breakdown of the three fault patterns that account for the majority of emergency calls we receive on this board:

Pattern A — Full rack blackout, zero LED activity on any module: Before condemning the backplane or the controller, pull the power board. Inspect the edge connector under a flashlight — carbon tracking from a surge event or oxidation from humidity ingress are the two most common culprits. Clean the connector fingers with 99% IPA and a lint-free swab before seating the replacement. A contaminated connector will cause the new board to fail within weeks.

Pattern B — Sporadic I/O module dropouts, no consistent fault code in the DCS log: This is a degraded output rail, not a failed I/O card. The 086351-001’s bulk capacitors lose capacitance after 5–8 years of operation in cabinets running above 45°C ambient. The rail voltage sags under transient load, causing modules to reset. Engineers waste days chasing the I/O cards when the power board is the root cause. If your system is more than six years old and you’re seeing unexplained module resets, swap the power board first.

Pattern C — Redundancy alarm active, primary supply still running: The standby board has failed silently. This is the most operationally dangerous condition — your redundancy is gone and you don’t know it until the primary fails. Do not defer this replacement to a planned shutdown. A second fault event will take the entire rack offline with no warning.

Step-by-step replacement procedure (field-verified, no shortcuts):

1. Confirm the redundant supply is active and carrying full load before touching the failed board. Verify this at the DCS operator station, not just by looking at LEDs.
2. De-energize the failed board at the chassis breaker. Do not rely on hot-swap capability for this board revision — the edge connector design does not guarantee arc-free removal under load.
3. Wait 30 seconds after de-energizing. Residual capacitance on the output rails can deliver a shock and corrupt the DCS backplane bus if discharged through the connector during removal.
4. Remove the board with steady, even pressure. Do not rock it side-to-side — the edge connector pins are fragile and misalignment during removal damages the chassis socket.
5. Seat the 086351-001 replacement with deliberate, firm pressure until the board is fully engaged. A half-seated board will power up and produce erratic rail voltages that are difficult to diagnose.
6. Restore power and measure output voltage at the backplane test points before re-enabling the redundancy pair. Acceptable tolerance is ±2% of nominal.
7. Check the DCS event log for latched fault codes. Some ABB DCS platforms require a manual fault reset after a power board replacement — failure to do this leaves the system in a degraded alarm state even after the hardware is restored.

Chassis compatibility note: Verify your chassis hardware revision accepts this board revision before installation. Early-generation ABB DCS chassis may have mechanical or electrical compatibility constraints. Cross-reference with ABB documentation or contact us — we can assist with compatibility verification before you commit to the replacement.

Reliability in Harsh Conditions

Process facilities are not server rooms. The 086351-001 was engineered for environments where the ambient temperature inside a control cabinet regularly exceeds 50°C, where compressors and rotating machinery generate continuous broadband vibration, and where coastal or tropical installations push relative humidity to levels that cause condensation on cold-start mornings.

The board’s power conversion stage uses industrial-grade electrolytic capacitors with extended temperature ratings — not the consumer-grade components that degrade within three years in a hot cabinet. The PCB substrate carries a factory-applied conformal coating that forms a continuous moisture and corrosion barrier across all component leads and solder joints. This coating is the difference between a board that survives ten years in a coastal chemical plant and one that fails in three.

Mechanical retention through the chassis edge connector is designed to maintain electrical contact integrity under continuous vibration loads. The connector contact geometry provides a wiping action during insertion that clears surface oxidation — a detail that matters in installations where the board may not be removed for years at a time.

Every unit dispatched from our Xiamen facility goes through a pre-shipment bench test: power-on verification, output voltage measurement across all DC rails, visual inspection of the conformal coating for cracks or delamination, and connector integrity check. Our warehouse is climate-controlled and ESD-managed. Boards are stored in anti-static bags in a humidity-controlled environment. What arrives at your site is in the same condition it was when we tested it — not degraded by months in an uncontrolled freight warehouse.

Global Express Logistics

Xiamen is one of China’s primary export hubs, with direct DHL Express and FedEx International Priority gateway access. Our dispatch process is built around one constraint: your downtime clock is running.

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same day. Tracking number issued within 4 hours of confirmation.
• DHL Express International: Southeast Asia 1–2 business days. Middle East and Europe 2–3 business days. North and South America 3–4 business days.
• FedEx International Priority: Available as an alternative carrier for destinations with stronger FedEx network coverage or customer account preferences.
• Export documentation: Commercial invoice, packing list, and HS code declaration are prepared for every shipment. We handle customs paperwork — you focus on the installation.
• ESD-safe packaging: Anti-static bag, foam-lined outer carton, fragile and orientation labeling. The board survives the freight journey in the same condition it left our bench.
• Real-time tracking: Tracking link delivered via email and WhatsApp immediately upon dispatch. No follow-up required on your end.
• Critical spare programs: For facilities running ABB DCS systems with high uptime requirements, we support consignment stock arrangements and pre-positioned inventory at regional freight forwarders. Contact us to discuss options.
