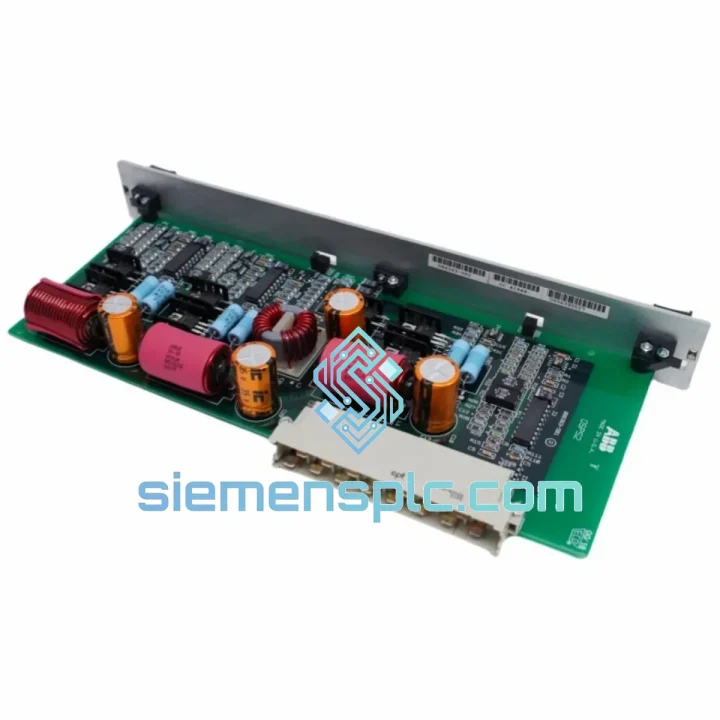

ABB 086369-001 DCS Control Interface Board – ECHAM Series

ABB 086369-001 ECHAM DCS Control Interface Board — Signal Routing Architecture in Distributed Control Loops

The ABB 086369-001 is a dedicated control and interface board within the ECHAM module family, engineered for deployment in ABB’s distributed control system (DCS) infrastructure. Its primary function is to serve as the signal conditioning and routing layer between field instrumentation and the DCS backplane bus, handling both analog signal linearization and digital command arbitration within a single compact PCB assembly. In process-critical environments — refinery columns, combined-cycle power blocks, chemical reactor trains — this board occupies the position where measurement fidelity directly determines loop stability and regulatory compliance.

Unlike generic I/O interface cards, the 086369-001 is designed around the ECHAM backplane protocol, which uses a synchronous serial bus with deterministic slot-addressing. Each board instance is assigned a fixed logical address during rack commissioning, and the DCS controller polls it at a fixed scan interval — typically 100 ms for analog channels and 10 ms for discrete status bits. This architecture eliminates the non-deterministic latency introduced by shared-bus arbitration schemes, making the 086369-001 suitable for loops with tight derivative action requirements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 086369-001 board implements a multi-stage signal path that begins at the field terminal block and terminates at the backplane edge connector. At the input stage, each analog channel passes through a passive RC filter network with a cutoff frequency tuned to suppress 50/60 Hz interference — a common noise source in industrial environments where power cabling runs parallel to instrumentation wiring. This front-end filtering reduces common-mode noise by approximately 40 dB before the signal reaches the A/D conversion stage.

The opto-electronic isolation barrier separates the field-side circuitry from the logic-side circuitry with a galvanic isolation rating sufficient to withstand transient overvoltages typical of inductive load switching events on the same panel bus. This isolation architecture prevents ground loop currents from corrupting measurement accuracy — a failure mode that is particularly destructive in thermocouple and RTD measurement loops where millivolt-level signals are involved.

On the logic side, a dedicated microcontroller handles A/D conversion sequencing, engineering unit scaling, and alarm limit comparison before placing the processed data into a dual-port RAM buffer. The DCS controller reads this buffer via the backplane bus without interrupting the conversion cycle, ensuring that scan jitter on the controller side does not introduce measurement gaps. The dual-port RAM architecture is a deliberate design choice that decouples the field sampling rate from the controller polling rate, allowing the board to maintain a consistent 100 ms sampling interval regardless of controller load.

EMC hardening on the 086369-001 includes ferrite bead filtering on all power supply pins, ground plane partitioning between analog and digital sections, and shielded trace routing for high-impedance signal paths. The PCB stack-up uses a dedicated analog ground plane layer that connects to chassis ground at a single point, preventing circulating currents that would otherwise appear as offset errors in precision measurement channels.

System Integration Benefits

• Deterministic scan cycle: Fixed 100 ms analog polling and 10 ms discrete polling intervals eliminate variable latency in closed-loop PID execution, supporting derivative gain settings that would be unstable on non-deterministic bus architectures.
• Direct backplane compatibility: The 086369-001 uses the native ECHAM backplane connector pinout, requiring no adapter hardware or firmware modification for slot replacement in existing rack assemblies.
• Channel-level diagnostics: Each analog channel reports wire-break and out-of-range status flags to the DCS controller independently, enabling the control system to initiate safe-state transitions on a per-channel basis rather than declaring a full module fault.
• Galvanic isolation per channel group: Opto-isolation prevents fault propagation between field wiring faults and the DCS logic bus, protecting the controller backplane from overvoltage events originating in the field junction box.
• Engineering unit scaling on-board: Raw A/D counts are converted to engineering units (e.g., °C, bar, m³/h) within the board’s microcontroller, reducing the computational load on the DCS controller and simplifying HMI tag configuration.
• Hot-swap mechanical design: The ECHAM card guide and backplane connector system supports guided insertion and extraction under power, minimizing the risk of connector damage during maintenance operations in live panels.
• Alarm pre-processing: High/low limit comparisons are executed at the board level at the full sampling rate, generating discrete alarm bits that the controller can read without waiting for the next full data scan — reducing alarm response latency by up to one full scan cycle.
• Firmware-independent operation: The board’s signal conditioning and isolation functions operate independently of the DCS controller firmware version, ensuring compatibility across multiple generations of the ABB ECHAM control platform without requiring firmware updates on the host controller.

Quality Assurance & Global Logistics

Every ABB 086369-001 unit supplied by siemensplc.com is sourced through verified industrial supply channels with full part traceability. Prior to dispatch, each board undergoes visual inspection for PCB integrity, connector condition, and label authenticity. Units showing evidence of re-marking, solder rework on critical components, or non-OEM replacement parts are rejected at intake.

Shipments originate from our warehouse in Xiamen, Fujian Province, China — a logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard in-stock orders are dispatched within 1–3 business days. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment. For orders requiring customs pre-clearance documentation or specific HS code declarations, our logistics team coordinates directly with the freight forwarder to prevent clearance delays.

All units are packed in ESD-safe anti-static bags, placed in foam-lined cartons rated for air freight handling, and sealed with tamper-evident tape. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 2 business days from receipt of the defective unit.
