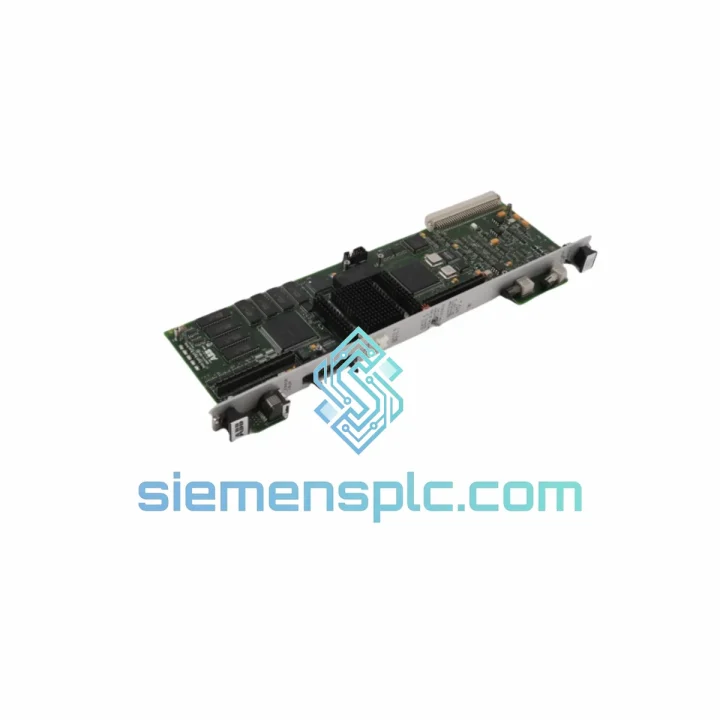

ABB 086444-005 DCS Measurement Process Board

ABB 086444-005 — Stop the Bleed: Get Your DCS Loop Back Online Before the Next Shift

Every minute your ABB ADVANT or AC 800 DCS is running blind on a failed measurement board, you’re bleeding money. A single unplanned shutdown in a process plant can cost anywhere from $10,000 to $250,000 per hour depending on your industry. The 086444-005 Measurement Process Board is the exact card that sits between your field transmitters and your controller backplane — when it fails, your entire measurement loop goes dark. We stock it. We ship it today. From Xiamen, direct to your site.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of ABB DCS emergency callouts, here’s what actually matters when you’re swapping the 086444-005 under pressure:

Common Failure Signatures

• Fault Code AI_FAIL or MEAS_ERR on HMI: Nine times out of ten this points directly to the measurement board, not the transmitter. Before you chase the field loop, pull the card and inspect the edge connector for oxidation or burn marks.
• Intermittent signal dropout (4–20 mA reading freezes or spikes to 0/21 mA): Classic symptom of a failing onboard A/D converter or degraded isolation barrier. Swapping the board resolves this immediately — recalibrating the transmitter won’t fix it.
• Controller reports channel in MANUAL OVERRIDE but field device is healthy: The DCS has likely flagged the measurement channel as unreliable and forced manual. The board’s self-diagnostics have already condemned it. Replace, don’t reset.
• Backplane communication errors on adjacent slots: A shorted or partially failed 086444-005 can pull down the I/O bus segment. If you’re seeing cascading faults across multiple channels, isolate this card first.

Replacement Procedure — Field Checklist

• Confirm hot-swap capability in your specific AC 800 or ADVANT controller revision before pulling the card live. Most configurations support it, but verify in the system manual for your firmware version.
• Ground yourself with a wrist strap before handling. The onboard measurement circuitry is sensitive — ESD damage won’t show up immediately but will cause premature failure within weeks.
• Note the slot address before removal. In some ADVANT configurations, the slot position determines the channel address mapping. Inserting into the wrong slot will cause the controller to assign incorrect tag references.
• After seating the new card, allow 30–60 seconds for the DCS to complete self-addressing and channel initialization. Do not force a manual reset during this window.
• Verify firmware compatibility: the 086444-005 revision must match or be forward-compatible with your controller’s firmware baseline. Check the ABB system release notes for your installed version. If in doubt, contact us — we can confirm revision compatibility before shipment.
• Once the card is online, perform a live loop check on all channels: compare DCS reading against a calibrated HART communicator or loop calibrator at the transmitter. Any offset greater than 0.1% of span warrants a channel trim.

Reliability in Harsh Conditions

The 086444-005 was not designed for a climate-controlled server room. ABB built this board for the realities of process plant environments — and it shows in the design choices.

The onboard isolation circuitry provides galvanic separation between the field loop and the backplane bus, which means ground loops from poorly bonded field instruments won’t corrupt your measurement data or damage the card. In refineries and chemical plants where ground potential differences between field junction boxes and the control room can reach several volts, this isolation is what keeps your measurement loops stable.

Vibration is handled through conformal coating on the PCB and mechanically secured connector interfaces. In compressor halls and pump stations where structural vibration is constant, solder joint fatigue is the primary failure mode for lesser boards. The 086444-005’s construction addresses this directly.

Thermal cycling — the daily expansion and contraction that comes with outdoor substations or poorly insulated marshalling cabinets — is within the board’s rated operating envelope. The 0°C to +60°C continuous rating is not a marketing number; it reflects the actual component derating applied during ABB’s design validation.

Humidity ingress is mitigated by the conformal coating, but this is not a sealed module. If your cabinet has condensation issues, address the root cause (cabinet heater, breather valve) rather than relying on the board’s coating as a long-term solution. We’ve seen boards fail in 6 months in cabinets with chronic condensation that would have lasted 10 years in a properly maintained enclosure.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items ordered before 15:00 CST. Here’s how the logistics chain works from the moment you confirm your order:

• Order Confirmation → Warehouse Pick: Within 2 hours of payment confirmation, the unit is pulled, inspected, and packed in anti-static ESD shielding with a moisture barrier outer layer. A packing list and certificate of conformance are included in the shipment.
• Export Documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10 / 8538.90 depending on destination customs classification) are prepared simultaneously. For destinations requiring a Certificate of Origin, allow an additional 4–8 hours for chamber endorsement.
• Carrier Selection: DHL Express is our primary carrier for Europe, the Americas, and Southeast Asia — typical transit times are 2–4 business days door-to-door. FedEx International Priority is used for North America when DHL capacity is constrained. For Middle East and South Asia destinations, we route via DHL or Aramex depending on the delivery postcode.
• Tracking: A tracking number is sent to your email within 3 hours of dispatch. For urgent shipments, we provide direct WhatsApp updates at each transit milestone.
• Customs Clearance: We declare accurate commercial values and provide all supporting documentation required for smooth customs clearance. Duties and import taxes are the responsibility of the consignee unless a DDP (Delivered Duty Paid) arrangement is agreed in advance — contact us to discuss DDP pricing for your country.
• Emergency Same-Day Options: For genuine production-down situations, contact us directly on WhatsApp before placing an online order. We can arrange courier pickup within 4 hours of confirmation for select destinations.

We have shipped ABB DCS components to refineries in Saudi Arabia, chemical plants in Germany, power stations in India, and paper mills in Brazil. The logistics process is the same every time — fast, documented, and traceable.
