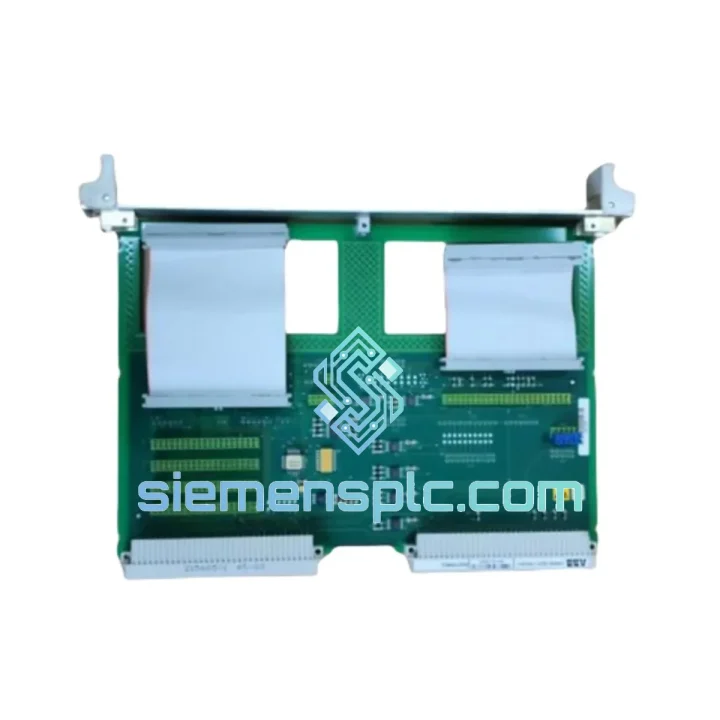

ABB 1MRB150011R0001 Coupler Module – PROCONTROL P 500TRM02

ABB 1MRB150011R0001 (500TRM02): Bus Coupler Module for PROCONTROL P Distributed Control Architecture

The ABB 1MRB150011R0001, sub-designated 500TRM02, is a rack-mount bus coupler module engineered for deployment within ABB’s PROCONTROL P distributed control system platform. Its primary function is to establish a deterministic, electrically isolated signal bridge between the internal system bus and peripheral I/O sub-racks or inter-controller communication segments. In large-scale process plants — power generation, petrochemical refining, pulp and paper, and water treatment — the integrity of this coupling layer directly governs the latency and reliability of the entire control loop. A degraded or mismatched coupler introduces propagation delay, frame loss, and diagnostic blind spots that cascade into process upsets. The 1MRB150011R0001 eliminates these failure modes through a hardware architecture built around transformer-isolated bus transceivers, on-board watchdog supervision, and passive-fail-safe logic that holds last-known-good output states during communication interruption.

The 500TRM02 designation identifies the second hardware revision of the 500TRM coupler family, incorporating revised transceiver ICs with extended common-mode rejection and a tightened propagation delay specification compared to the 500TRM01 predecessor. The module occupies a single slot in the PROCONTROL P rack and draws power from the rack’s internal 24 V DC bus rail, eliminating the need for external auxiliary power wiring. Its compact form factor — approximately 230 mm × 160 mm × 25 mm — conforms to the standard PROCONTROL P Eurocard mechanical envelope, ensuring drop-in physical compatibility across P13 and P14 generation racks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Transformer-Isolated Bus Transceiver Architecture. The 500TRM02 implements galvanic isolation at the bus interface layer using pulse-transformer-coupled transceivers rather than optocoupler-based designs. This choice is deliberate: transformer coupling sustains signal fidelity at higher data rates without the forward-voltage temperature drift that degrades optocoupler threshold margins over time. In a plant environment where ambient temperature swings between 10 °C and 50 °C across seasons, this thermal stability translates directly into consistent bit-error rates across the module’s service life.

EMC Hardening. The PCB layout routes the bus differential pair as a controlled-impedance 120 Ω trace pair with guard rings tied to chassis ground, suppressing capacitive coupling from adjacent power supply switching noise. Ferrite beads on the 24 V supply input attenuate conducted emissions in the 1 MHz–30 MHz band. The module’s metal front panel is bonded to the rack chassis via a low-impedance spring contact, providing a continuous Faraday shield around the transceiver section. These measures collectively achieve compliance with EN 61000-4-4 Level 3 (2 kV EFT) and EN 61000-4-5 Level 2 (1 kV surge) without external filtering components.

Passive Fail-Safe Logic. An on-board hardware watchdog monitors the local microcontroller’s heartbeat signal at a 50 ms interval. If the heartbeat is absent — due to firmware hang, supply undervoltage, or bus contention — the watchdog asserts a HOLD signal that latches the module’s output drivers in their last-known-good state. This behavior prevents the downstream I/O sub-rack from receiving undefined bus states during a controller recovery cycle, a critical requirement in continuous-process plants where a momentary undefined output can trigger emergency shutdown sequences.

Backplane Bus Arbitration. The 500TRM02 participates in the PROCONTROL P backplane arbitration protocol as a passive responder, meaning it does not initiate bus cycles independently. This design eliminates the risk of bus contention between the coupler and the primary CPU module during simultaneous access attempts. The arbitration logic is implemented in discrete gate arrays rather than programmable logic, removing the firmware update dependency that affects some competing coupler designs and ensuring deterministic arbitration timing across the module’s operational life.

System Integration Benefits

• Deterministic cycle time preservation: The ≤ 150 ns propagation delay specification ensures the coupler does not contribute measurable jitter to the PROCONTROL P scan cycle, maintaining the controller’s deterministic real-time response guarantee across multi-rack configurations.
• Zero-configuration drop-in replacement: The 500TRM02 requires no DIP switch setting, firmware flashing, or address configuration — the module auto-negotiates its slot address from the rack backplane, reducing commissioning time to under 10 minutes per slot.
• Diagnostic transparency via bus status LEDs: Four front-panel LEDs report power-OK, bus-active, watchdog-healthy, and fault-detected states independently, allowing maintenance technicians to isolate faults to the coupler layer without connecting a laptop or opening the rack.
• Isolation barrier protects CPU from field-side transients: The ≥ 500 V AC isolation rating between the system bus and the field-side connector prevents surge events originating in field wiring from propagating to the CPU backplane, protecting the most expensive and lead-time-critical component in the rack.
• Compatibility across P13 and P14 rack generations: The DIN 41612 Type C rear connector and Eurocard mechanical envelope are identical across both rack generations, allowing the 500TRM02 to serve as a common spare part across mixed-generation plant installations.
• Reduced spare-parts inventory complexity: Because the 500TRM02 is backward-compatible with 500TRM01 slots in most P13 rack configurations, maintenance planners can consolidate to a single coupler SKU rather than stocking both revisions, reducing warehouse carrying cost.
• Passive fail-safe behavior reduces spurious shutdowns: The last-known-good output hold during watchdog timeout prevents the downstream I/O rack from receiving undefined states, reducing the probability of a spurious emergency shutdown during controller recovery — a measurable improvement in plant availability metrics.
• EMC compliance simplifies site acceptance testing: Factory-certified compliance with EN 61000-4-2/4/5 means the module does not require site-level EMC re-testing when installed in a compliant enclosure, accelerating the FAT/SAT documentation process.

Quality Assurance & Global Logistics

Every ABB 1MRB150011R0001 (500TRM02) unit supplied by siemensplc.com is sourced as genuine ABB original hardware — not third-party clone or counterfeit. Units are procured through documented supply channels and arrive with original ABB part labeling and traceability markings intact. Prior to dispatch, each module undergoes a functional verification sequence: power-on self-test confirmation, bus transceiver loopback check, watchdog timeout cycle test, and isolation resistance measurement at 500 V DC. Units that do not pass all four checks are quarantined and not shipped.

All shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port. Standard export packaging uses anti-static foam-lined cartons with humidity indicator cards and shock-watch labels. For time-critical plant shutdowns, we support DHL Express, FedEx International Priority, and TNT Economy Express, with typical transit times of 3–5 business days to Europe, 2–4 days to Southeast Asia, and 4–7 days to the Americas. All shipments include a commercial invoice, packing list, and certificate of conformance. Export classification and HS code documentation are prepared for each order to minimize customs clearance delays. A 12-month warranty covers all functional defects from the date of shipment.
