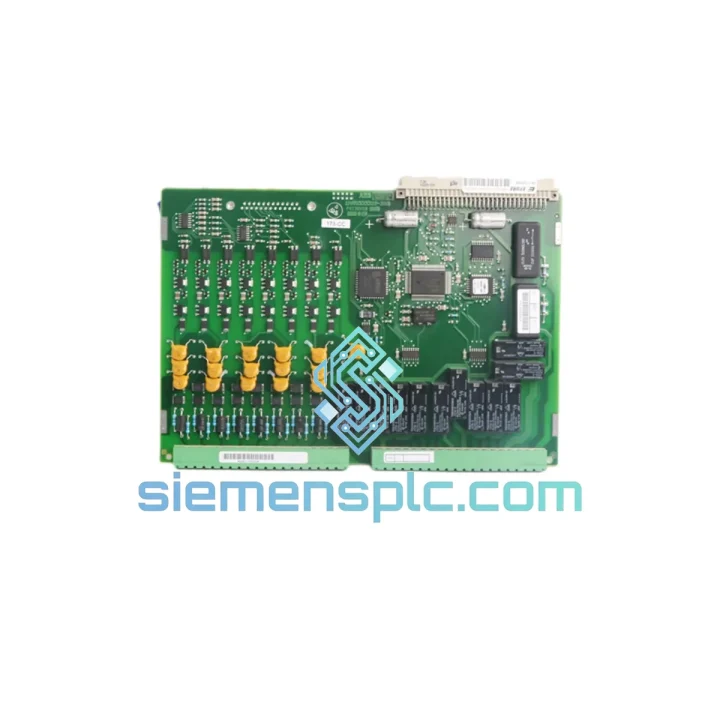

ABB 1MRK000173 Binary I/O Module

ABB 1MRK000173 Binary I/O Module: Cut Downtime, Restore Operations — Ships Today from Xiamen

Every hour your protection relay system sits offline, the financial bleeding accelerates. Tripped busbar, failed I/O module, PCM600 throwing a hardware fault — you’ve been there. The ABB 1MRK000173 Binary Input/Output module is the exact plug-in card your IED chassis needs, and we have it on the shelf right now. No 8-week lead time. No “check back later.” We ship DHL Express from Xiamen within 24 hours of order confirmation, so your team can be back on-site with hardware in hand before the next shift change.

This is not a grey-market gamble. Every unit we dispatch carries full traceability documentation, passes a pre-shipment continuity and label verification check, and ships in ESD-safe packaging. When the pressure is on and your maintenance window is closing, you need a supplier who answers the phone — not a web form with a 3-day response SLA.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Replacing the 1MRK000173 is straightforward if you follow the sequence. Skipping steps is how you turn a 2-hour swap into a 2-day nightmare.

Step 1 — Isolate before you touch anything. Confirm the IED is in test mode via PCM600 or the local HMI. Verify all binary outputs are de-energized. Do not rely on the LED status alone — check the actual circuit breaker auxiliary contacts.

Step 2 — Record the slot address. The 1MRK000173 uses automatic slot addressing via the backplane — there are no physical DIP switches on this module. However, the IED firmware maps I/O channels to specific physical slots. Before extraction, open PCM600 and export the current hardware configuration file. This is your recovery point if anything goes wrong.

Step 3 — Handle with ESD discipline. This module contains CMOS logic circuits sensitive to electrostatic discharge. Ground yourself with a wrist strap before handling. Do not place the module on unprotected surfaces.

Step 4 — Seat and lock. Insert the replacement module firmly until the front-panel latch clicks. A partially seated module will cause intermittent backplane communication errors that are notoriously difficult to diagnose — the IED may report a “hardware configuration mismatch” fault that looks like a firmware issue.

Step 5 — Firmware verification. After power-up, the IED performs an automatic hardware scan. If the firmware version on the IED is below the minimum supported version for the 1MRK000173 board revision, you will see a “Module type mismatch” alarm. Check the ABB compatibility matrix for your IED firmware version. In most field cases, a PCM600 configuration download resolves residual I/O mapping discrepancies.

Common fault codes associated with a failing 1MRK000173:

• HW_CONFIG_ERR — Hardware configuration mismatch; module not recognized on backplane. First suspect: poor seating or failed backplane connector.
• BI_SUPPLY_FAIL — Binary input supply voltage out of range. Check the substation DC bus voltage before condemning the module.
• BO_OPEN_CIRCUIT — Binary output open circuit detected. Verify wiring continuity to the switchgear auxiliary circuit before replacing the module.
• COMM_TIMEOUT — Backplane communication timeout. Can indicate a failing module or a corrupted IED configuration file. Try a PCM600 re-download first.

Note on the -BC suffix: The 1MRK000173-BC is a PCB revision of the same functional module. The suffix denotes a board-level change with no impact on I/O channel count, voltage ratings, or firmware compatibility. They are direct drop-in replacements for each other.

Reliability in Harsh Conditions

Substations are not server rooms. The 1MRK000173 is engineered to operate in environments that would destroy consumer-grade electronics within weeks. ABB’s Relion platform subjects these modules to a qualification regime that covers the full spectrum of substation stress factors.

Vibration and mechanical shock: The module is qualified to IEC 60068-2-6 sinusoidal vibration and IEC 60068-2-27 shock testing. In practice, this means it survives the mechanical impulses generated by nearby circuit breaker operations — events that can produce transient accelerations exceeding 10g in the relay panel.

Thermal cycling: Substations in tropical climates see panel temperatures swing from 15°C at night to over 50°C during peak afternoon load. The 1MRK000173 is rated for continuous operation across this range without derating. The PCB uses conformal coating to prevent condensation-induced leakage currents during rapid temperature transitions.

Electromagnetic immunity: The module is tested to IEC 61000-4 series standards, including 4kV fast transient bursts (IEC 61000-4-4) and 2kV surge immunity (IEC 61000-4-5). In high-voltage switchyards, electromagnetic interference from bus faults and switching operations is a constant threat. This module is built to ignore it.

Humidity and contamination: Conformal coating on the PCB provides protection against humidity up to 95% RH (non-condensing) and airborne contaminants common in industrial environments — sulfur compounds, dust, and salt fog in coastal installations.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL Express and FedEx International Priority connections to major industrial hubs worldwide. Here is exactly what happens after you confirm your order:

• Hour 0–2: Order confirmed, payment cleared. Our warehouse team pulls the unit from ESD-controlled storage and initiates pre-shipment inspection.
• Hour 2–6: Visual inspection, label verification against your order, functional continuity check, ESD-safe packaging with foam cushioning. Documentation pack assembled: commercial invoice, packing list, certificate of conformity, and datasheet.
• Hour 6–24: Shipment booked with DHL Express or FedEx International Priority. Tracking number issued to your email. Customs declaration filed with accurate HS code for smooth clearance.
• Day 1–3: Delivery to most destinations in Europe, North America, Southeast Asia, and the Middle East. Remote locations may require 4–5 business days.

We have shipped to power utilities, petrochemical plants, and manufacturing facilities across 40+ countries. Our team handles export documentation, including CITES-exempt declarations and dual-use compliance checks, so your customs clearance does not become another delay. For orders requiring same-day dispatch, contact us before 14:00 CST.

For large-quantity orders or projects requiring phased delivery, we offer consolidated shipment planning to reduce per-unit freight cost without sacrificing speed on the first critical batch.
