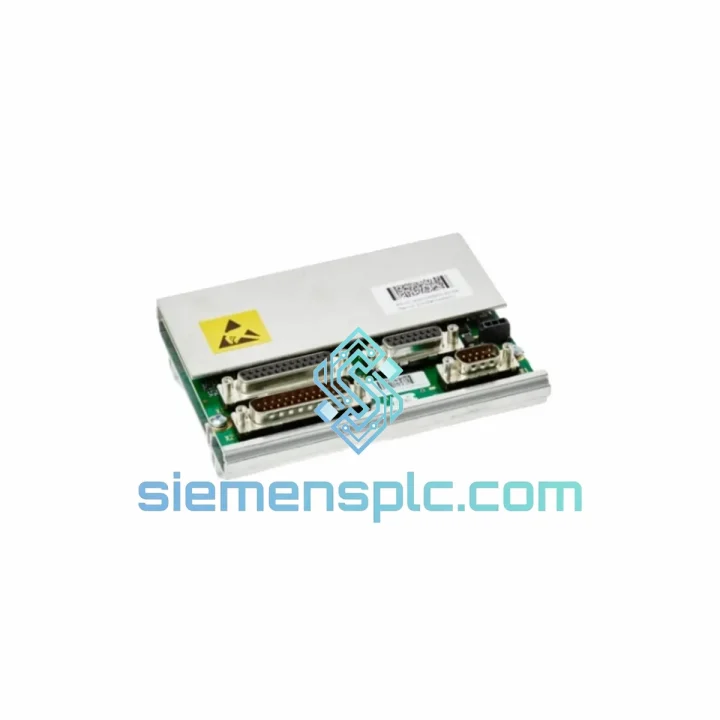

ABB 3HAC031851-001 Serial Measurement Board

ABB 3HAC031851-001 SMB Unit — Stop the Clock on Your IRC5 Downtime

Every minute an IRC5 robot sits idle, your production schedule bleeds money. In automotive body shops, the cost of an unplanned robot stoppage runs $5,000–$22,000 per hour depending on line configuration. In electronics assembly, a single SMB failure can cascade into a full-line halt within minutes. The ABB 3HAC031851-001 Serial Measurement Board is the exact component that stands between your robot and a complete loss of axis position feedback — and we have it on the shelf, ready to move today.

We stock the 3HAC031851-001 at our Xiamen warehouse specifically because IRC5 SMB failures are not rare events. Capacitor aging on the measurement bus interface, connector oxidation from coolant mist, and ESD damage from improper handling during maintenance are the three most common failure modes we see in the field. When the IRC5 throws error codes 50056, 50057, or 50058 — axis measurement chain fault — the SMB is the first board to swap. We know this because our team has been sourcing and supplying these boards to MRO buyers, robot service companies, and Tier 1 automotive plants for years.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Codes That Point to the SMB:

• 50056 — Axis measurement chain fault: Loss of serial communication between the SMB and one or more axis encoder interfaces. First action: reseat all SMB connectors. If fault persists after power cycle, the SMB board itself is the prime suspect.
• 50057 — SMB memory error: Internal EEPROM on the SMB has failed or become corrupted. This is a board-level fault — no firmware patch resolves it. Replace the board.
• 50058 — Battery backup fault on SMB: The onboard lithium cell that maintains resolver offset data has discharged. On older units, this often accompanies SMB board failure. Replace the board and perform a full axis calibration (revolution counter update) after installation.

Replacement Procedure — Field Notes:

1. Power down the IRC5 cabinet completely. Do not hot-swap the SMB — the measurement bus does not support live insertion and you risk damaging the axis computer.
2. Photograph all cable routing and connector positions before disconnecting. The SMB has multiple encoder connectors (X1–X6 for each axis) plus the serial bus connector to the axis computer. Mis-routing X2 and X3 is a common field error that causes axis swap faults on startup.
3. Ground yourself with an ESD wrist strap before handling the board. The SMB’s measurement interface ICs are sensitive to electrostatic discharge — this is not optional.
4. Install the replacement 3HAC031851-001. No DIP switch settings or address configuration are required — the SMB is auto-addressed by the IRC5 axis computer on boot.
5. After power-up, navigate to the FlexPendant: ABB Menu → Calibration → Revolution Counters → Update Revolution Counters. This step is mandatory. Skipping it will result in incorrect axis positions and potential collision on the first move.
6. Verify no active faults in the Event Log before releasing the robot to production. Run a slow-speed test cycle through the full working envelope before resuming normal speed.

Firmware Note: The 3HAC031851-001 does not carry user-flashable firmware. It communicates via the ABB serial measurement protocol which is managed by the axis computer. No firmware matching is required between the SMB and the IRC5 system software version — the board is compatible across IRC5 RobotWare 5.x and 6.x platforms.

Reliability in Harsh Conditions

The IRC5 SMB is not a board that lives in a clean office rack. It operates inside a steel cabinet on a welding line, a paint shop, or a foundry floor — environments where ambient temperatures swing from 10°C at shift start to 50°C+ by midday, where coolant mist and metallic particulate are constant, and where the cabinet takes vibration from nearby presses and conveyors every second of every shift.

ABB designed the 3HAC031851-001 with conformal coating on the PCB to resist moisture ingress and corrosion from flux residue and industrial cleaning agents. The board’s connectors use gold-plated contacts rated for 500+ insertion cycles — relevant because IRC5 cabinets in high-utilization plants often see annual preventive maintenance that involves full board removal and reinstallation. The measurement ICs are specified to operate across the full industrial temperature range and are mounted with vibration-damping compound at critical solder joints.

Units we supply — whether new OEM or tested refurbished — are inspected under magnification for PCB trace damage, connector pin deformation, and component-level anomalies before dispatch. Refurbished units are bench-tested against an IRC5 test rig to verify full axis communication across all six channels before packaging. We do not ship boards that have not passed this check.

Global Express Logistics

Our Xiamen warehouse is positioned for fast international dispatch. Xiamen Gaoqi International Airport (XMN) has direct cargo connections to DHL and FedEx international hubs, with cut-off times that allow same-day booking for orders confirmed before 15:00 CST.

• DHL Express Worldwide: Xiamen to most European destinations in 3–5 business days. To Southeast Asia in 2–3 business days. To North America in 4–6 business days.
• FedEx International Priority: Available for time-critical shipments. Door-to-door tracking from our warehouse to your facility.
• Export Documentation: We prepare commercial invoice, packing list, and certificate of origin as standard. HS code 8537.10 (or 8473.30 depending on destination customs classification) is pre-declared. We can provide a pro-forma invoice for your import clearance team before shipment.
• ESD-Safe Packaging: All SMB boards are packed in anti-static bags, placed in foam-lined boxes, and outer-carton sealed for air freight. No board arrives with transit damage.
• Bulk Orders: For quantities of 3 or more units, sea freight via Xiamen Port is available with competitive rates. Lead time 18–25 days to major global ports.

If your plant is facing an active stoppage, contact us immediately via WhatsApp for real-time stock confirmation and same-day shipping arrangement. We have handled emergency dispatches to automotive plants in Germany, Mexico, and Thailand with wheels-up within 6 hours of order confirmation.
