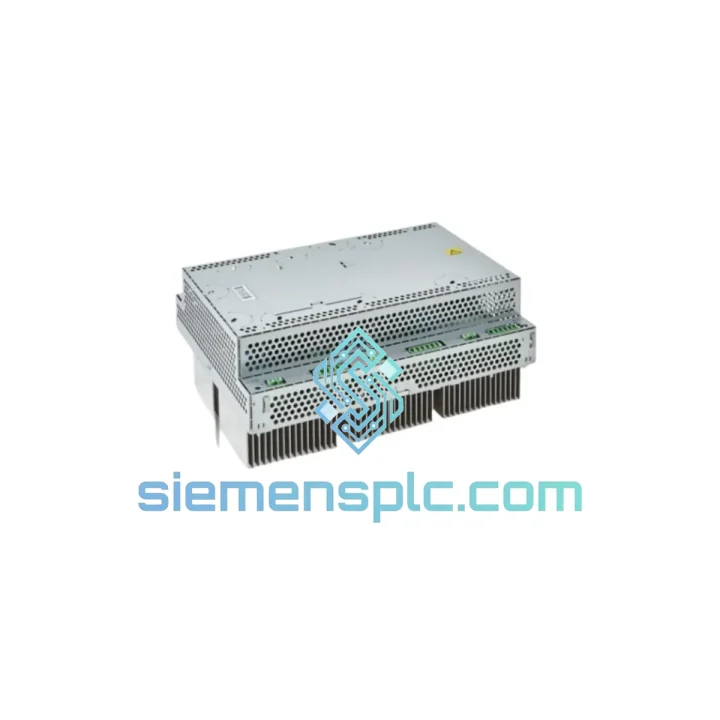

ABB PDB-01 Servo Drive Power Distribution Board – DSQC Series

ABB PDB-01 Servo Drive Power Distribution Board — Core Role in IRC5 Robot Control Architecture

The ABB PDB-01 is the centralized power distribution and servo drive interface board installed within the ABB IRC5 robot controller cabinet. Its primary function is to receive rectified DC bus voltage from the main drive unit and distribute regulated power rails to each axis drive module, while simultaneously managing the servo enable/disable logic, brake relay circuits, and safety chain continuity. In a six-axis IRC5 configuration, the PDB-01 acts as the electrical backbone between the main computer board (DSQC562/DSQC1000) and the individual axis drive cards (DSQC645/DSQC663), ensuring synchronized power sequencing during startup and controlled energy dissipation during emergency stop events.

Cross-reference part numbers for this board include 3HNA006147-001, 3HAC036260-001, DSQC431, DSQC663, and 3HAC029818-001, covering compatibility across IRC5 Single Cabinet, Dual Cabinet, and Compact IRC5 controller variants. Each designation maps to a specific hardware revision; procurement engineers should confirm the controller serial number prefix (M2004, M2000A) before finalizing the order.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PDB-01 board architecture is organized around three functional sub-circuits that operate in a defined power-on sequence managed by the IRC5 main computer.

1. DC Bus Distribution & Inrush Limiting: The board incorporates a pre-charge relay circuit that limits inrush current to the axis drive capacitor banks during power-on. A thermistor-based NTC element in series with the pre-charge path absorbs the initial capacitor charging surge, protecting the rectifier bridge from peak current stress. Once bus voltage reaches approximately 90% of nominal (≈508 V DC), the main contactor closes and bypasses the NTC, reducing steady-state conduction losses to near zero.

2. Optically Isolated Servo Enable Logic: Each axis drive enable signal is routed through a dedicated optocoupler stage (typically a 6N137 high-speed type) on the PDB-01. This galvanic isolation barrier maintains a minimum 2,500 V RMS isolation between the 24 V logic domain and the 565 V DC power domain, preventing ground loop interference from propagating into the motion controller’s FPGA-based interpolation engine. The enable latency through the optocoupler chain is under 1 µs, which is well within the IRC5’s 4 ms servo cycle time.

3. Dual-Channel Brake Relay Architecture: Motor holding brakes on each axis are controlled via independent relay channels on the PDB-01. The dual-channel design satisfies IEC 62061 SIL 2 requirements: both relay contacts must open simultaneously for a brake release command to be valid. A cross-monitoring circuit on the board continuously compares the state of both relay coils; any discrepancy triggers a fault code (ERR 50024 or ERR 50025 in RobotWare) and initiates a controlled stop. This prevents single-point failures from causing uncontrolled axis drop under gravity load.

4. EMC Design Considerations: The PDB-01 PCB uses a four-layer stackup with dedicated ground planes on layers 2 and 3, minimizing loop area for high-frequency switching transients generated by the IGBT-based axis drives. Ferrite bead filters are placed on all 24 V logic supply traces entering the board, attenuating common-mode noise above 10 MHz. The board’s metal mounting bracket provides a low-impedance chassis ground bond, which is critical for meeting EN 61000-6-2 industrial immunity requirements in environments with variable-frequency drives and welding equipment operating nearby.

System Integration Benefits

• Deterministic Power Sequencing: The pre-charge and main contactor logic enforces a fixed power-on ramp, eliminating voltage transients that could corrupt FPGA configuration memory in the axis drive cards during startup.
• Fault Isolation per Axis: Each axis brake relay and servo enable channel is independently fused and monitored, allowing the IRC5 to isolate a single failed axis without shutting down the entire robot — reducing unplanned downtime in multi-robot cells.
• SIL 2 Safety Chain Integrity: The dual-channel safety relay architecture integrates directly with the IRC5’s Electronic Position Switch (EPS) and SafeMove2 safety controller, maintaining the functional safety loop without external safety relays.
• Low-Latency Enable Path: Sub-microsecond optocoupler propagation delay ensures servo enable/disable commands from the main computer are executed within the same 4 ms interpolation cycle, preserving trajectory accuracy during dynamic load changes.
• Diagnostic Transparency: The board’s cross-monitoring circuit generates specific RobotWare fault codes (ERR 5xxxx series) that map directly to individual relay channels, enabling maintenance engineers to identify the failed component without oscilloscope-level debugging.
• Thermal Margin: Rated to +55°C ambient inside the cabinet, the PDB-01 operates with a 15°C thermal margin above the IRC5’s standard cabinet temperature specification, extending MTBF in high-duty-cycle foundry and press-shop environments.
• Backward Compatibility: The board’s connector pinout is consistent across DSQC431 and DSQC663 hardware revisions, allowing direct substitution without firmware changes in RobotWare 5.x and 6.x installations.
• Reduced Spare Parts Inventory: A single PDB-01 unit covers IRC5 Single Cabinet, Dual Cabinet, and Compact IRC5 variants, allowing maintenance managers to consolidate spare parts stock across mixed robot fleets.

Quality Assurance & Global Logistics

Every ABB PDB-01 unit dispatched from our Xiamen, China facility undergoes a structured verification process before packaging. Visual inspection confirms PCB integrity, connector seating, and label authenticity against ABB’s published part marking standards. Functional bench testing applies 24 V DC logic supply and verifies relay actuation, optocoupler continuity, and brake channel resistance within ABB’s specified tolerances. Units sourced from ABB-authorized distributor channels carry original ABB traceability codes and are logged against their serial numbers in our inventory system.

Packaging uses anti-static PE foam inserts inside double-wall corrugated cartons, with desiccant packs for humidity-sensitive PCB components. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with Chinese customs regulations and destination-country import requirements. Shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. Same-day dispatch is available for orders confirmed before 14:00 CST. All units carry a 12-month warranty against manufacturing defects from the date of dispatch.
