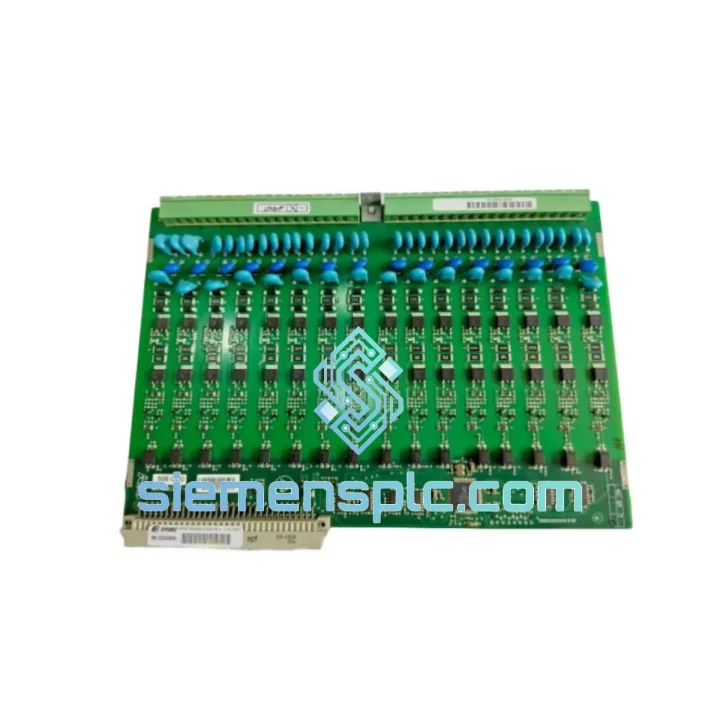

ABB 1MRK000508-BDr04 Protection Relay Module

ABB 1MRK000508-BDr04 — Stop the Clock on Your Substation Outage

Every minute your protection relay is offline, you’re bleeding money — missed production targets, SLA penalties, and the pressure of a control room waiting on you. The ABB 1MRK000508-BDr04 IED hardware module is in stock at our Xiamen warehouse. We’ve shipped this exact part to substations in Southeast Asia, the Middle East, and Europe within 48 hours of order confirmation. No broker delays. No “check back in two weeks.” You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience — not a manual reprint.

Common failure signatures for this module type:

• Internal fault LED lit / IED HMI shows “Module failure” or “Hardware error” — The IED has detected a board-level fault. Pull the event log via PCM600 or LHMI before powering down. Note the exact fault code (e.g., INTERR, HWFAIL) — this confirms whether the fault is isolated to this module or cascading from the CPU board.
• Binary inputs not responding / output relays stuck — Check the I/O module first. If the CPU board shows healthy and GOOSE subscriptions are intact but field signals aren’t registering, the I/O PCB (this module) is the prime suspect.
• IED rebooting cyclically after a lightning event or switchgear flashover — Transient overvoltage on binary input circuits is a known killer. Inspect the input optocoupler section for burn marks before condemning the whole IED.
• Firmware mismatch after module swap — ABB IEDs perform a hardware inventory check on boot. If the replacement module revision (BDr04 vs BDr02) differs from what the IED configuration expects, you may see a “Configuration mismatch” warning. Use PCM600 to re-download the application configuration to the IED after module installation. Do not skip this step.

Replacement procedure — field checklist:

1. Isolate the IED from all trip circuits. Confirm with the control room that the bay is under maintenance mode and protection is backed up by an alternate relay or bus protection.
2. Export the full IED configuration from PCM600 before touching hardware. Save to a dated backup folder. Non-negotiable.
3. Power down the IED via the auxiliary supply breaker. Wait 30 seconds for capacitors to discharge.
4. Locate the module slot per the relay’s hardware manual. The 1MRK000508-BDr04 is a plug-in PCB assembly — no tools required for extraction on most chassis. Use the ejector levers; do not force.
5. Seat the replacement module firmly until the locking tabs click. Verify the module revision label matches your order documentation.
6. Power up. Monitor the IED boot sequence on the LHMI. Expect a 45–90 second initialization cycle.
7. If a configuration mismatch alarm appears, connect PCM600, go to Write to IED, and push the application. Confirm all I/O signal mappings are intact post-download.
8. Perform a functional test: inject test signals via secondary injection kit, verify trip output operation, confirm GOOSE publishing is active on the station bus.
9. Return the bay to service only after all protection functions test satisfactorily. Document the module swap in the substation maintenance log with the new serial number.

DIP switch / addressing note: The 1MRK000508-BDr04 does not use external DIP switches for slot addressing — the IED backplane handles module enumeration automatically on power-up. However, if your installation uses a multi-IED chassis or a distributed I/O configuration, verify the slot position matches the hardware configuration in PCM600 before downloading.

Reliability in Harsh Conditions

ABB’s IED platform was engineered for the worst environments substations can produce — and this module is no exception. The PCB assembly uses conformal coating on all exposed traces, providing resistance to condensation, salt fog, and airborne contaminants common in coastal industrial facilities and offshore platforms. Vibration tolerance meets IEC 60255-21-1 Class II requirements, which covers the shock loads generated by nearby switchgear operation and seismic activity in earthquake-prone regions.

Thermal cycling is a primary aging mechanism for relay electronics. The 1MRK000508-BDr04 is rated for continuous operation across a -20°C to +55°C ambient range, with short-term excursions to +70°C. In practice, we’ve seen these modules outlast the IED chassis they’re installed in when the substation HVAC is maintained properly. The failure modes we do see in the field are almost always traceable to external causes: lightning-induced transients on CT/VT secondary circuits, water ingress from failed panel gaskets, or rodent damage to wiring — not the module itself.

For installations in high-humidity tropical environments (Southeast Asia, coastal Middle East), we recommend verifying that the IED cubicle door seals are intact and that the internal anti-condensation heater is functional before commissioning a replacement module. A healthy module in a wet cubicle will fail within months.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with daily DHL and FedEx consolidation flights to major hubs in Frankfurt, Dubai, Singapore, Los Angeles, and Sydney. Here’s what the process looks like from your order to your hands:

• Order confirmed + payment cleared: Module is pulled from shelf stock, inspected, and packed in anti-static ESD bag with moisture barrier. Outer carton uses foam-in-place cushioning rated for 1.2 m drop.
• Day 1: DHL Express or FedEx International Priority waybill generated. Tracking number sent to your email within 2 hours of handover to carrier.
• Transit time: 2–4 business days to most of Europe, Middle East, and Southeast Asia. 3–5 days to North America and Australia. Customs clearance is typically same-day for commercial shipments with proper documentation.
• Documentation package: Commercial invoice with accurate HS code (8537.10 or 8536.90 depending on customs classification), packing list, and certificate of conformity. Pro-forma invoice available for advance customs pre-clearance if your import team requires it.
• Urgent freight: For same-day dispatch on orders placed before 14:00 CST, contact us directly via WhatsApp. We can arrange hand-carry courier for truly critical situations.

We’ve shipped to substations in Saudi Arabia, Indonesia, Vietnam, Germany, the UK, and Australia in the past 12 months. If your country has specific import restrictions on electronic components, contact us before ordering — we’ll advise on documentation requirements.
