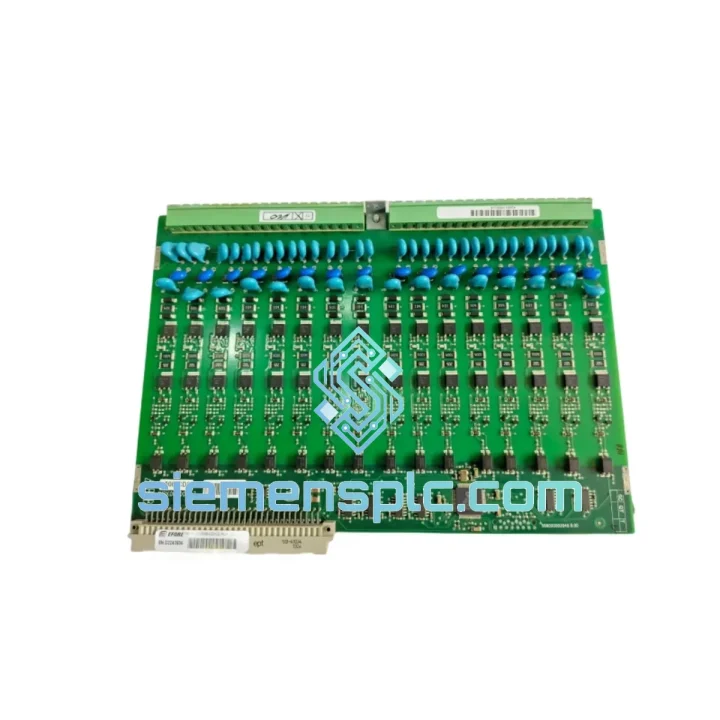

ABB 1MRK000508-CDr03 1MRK000007-7 Protection Relay Module

ABB 1MRK000508-CDr03 / 1MRK000007-7 — Stop the Clock on Your Unplanned Outage

Every minute your protection relay is offline, your substation or plant is exposed — to fault propagation, regulatory non-compliance, and hard cash losses that compound by the hour. The ABB 1MRK000508-CDr03 (BOM cross-reference: 1MRK000007-7) is on our shelf in Xiamen right now. We don’t quote lead times in weeks. We quote in hours.

This is not a listing. This is a recovery plan.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping an MRK-series protection relay module is not a plug-and-play exercise if you skip the configuration steps. Here is what field experience tells you to check before you even open the chassis:

1. Confirm firmware revision before ordering. The 1MRK000508-CDr03 has gone through multiple hardware revisions (CDr01 → CDr03). A CDr03 board dropped into a chassis running older firmware may trigger a hardware mismatch alarm on startup. Pull the relay nameplate and check the firmware version via the local HMI or PCM600 before dispatch. If you are running firmware below 2.0, request a firmware-matched unit — we can cross-check.

2. DIP switch / jumper settings. On MRK platform boards, binary input threshold voltage (24 VDC / 48 VDC / 110 VDC / 220 VDC) is set via onboard jumpers — not software. Photograph the jumper block on the failed board before removal. Replicate exactly on the replacement. Incorrect threshold settings cause BI inputs to read permanently open or permanently closed, which will prevent protection functions from operating correctly.

3. Self-addressing and slot assignment. MRK I/O modules use automatic slot addressing based on physical position in the chassis backplane. After seating the replacement board, perform a full hardware scan from PCM600 or the relay’s local menu (Configuration → Hardware → Scan). The relay must recognize the new module before protection functions are re-enabled. Do not skip this step — the relay will run but protection elements tied to that I/O board will be silently inactive.

4. Common fault codes that point to this board:

• HWFAIL / Module Missing — board not seated correctly or backplane connector oxidized. Clean with IPA and reseat.
• BI Supervision Alarm — binary input wetting voltage mismatch. Check jumper settings against field wiring voltage.
• Internal Fault / Self-test Fail — board-level hardware failure. This is the primary indicator that the PCB itself requires replacement.
• Communication Loss (IEC 61850) — if the module handles the communication interface, check MAC address registration in the station automation system after replacement. Some systems bind GOOSE subscriptions to MAC addresses.

5. Energize sequence. After replacement and configuration, bring the relay back online with protection functions disabled (test mode). Run a secondary injection test on the affected protection elements before re-enabling. Never re-energize a protection panel with an untested replacement board in service.

Reliability in Harsh Conditions

ABB designed the MRK platform for the environments that destroy lesser hardware. The 1MRK000508-CDr03 is built to IEC 60255 and IEC 61000-4 standards — which means it has been tested against the specific failure modes that kill relay electronics in the field:

Vibration and mechanical shock — IEC 60255-21-1 Class II qualification covers the continuous vibration loads found in switchgear rooms adjacent to large power transformers and motor control centers. The PCB uses conformal coating and through-hole anchoring on heavy components to prevent solder joint fatigue over years of service.

Thermal cycling — substations in the Middle East hit 55°C ambient in summer; Siberian installations see -40°C in winter. The MRK board’s component selection and PCB stack-up are rated for this full range without derating. Electrolytic capacitors — the typical weak point in relay electronics — are specified for extended temperature life.

Humidity and condensation — coastal substations, offshore platforms, and tropical industrial sites push humidity to 95% RH. The conformal coating on the 1MRK000508-CDr03 provides a barrier against moisture ingress that causes dendritic growth and leakage currents on unprotected boards. This is why ABB MRK modules outlast generic relay PCBs in humid environments by a significant margin.

Electromagnetic interference — protection relay rooms are among the most electrically hostile environments on earth. High-speed switching transients, capacitor bank operations, and nearby HV bus faults generate conducted and radiated interference that can corrupt relay logic. The MRK platform’s EMC immunity testing to IEC 61000-4-4 (EFT/Burst), IEC 61000-4-5 (Surge), and IEC 61000-4-8 (Power Frequency Magnetic Field) ensures the board continues to operate correctly through these events — not just survive them.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. The board is physically here, inspected, and packed.

Standard dispatch process:

• Payment confirmed → warehouse pick and ESD-safe packing within 4 hours (business hours)
• DHL Express or FedEx International Priority label generated same day
• Tracking number sent to buyer within 24 hours of handover to carrier
• Transit time: 2–4 business days to Europe and North America; 1–3 days to Southeast Asia and Middle East
• Commercial invoice and packing list provided for customs clearance
• Declared value and HS code (8537.10 / 8538.90 depending on destination customs requirements) documented accurately

For critical shutdowns where hours matter, contact us directly on WhatsApp before placing the order. We can confirm stock, generate a proforma invoice, and coordinate same-day dispatch for payments received before 14:00 CST.

Import duties and taxes are the buyer’s responsibility. We can assist with documentation but cannot pre-pay destination country duties.
