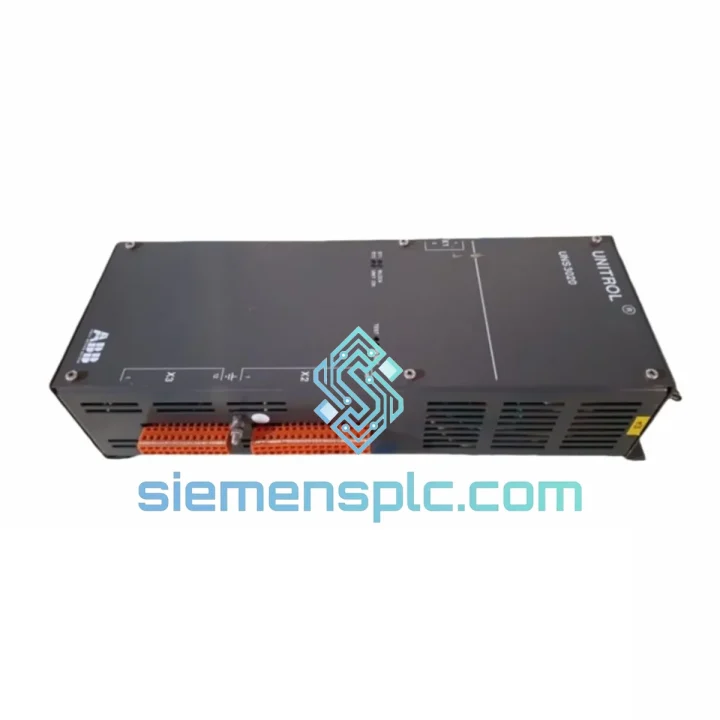

ABB UNS3020A-Z HIEE205010R0001 Ground Fault Relay

ABB UNS3020A-Z HIEE205010R0001 — Stop the Clock on Your Downtime

Every minute a generator or excitation system sits offline, the losses compound. A tripped ground fault relay, a failed UNITROL protection board, a plant manager breathing down your neck — you know the drill. The ABB UNS3020A-Z (HIEE205010R0001, V3) is on our shelf in Xiamen right now. We ship DHL/FedEx express within 24 hours of order confirmation. That’s the difference between a 2-day fix and a 2-week procurement nightmare.

This is not a listing for browsing. This is a listing for engineers who need the part today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that swapping a ground fault relay is never just a swap. Here’s what bites engineers on the UNS3020A-Z replacement:

1. Firmware Version Mismatch
The HIEE205010R0001 V3 hardware must pair with a compatible UNITROL firmware revision. Before pulling the old board, document the firmware version displayed on the UNITROL HMI or via the service tool. If the replacement unit ships with a different firmware baseline, a firmware flash is required before commissioning. Skipping this step causes the relay to report spurious earth fault trips immediately after energization — a classic post-replacement headache.

2. Address Configuration / Self-Addressing
The UNS3020A-Z uses the UNITROL internal bus for communication. On power-up, the module performs a self-addressing sequence. Ensure no other module on the same rack occupies a conflicting slot address. If you’re replacing a failed unit mid-rack, power down the entire excitation cubicle before extraction — hot-swapping this board is not supported and risks corrupting the bus arbitration table.

3. DIP Switch Settings
Check the DIP switch bank on the board edge before installation. The sensitivity threshold for ground fault detection (typically expressed as a percentage of rated insulation resistance) is hardware-configured via these switches. Copy the settings from the failed unit before disposal. If the old board is unreadable, refer to the UNITROL system commissioning record or ABB document 3BHS135705 for default factory settings per application type.

4. Common Fault Codes to Diagnose Before Replacement

• EF TRIP / GF ALARM — Genuine earth fault detected. Verify field winding insulation resistance with a 500V Megger before condemning the relay. If IR > 1MΩ, the relay itself is suspect.
• COMM FAULT on UNITROL HMI — Loss of communication with the UNS3020A-Z. Check ribbon cable seating and bus termination resistors before ordering a replacement board.
• RELAY FAIL / SELF-TEST ERROR — Internal self-diagnostic failure. This is the definitive indicator that the board requires replacement. Log the fault timestamp and cross-reference with any recent voltage transient events (AVR hunting, field forcing).
• Intermittent GF Trips at Load — Often caused by capacitive coupling in long cable runs rather than a failed relay. Perform a cable insulation test at rated voltage before replacing the module.

5. Post-Installation Verification
After installation, perform a secondary injection test using a calibrated current source to verify the relay’s pickup threshold matches the system protection coordination study. Do not rely solely on the UNITROL self-test routine for commissioning sign-off on critical generator protection.

Reliability in Harsh Conditions

The UNS3020A-Z was not designed for a climate-controlled server room. ABB engineered this module for the realities of industrial plant environments — and the field record backs it up.

Vibration Resistance: The PCB assembly uses conformal coating and through-hole component anchoring on critical signal paths. In marine propulsion applications (where this relay is widely deployed), it withstands continuous vibration profiles per IEC 60068-2-6, including resonance sweep testing. Connector retention is reinforced to prevent intermittent contact loss under mechanical stress — a failure mode that plagues cheaper third-party alternatives.

Thermal Tolerance: Rated for operation across a wide industrial temperature range. The onboard voltage regulation and reference circuits are temperature-compensated, meaning the ground fault detection threshold remains stable whether the excitation cubicle is running at 20°C on a mild day or 55°C in a tropical plant room with marginal ventilation. Thermal cycling tests per IEC 60068-2-14 validate long-term solder joint integrity.

Humidity & Condensation: The conformal coating applied to the PCB provides protection against humidity ingress, salt fog, and condensation — critical for coastal industrial sites and offshore platforms. Units destined for marine classification (DNV, Lloyd’s, ABS) undergo additional environmental qualification testing as part of the UNITROL system type approval process.

EMC Immunity: In environments with large variable-frequency drives, transformer switching, and bus faults, electromagnetic interference is a constant threat to sensitive protection relays. The UNS3020A-Z meets IEC 61000-4 series immunity requirements, including surge, EFT/burst, and conducted RF immunity — ensuring the relay does not produce nuisance trips or miss genuine faults due to electrical noise.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. Here’s exactly how your order moves:

Step 1 — Order Confirmation (Day 0): Payment confirmed, order released to warehouse. Part pulled, inspected, and photographed. Export documentation prepared (commercial invoice, packing list, HS code declaration).

Step 2 — Packaging (Day 0–1): The UNS3020A-Z is packed in anti-static shielding bag, surrounded by high-density foam insert, and placed in a double-wall export carton. Fragile and ESD-sensitive labels applied. No exceptions.

Step 3 — Customs Clearance (Day 1): Export customs declaration filed through our licensed freight forwarder. HS Code 8537.10 (or applicable) declared. For destinations requiring CITES, dual-use, or specific import permits, we advise in advance — no surprises at destination customs.

Step 4 — DHL / FedEx Handover (Day 1): Shipment handed to carrier at Xiamen hub. Tracking number issued to buyer within 2 hours of pickup scan. Transit times: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days, Middle East 4–7 days.

Step 5 — Delivery & Documentation: Full shipping documentation provided for your plant’s incoming inspection records. If your site requires a Certificate of Origin or specific customs declaration format, advise at time of order.

We have shipped ABB UNITROL components to power plants, petrochemical facilities, and shipyards across 40+ countries. Customs clearance issues are rare — and when they occur, we resolve them, not you.

Contact Information

Ready to place an order or need a lead time confirmation before raising a PO?

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
