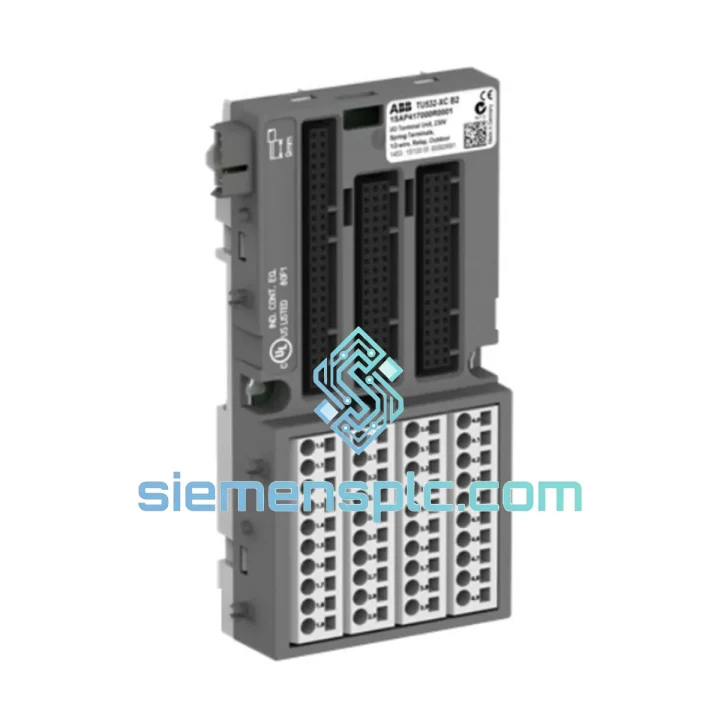

ABB TU532-XC 1SAP417000R0001: 8-Channel Relay Terminal Unit for AC500 XC Extended-Conditions PLC Architecture

The TU532-XC (order code 1SAP417000R0001) is a relay-output terminal unit engineered specifically for the ABB AC500 XC (Extended Conditions) programmable controller platform. Its function within a control loop is unambiguous: it serves as the galvanically isolated switching interface between the PLC’s digital output module and field-side actuators — contactors, solenoid valves, motor starters, and pilot devices — operating at voltages and currents that would otherwise damage solid-state output stages. By relocating the relay switching element to a dedicated terminal unit, the AC500 architecture separates the logic layer from the power-switching layer, a design discipline that directly reduces mean time between failures in high-cycle industrial environments.

The XC designation is not a marketing classification. It denotes a verified hardware specification: the TU532-XC is rated for continuous operation from −40 °C to +70 °C without thermal derating, with a relative humidity envelope of 5 % to 95 % non-condensing. This positions the unit for deployment in offshore platforms, cold-chain logistics facilities, outdoor switchgear enclosures, and sub-Arctic process plants where standard-grade I/O hardware fails within months of commissioning.

The terminal unit mounts directly beneath the corresponding AC500 DO5xx digital output module on a standard EN 60715 TH35 DIN rail. Field wiring terminates on the TU532-XC’s screw terminals, which remain accessible without disturbing the module above. This mechanical arrangement eliminates the need for interposing relay bases, external relay sockets, or supplementary wiring ducts — a measurable reduction in panel assembly labor and a structural improvement in wiring traceability during maintenance audits.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TU532-XC implements a two-layer isolation architecture. The first isolation boundary exists between the AC500 internal I/O bus and the DO module’s output driver stage — handled by the digital output module itself via optocoupler isolation on each channel. The second boundary is the relay contact gap within the TU532-XC, which provides galvanic separation between the PLC’s 24 V DC logic supply domain and the field-side AC or DC load circuit. This dual-boundary topology means that a field-side fault — a short circuit, a voltage transient from inductive load switching, or a ground potential difference — cannot propagate back through the relay coil into the DO module’s driver stage, because the coil drive current is already isolated from the field contact circuit by the relay’s physical construction.

The changeover (Form C) contact configuration is a deliberate hardware choice. Unlike normally-open-only relay outputs, Form C contacts allow the control engineer to implement both energize-to-actuate and de-energize-to-actuate logic on the same channel without adding external relay hardware. This is particularly relevant in fail-safe circuit design, where the normally-closed contact path must remain conductive during a power loss event — a requirement common in emergency stop circuits, valve-closed-on-fault logic, and safety interlock chains.

The XC-grade relay coil and contact assembly is specified for operation at −40 °C, a temperature at which standard relay contact lubricants become viscous and mechanical operation becomes unreliable. ABB’s XC component selection addresses this through dry-contact relay designs and materials qualified for low-temperature mechanical performance. The result is a relay terminal unit that maintains specified switching times and contact resistance values across the full −40 °C to +70 °C envelope without requiring enclosure heating elements — a direct reduction in panel BOM cost and energy consumption in cold-environment installations.

EMC performance is addressed at the terminal unit level through the physical separation of field wiring (on the TU532-XC screw terminals) from the PLC backplane bus. Inductive load switching generates voltage transients in the range of several hundred volts with rise times in the nanosecond range. The relay contact gap attenuates these transients before they can couple into the I/O bus. For applications with particularly aggressive inductive loads — large motor starters, transformer primaries — external RC snubber circuits or varistors can be wired directly at the TU532-XC terminals without any modification to the PLC module above.

System Integration Benefits

• Direct module-to-terminal-unit mechanical coupling eliminates intermediate wiring between the DO module output pins and the relay coil inputs, reducing connection resistance and the number of potential failure points in the signal path.
• Standardized screw terminal field wiring on the TU532-XC accepts conductors from 0.2 mm² to 2.5 mm² (AWG 24–12), covering the full range of field cable cross-sections used in industrial panel wiring without requiring ferrule adapters.
• Channel-by-channel relay isolation means a field-side fault on one output channel does not affect the switching state or contact integrity of adjacent channels — a structural advantage over shared-common relay output modules.
• Deterministic switching latency: relay operate time is specified at ≤ 10 ms, and release time at ≤ 5 ms, providing predictable output response timing for PLC ladder logic that depends on output confirmation feedback.
• No firmware dependency: the TU532-XC contains no programmable logic. Its behavior is entirely determined by the coil drive signal from the DO module above it. This eliminates firmware version compatibility issues during system upgrades and simplifies spare-parts management.
• Diagnostic transparency: the AC500 DO module above the TU532-XC provides per-channel open-load and short-circuit diagnostics accessible via the AC500 CPU’s diagnostic buffer and PROFIBUS/PROFINET diagnostic frames — without requiring any additional diagnostic hardware at the terminal unit level.
• Modular replacement without rewiring: the TU532-XC’s field wiring remains on the terminal unit when the DO module above is removed for replacement or maintenance. This reduces planned maintenance downtime to the time required to swap the DO module, with no field cable disturbance.
• Consistent thermal performance across the AC500 XC system: because the TU532-XC shares the same XC temperature rating as the AC500 XC CPU and I/O modules, the entire control system can be specified to a single environmental class, simplifying enclosure thermal design and eliminating mixed-grade component management.
