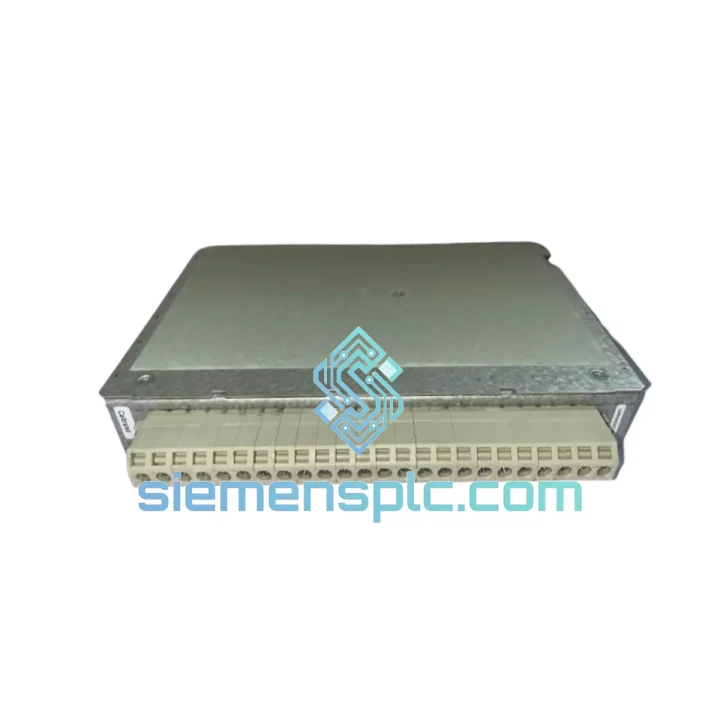

ABB 1MRK002247-ARr01 Protection Relay Module

ABB 1MRK002247-ARr01 TRM Module: Stop the Clock on Your Transformer Outage

Every hour a transformer bay sits unprotected or offline costs real money — production losses, penalty clauses, grid instability. The ABB 1MRK002247-ARr01 TRM (Transformer Relay Module) is a slot-in hardware unit for the RET670/650/615 protection platform. We stock it in Xiamen. We ship it today. That’s the only thing that matters when your substation is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom: Relay HMI shows “TRM Fail” or “Module Missing” alarm
This is the most common trigger for an emergency TRM swap. Before pulling the module, do the following:

• Step 1 – Confirm the fault is hardware, not firmware: Connect PCM600 (ABB’s Protection and Control IED Manager) and check the hardware inventory scan. If the TRM slot shows “Not Responding” after a relay reboot, the module has failed — not a config issue.
• Step 2 – Record current settings before power-down: Export the full IED configuration via PCM600 → File → Export. This preserves your CT ratio settings, differential characteristic curves, and bias slope parameters. You will need to re-import these after module swap.
• Step 3 – Power down the relay chassis: The TRM is NOT hot-swappable in all RET firmware versions. On RET670 Gen 1.x, always power down before removing the TRM. Gen 2.x supports supervised hot-swap — verify your firmware release notes (1MRK504116-UEN).
• Step 4 – Check hardware revision suffix: The suffix “ARr01” denotes a specific hardware revision. Confirm your chassis hardware compatibility matrix accepts this revision. Mismatched revisions can cause backplane communication errors even if the module physically seats correctly.
• Step 5 – Re-import configuration and run self-test: After seating the new TRM, power up and allow the relay to complete its boot sequence (~90 seconds). Re-import the exported IED configuration via PCM600. Run the relay’s built-in self-test (Main Menu → Test → Module Test) and verify all CT input channels report valid measurements before re-enabling protection.
• Step 6 – Verify CT wiring polarity: A common post-swap mistake. If differential protection trips immediately on energization, check CT polarity on HV and LV sides. Reversed polarity causes the relay to see a false differential current equal to twice the load current.

Common fault codes on RET670 after TRM issues:

• HWFAIL_TRM – Hardware failure detected on TRM slot. Replace module.
• ANAIN_SATURATED – CT input channel saturated. Check CT burden and secondary wiring before blaming the TRM.
• DIFF_INRUSH – Differential element operated on inrush. Not a TRM fault — review 2nd harmonic restraint settings.
• COMM_BACKPLANE – Backplane communication lost. Can indicate TRM seating issue or revision mismatch.

Reliability in Harsh Conditions

Substations are not server rooms. The 1MRK002247-ARr01 is built to operate where most electronics fail. ABB’s RET platform hardware undergoes type testing per IEC 60068-2 series — covering vibration, shock, temperature cycling, and humidity endurance. Specific conditions this module is validated against:

• Vibration: Sinusoidal vibration per IEC 60068-2-6 (10–150 Hz, 1g acceleration). Relevant for substations near heavy machinery, compressor stations, or rail infrastructure where structural vibration is continuous.
• Seismic: Tested to IEC 60068-3-3 seismic class. Critical for installations in earthquake-prone regions — Southeast Asia, Japan, South America.
• Thermal Cycling: Validated across -10°C to +55°C operating range with thermal shock testing. Outdoor switchgear panels in tropical climates or desert environments see extreme diurnal temperature swings — this module handles them.
• Humidity & Condensation: Damp heat test per IEC 60068-2-78 (40°C / 93% RH, 56 days). Coastal substations and tropical installations with poor HVAC are the real-world equivalent.
• EMC / Interference: Compliant with IEC 61000-4 series (EFT, surge, conducted RF, radiated RF). In high-voltage switchyards, electromagnetic interference from switching operations is severe — the TRM’s analog front-end is fully shielded and filtered.
• ESD Protection: All analog input channels include transient voltage suppression. A CT secondary open-circuit event — one of the most damaging transients in protection engineering — will not destroy the input stage.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions, individually bagged in anti-static ESD packaging with desiccant, and foam-lined in double-wall cartons. Every unit passes a visual inspection and power-on verification before dispatch.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with direct DHL and FedEx gateway access. Here’s exactly how your order moves:

• Order Confirmed → Same-Day Pick & Pack: Orders confirmed before 14:00 CST are picked, inspected, and packed the same business day. Export documentation (commercial invoice, packing list, certificate of origin) is prepared in parallel.
• Day 1 – Customs Clearance & Handover: Shipment handed to DHL Express or FedEx International Priority. HS code 8537.10 declared. Export license not required for this module — no ITAR/EAR restrictions.
• Day 2–4 – In Transit: DHL Express from Xiamen typically delivers to Europe in 3–4 business days, Middle East in 2–3 days, Southeast Asia in 1–2 days, North America in 4–5 days. FedEx International Priority timelines are comparable.
• Real-Time Tracking: AWB number sent via email within 2 hours of handover. Track directly on DHL.com or FedEx.com — no intermediary, no delays in information.
• Import Duties: Buyer is responsible for import duties and local VAT. We provide accurate commercial invoice values and HS codes to facilitate smooth customs clearance. We do not under-declare values.
• Emergency Freight: For critical outages requiring next-flight-out courier, contact us directly on WhatsApp. We can arrange premium express options with same-day airline booking from Xiamen Gaoqi International Airport.
