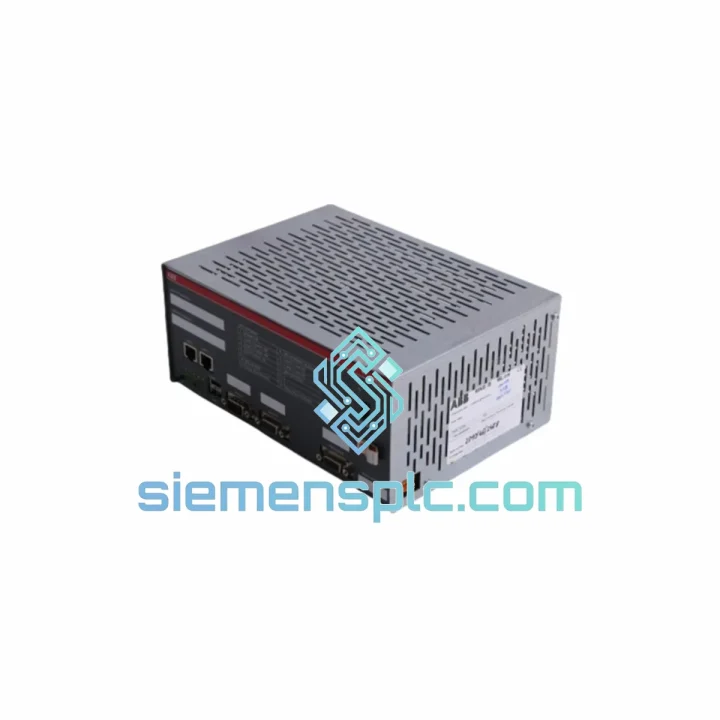

ABB 1TGE102009R1001 Redundant PLC Controller

ABB 1TGE102009R1001 — Stop the Bleed: Every Hour of Downtime Costs More Than This Module

Your line is down. The AC500 redundancy controller has faulted. Maintenance is standing by, the shift supervisor is on your back, and production losses are ticking up by the minute. You don’t need a sales pitch — you need the part, verified, packed, and moving toward your dock today.

The ABB 1TGE102009R1001 is a hot-standby redundant controller module within the AC500 PLC platform. It is the backbone of fault-tolerant control architectures deployed in power generation, chemical processing, oil & gas pipelines, and high-availability manufacturing lines. When this module fails, there is no graceful degradation — the redundancy pair collapses and the process stops. That is why we stock it, and that is why we ship same-day.

We have sourced, inspected, and dispatched this exact part number to plant engineers across Southeast Asia, the Middle East, and Europe. Our warehouse in Xiamen maintains buffer stock precisely for unplanned outages like yours. No waiting on factory lead times. No distributor runaround. Direct dispatch via DHL Express or FedEx International Priority.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345 — Response within 15 minutes during business hours.

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Replacing the 1TGE102009R1001 in a live AC500 redundant system is not a plug-and-swap job. Get this wrong and you will take down both controllers simultaneously. Here is the field procedure that actually works:

Step 1 — Confirm which unit is PRIMARY before touching anything. Check the LED status on both controllers. The primary unit shows a solid green RUN LED; the standby shows a flashing green SYNC LED. Never remove the primary first. If both are showing fault states, you have a deeper issue — call us before proceeding.

Step 2 — Force a controlled switchover. Using Automation Builder or the hardware STOP/RUN switch, force the standby to take over as primary. Verify the process is running on the standby before proceeding. This is your safety net.

Step 3 — Power down only the faulted unit. The AC500 redundancy architecture allows hot removal of the standby controller without process interruption. Do not remove both simultaneously under any circumstances.

Step 4 — Check the redundancy link cable. The fiber-optic or copper redundancy link between the two CPUs is a common failure point that mimics a controller fault. Before condemning the module, swap the cable first. A damaged link will prevent SYNC and throw misleading fault codes.

Step 5 — Firmware version matching is mandatory. The replacement 1TGE102009R1001 must run the same firmware version as the active primary. Mismatched firmware will prevent the SYNC handshake and the standby will never come online. Use Automation Builder to check the active unit’s firmware version before inserting the replacement. If the replacement ships with a different firmware, update it offline before installation.

Step 6 — Address configuration. The AC500 redundancy module uses a hardware address switch (rotary or DIP depending on revision) to designate PRIMARY (address 1) or STANDBY (address 2). Verify the switch position on the replacement matches the role you are installing it into. A wrong address setting will cause both units to attempt to claim primary — resulting in a split-brain fault and immediate process shutdown.

Common fault codes to know:

• ERR LED solid red: Internal hardware fault — module requires replacement.
• SYNC LED off on standby: Redundancy link failure or firmware mismatch. Check cable first.
• Both units showing RUN: Address switch misconfiguration — split-brain condition. Power down standby immediately.
• Standby stuck in INIT: Firmware version mismatch preventing synchronization handshake.

Reliability in Harsh Conditions

The AC500 platform was not designed for climate-controlled server rooms. It was built for the environments where automation actually lives — petrochemical plants with corrosive atmospheres, offshore platforms with constant vibration, steel mills with electromagnetic interference dense enough to kill lesser hardware.

The 1TGE102009R1001 is rated for continuous operation from -25°C to +60°C ambient, covering everything from Siberian pipeline stations to equatorial palm oil refineries. The conformal-coated PCB resists humidity and condensation ingress that would corrode standard industrial boards within months. Vibration resistance meets IEC 60068-2-6 test specifications — the module will not develop intermittent faults from the mechanical resonance of pump skids or compressor trains running nearby.

EMC immunity is certified to IEC 61000-4 series, which matters in switchgear rooms where VFDs and contactors generate conducted and radiated interference that can corrupt lesser controllers. The AC500 CPU architecture includes hardware watchdog circuits that detect internal faults within milliseconds and trigger the redundancy switchover before the process even registers a hiccup.

Every unit we dispatch has been stored in ESD-controlled, climate-regulated conditions. Shelf life is not an afterthought — we rotate stock and track storage duration. You will not receive a module that has been sitting in a humid warehouse for three years and is already degraded before it reaches your panel.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient export cities on the mainland, with direct DHL and FedEx gateway connections. Here is what the timeline looks like from your purchase order to your receiving dock:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority, your choice.
• Transit to Southeast Asia (SG, MY, TH, ID, VN): 1–2 business days door-to-door.
• Transit to Middle East (AE, SA, QA, KW): 2–3 business days.
• Transit to Europe (DE, NL, FR, GB, PL): 2–4 business days.
• Transit to Americas (US, CA, MX, BR): 3–5 business days.

Every shipment includes a commercial invoice, packing list, and certificate of origin for customs clearance. We handle HS code classification (HS 8537.10) and can provide a proforma invoice for advance customs pre-clearance in markets that support it. For customers in the EU, we can ship DAP (Delivered At Place) with import duties pre-calculated so there are no surprise charges at the border.

Packaging is anti-static bubble wrap inside a rigid corrugated outer carton, with shock-indicator labels. If the carrier damages the shipment in transit, the indicator tells you immediately and we initiate a replacement claim on your behalf — you are not left arguing with a courier about whether the damage happened before or after pickup.

Tracking numbers are sent within 2 hours of dispatch. For critical shipments, we can arrange a dedicated courier escort for the first leg if your plant is in a remote location with unreliable last-mile delivery.
