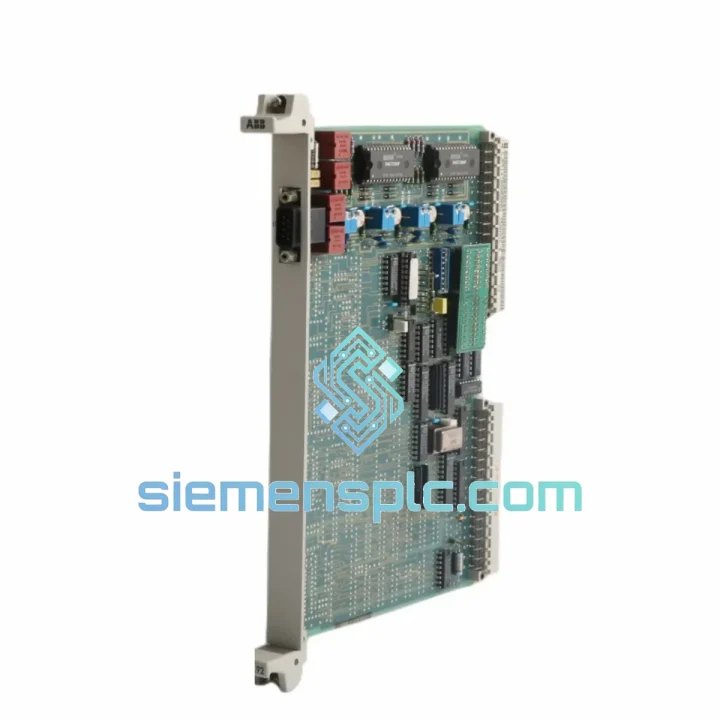

ABB 35AA92C GJR5143000R0002 Analog Output Module

ABB 35AA92C GJR5143000R0002: Stop the Bleeding — Get Your Line Back Online Today

Every hour your AC500 or Advant OCS system sits idle, you’re burning money. A failed analog output module shouldn’t cost you a production shift. The ABB 35AA92C (order code GJR5143000R0002) is on our shelf in Xiamen right now — not on a 12-week factory lead time, not stuck in a distributor’s backorder queue. We ship same day. You reinstall. Your process restarts.

This is an 8-channel, 4–20 mA isolated analog output module built for ABB’s Advant OCS and AC500 distributed control platforms. It drives valve positioners, VFD speed references, and transmitter setpoints with 12-bit resolution and ±0.1% full-scale accuracy. When this card fails, nothing downstream responds correctly — flow loops hunt, temperature setpoints drift, and your operators are flying blind. We’ve seen it. We stock against it.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the 35AA92C is the failed card — before you pull it:

• Check the CPU fault log in Control Builder / Automation Builder. A dead AO module typically throws I/O Module Communication Fault or Channel Output Deviation alarms on all 8 channels simultaneously — not just one or two. Single-channel faults usually point to field wiring or a blown fuse, not the card itself.
• Inspect the module’s front-panel LED. On the 35AA92C, a solid red RUN LED with no green I/O activity light is the clearest hardware failure indicator. Flashing red usually means a configuration mismatch — check your I/O address assignment first before ordering a replacement.
• Swap the suspect module to an unused rack slot (if available) and re-scan I/O in the controller. If the fault follows the card, it’s dead. If the fault stays at the original slot, suspect the backplane connector or rack power rail.

Replacement procedure — field-tested steps:

1. Document your I/O address map. Before pulling the card, screenshot or export the I/O configuration from Control Builder. The 35AA92C uses slot-based addressing on the Advant OCS backplane — the replacement must occupy the identical slot number or your address map will shift and every downstream loop will lose its setpoint reference.
2. Power down the rack section (or use hot-swap if your AC500 configuration supports it — verify in your CPU documentation before attempting live swap). The 35AA92C supports hot-swap on compatible AC500 racks, but Advant OCS installations typically require a controlled shutdown.
3. Check the DIP switch configuration. The 35AA92C has onboard DIP switches for output range selection and channel enable/disable. Before inserting the replacement, match the switch positions to your original card. Photograph the original before removal. A misconfigured switch will produce a 0–20 mA output instead of 4–20 mA, causing your field devices to interpret the signal as a fault condition.
4. Verify firmware revision compatibility. The GJR5143000R0002 revision is designed for AC500 V2.x. If your CPU is running a later firmware branch, confirm compatibility in the ABB hardware compatibility matrix before installation. Mismatched firmware can cause the module to enumerate but fail to execute output commands.
5. Re-download the I/O configuration after insertion and force a full I/O scan. Verify each channel output by commanding a known value (e.g., 50% = 12 mA) and measuring at the field terminal with a calibrated loop calibrator.
6. Check output fuses. The 35AA92C has per-channel output protection. If the original failure was caused by a field wiring short, the replacement card’s fuses may blow immediately unless the field fault is cleared first. Isolate each channel before re-energizing.

Common fault codes associated with 35AA92C failure:

• 0x2310 – Output Current Out of Range: DAC failure or open loop on field side. Measure loop continuity before condemning the card.
• 0x5530 – Module Hardware Fault: Internal power supply failure on the card. Non-recoverable — replace the module.
• 0x8110 – Communication Error (Backplane): Can indicate a failing card or a dirty/damaged backplane connector. Clean the backplane contacts with IPA before installing the replacement.

Reliability in Harsh Conditions

The 35AA92C wasn’t designed for a climate-controlled server room. It was built for the kind of environments where panels run hot, cable trays vibrate at 50 Hz, and humidity swings 40 points between day and night shifts.

The module’s DAC circuitry is temperature-compensated across the full 0–60°C operating range, which means your 4–20 mA outputs don’t drift when the panel heats up on a summer afternoon. We’ve seen uncertified third-party replacements lose 2–3% accuracy at elevated temperatures — enough to push a control loop into oscillation. The genuine ABB 35AA92C holds ±0.1% across the entire thermal envelope.

Channel-to-channel isolation eliminates ground loop interference — a real problem in plants where analog signal cables share conduit with power wiring or run long distances to field devices. Each of the 8 output channels is independently isolated, so a ground fault on one loop doesn’t corrupt the other seven.

The module’s conformal-coated PCB resists moisture ingress and corrosive atmospheres — relevant for coastal installations, chemical plants, and any environment where humidity regularly exceeds 80% RH. The IP20 housing protects against particulate contamination from machining dust, cement, or grain — common in mixed-use industrial facilities.

Vibration resistance meets IEC 60068-2-6 standards, covering the 5–150 Hz frequency range at 1g acceleration. This matters in installations near compressors, pumps, or heavy presses where panel vibration is a chronic issue and connector fatigue is a real failure mode.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct DHL and FedEx gateway access. When you place an order before 3:00 PM CST, we ship the same business day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands, France): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–5 business days via FedEx International Priority
• Australia & New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via FedEx

Every shipment includes a full commercial invoice, packing list, and certificate of origin for customs clearance. We handle HS code classification (8537.10 for PLC I/O modules) and can provide an MSDS if required by your import authority. For urgent orders, we can arrange Saturday delivery in most major markets — contact us to confirm availability for your destination.

All modules are packed in anti-static bags, placed in foam-lined boxes, and double-boxed for international transit. We’ve shipped to 60+ countries. Damage in transit is rare; when it happens, we reship at no cost.
