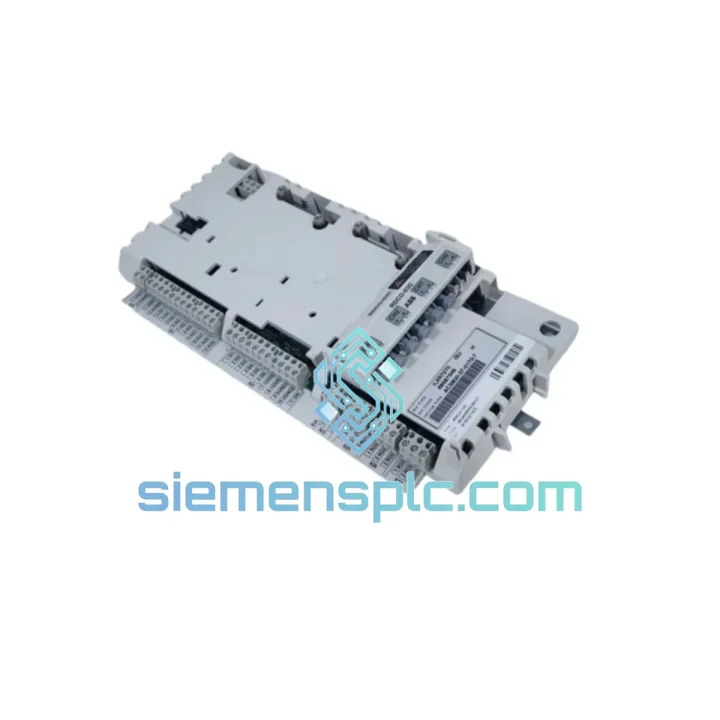

ABB 3AUA0000043722 RDCU-12C Drive Control Unit

ABB RDCU-12C (3AUA0000043722) — Every Hour of ACS800 Downtime Costs More Than This Board

Your ACS800 drive is dead. The line is stopped. Maintenance is on the phone. You already know the RDCU-12C is the culprit — the control board that runs everything: DTC motor algorithms, DDCS fiber comms, fieldbus handshaking, parameter storage. Without it, the drive is a steel box. We stock the ABB RDCU-12C (3AUA0000043722) and ship same-day from Xiamen via DHL Express. Most customers in Southeast Asia and the Middle East have the board in hand within 48–72 hours. That’s the math that matters when your plant is bleeding $10,000 per hour in lost production.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on ACS800 drives, these are the failure patterns that point directly to the RDCU-12C:

Fault Code FF52 / FF53 (DDCS Communication Loss): If CH1 or CH2 fiber links are intact but the drive still throws FF52, the RDCU’s DDCS transceiver has failed internally. Swapping fiber cables won’t fix it. Replace the board.

Drive Powers Up But Won’t Accept Parameters: The RDCU-12C holds all drive parameters in onboard flash. If the board boots but parameter upload via DriveWindow or the CDP panel fails with a checksum error or communication timeout, the flash memory is corrupted. A new board is the only path forward — there is no field-level flash repair.

Adaptive Program Execution Fault (AO fault group): If the drive was running a custom Adaptive Program and the RDCU fails mid-cycle, the AP will not restart on a replacement board automatically. Before pulling the old board, attempt a parameter backup via RS-232 to CDP panel or DriveWindow. If the old board is completely dead, you’ll need to re-enter the AP from your commissioning documentation.

Replacement Procedure — Field Checklist:

• Power down the drive fully. Verify DC bus voltage is below 50V with a multimeter before touching any boards — ACS800 capacitors hold charge for several minutes after power-off.
• Back up all parameters to the CDP panel or via DriveWindow over RS-232 before removing the old RDCU-12C. If the board is non-responsive, document all parameter groups from your last commissioning record.
• Note the DDCS fiber connections: CH0 (panel), CH1 (master/follower or RDCO), CH2, CH3. Photograph before disconnecting. Fiber polarity matters — TX to RX, RX to TX.
• The RDCU-12C slides into the drive chassis on a card guide. No DIP switches or address jumpers on this board — addressing is handled via software parameter 70.01 (Node Address) for DDCS network configurations.
• After seating the new board, power up and check firmware version via parameter 33.01. If the replacement board carries a different firmware revision than your original, verify compatibility with your drive frame and application. Firmware mismatch between RDCU and RMIO boards can cause fault FF61 (Control Board Incompatibility).
• Restore parameters from backup. Run an ID Run (parameter 99.10) if motor data was lost or if the drive is being commissioned on a new motor.
• For multi-drive systems: re-establish the DDCS master/follower hierarchy via parameters 70.01–70.06 before enabling the follower drives.

Common Post-Replacement Faults and Fixes:

• FF61 — Control Board Incompatibility: Firmware version mismatch between RDCU and RMIO. Download matching firmware via DriveWindow.
• FF52 — DDCS CH1 Fault after replacement: Check fiber TX/RX polarity. Reconnect and cycle power.
• A2081 — Parameter Restore Warning: Normal after parameter upload to a new board. Confirm all critical parameters (motor data, application macros, AI/AO scaling) manually.
• Drive trips on F0001 (Overcurrent) immediately after ID Run: Motor cable phasing or motor data entry error. Recheck parameters 99.04–99.06.

Reliability in Harsh Conditions

The RDCU-12C was not designed for a climate-controlled server room. ABB built this board for the environments where drives actually live: pump stations with condensation, offshore platforms with salt spray, steel mills with airborne metallic dust, and outdoor substations cycling between -15°C winter nights and +50°C summer afternoons.

The conformal coating on the PCB is not decorative — it’s a polyurethane barrier that prevents conductive contamination from bridging signal traces. The fiber optic DDCS interface eliminates ground loop interference that would corrupt copper-based communication in high-EMI drive rooms. The onboard flash memory is rated for industrial temperature cycling, not consumer-grade storage that degrades after a few hundred thermal cycles.

In vibration-intensive applications — compressors, crushers, marine propulsion — the board’s card-edge connector and chassis mounting system are designed to maintain contact under continuous mechanical stress. We have supplied RDCU-12C boards to mining operations in Chile and offshore platforms in the North Sea where the operating environment would destroy lesser electronics within months. The boards run. That’s the point.

Every unit we ship has been visually inspected under magnification for PCB damage, connector pin integrity, and component condition. Boards showing signs of thermal stress, corrosion, or physical impact are rejected. You receive a board that is ready to install, not one that will fail again in six months.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL Express and FedEx International Priority access. This is not a drop-shipping operation. Stock is physically on our shelves.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Vietnam): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, Poland): 3–4 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• Australia & New Zealand: 2–3 business days via DHL Express

All shipments include full commercial invoice, packing list, and country of origin documentation. ESD-safe anti-static packaging with foam cushioning is standard — the board arrives in the same condition it left our warehouse. For urgent orders placed before 14:00 CST, same-day dispatch is available. Tracking numbers are provided within 2 hours of shipment.

For orders requiring export licenses, customs pre-clearance documentation, or specific HS code declarations, contact us before ordering. We handle complex export logistics daily and can prepare the paperwork your customs broker needs.
