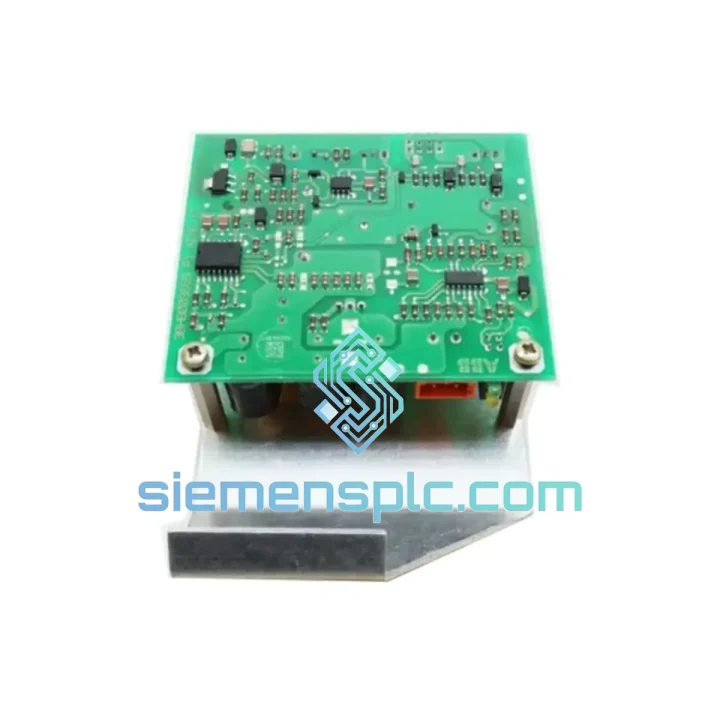

ABB 3BHB003688R0101 PC Board Assembly – AC800M

ABB 3BHB003688R0101: CEX-Bus Board Assembly for AC800M Distributed Control Systems

The ABB 3BHB003688R0101 is a precision-manufactured PC Board Assembly engineered for deployment within the AC800M controller platform — ABB’s high-availability distributed control system (DCS) architecture used extensively across power generation, oil and gas processing, pulp and paper manufacturing, and municipal water treatment facilities. This board occupies a structurally non-negotiable position within the AC800M rack: it forms the physical and electrical interface between the CPU module and the CEX-Bus backplane, the proprietary synchronous serial interconnect that governs deterministic data exchange between the central processor and all attached I/O modules.

In closed-loop process control — where scan-cycle consistency directly determines the stability of PID regulation for parameters such as reactor temperature, column pressure differential, or turbine shaft speed — the integrity of this board’s signal path is not a secondary concern. Degradation in CEX-Bus signal quality introduces latency variance into the data acquisition pipeline, which manifests as increased process variability at the control output. For applications operating at 1 ms scan periods, the permissible propagation budget across this board is measured in microseconds. There is no engineering margin for substandard component selection or compromised PCB fabrication.

The 3BHB003688R0101 is manufactured to ABB’s internal production specification, incorporating controlled-impedance trace routing, component-level incoming screening, and conformal coating applied to IPC-CC-830B standards. It is the only replacement path for AC800M installations that avoids firmware-level re-parameterization, preserving the existing application configuration and reducing maintenance downtime to a functional verification sequence. Procurement from unverified sources introduces risk of counterfeit markings, non-compliant component substitutions, or absent conformal coating — defects that pass visual inspection but produce field failures under sustained thermal cycling and electrical stress.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3BHB003688R0101 board interfaces with the AC800M’s CEX-Bus through a cycle-locked synchronous protocol. The CEX-Bus clock is sourced from the CPU module’s master oscillator, and all data transactions are framed within fixed time slots aligned to the controller’s configured scan period. The board’s internal routing architecture latches I/O data from the backplane connector into the CPU’s memory-mapped register space within a bounded propagation window. At a 1 ms scan period — the minimum supported by the AC800M — this window is measured in microseconds, leaving no tolerance for signal integrity deficiencies introduced by substandard PCB fabrication or non-compliant component substitution.

The six-layer PCB stack-up places dedicated power and ground planes between signal routing layers. This construction provides two measurable engineering benefits: it establishes a low-impedance return path for high-frequency switching currents, suppressing ground bounce that would otherwise corrupt logic-level signals on adjacent traces; and the ground planes function as Faraday shields, attenuating capacitively coupled interference from external sources. In AC800M rack installations co-located with variable-frequency drives or high-current motor control centers — a standard arrangement in process plant electrical rooms — this shielding architecture is the primary barrier against conducted EMI ingress into the control bus.

Differential signal pairs on the CEX-Bus interface are length-matched to within ±50 mil across the board’s routing layer, preventing skew accumulation that would violate the bus receiver’s setup and hold time requirements at operating clock rates. Termination resistors are placed within 200 mil of the connector pins, minimizing stub reflections on the transmission line. These parameters are not incidental — they are the measurable design constraints that determine whether a board sustains error-free operation through 15 years of thermal expansion cycling in a live process environment, or accumulates intermittent bit errors that manifest as unexplained controller faults during peak load periods.

The board also participates in the AC800M’s hardware redundancy arbitration layer. In a hot-standby CPU configuration, both the active and standby controllers maintain synchronized state through a dedicated redundancy link. The 3BHB003688R0101’s arbitration logic monitors link health and participates in the switchover handshake, with failover completion times in the single-digit millisecond range — a performance envelope that keeps most process control loops within acceptable deviation bands during a CPU transition event without requiring operator intervention.

System Integration Benefits

• Deterministic Scan-Cycle Execution: CEX-Bus synchronization locks I/O data acquisition to the CPU’s scan clock, eliminating variable latency that would introduce instability in fast-response control loops such as compressor surge protection or boiler drum level regulation operating at sub-10 ms scan periods.
• Sub-10 ms Hot-Standby Failover: The board’s redundancy arbitration logic supports the AC800M’s CPU switchover protocol, maintaining process continuity without loop re-initialization or operator intervention during a primary controller fault event.
• Zero-Parameterization Board Replacement: Recognized by AC800M firmware as a direct replacement in standard configurations, reducing post-swap commissioning to a functional verification sequence — typically under 30 minutes for qualified maintenance personnel — rather than a full re-parameterization cycle.
• Fault Code Granularity: Hardware fault flags exposed to the AC800M’s self-diagnostic layer are surfaced in System 800xA with specific fault codes, enabling maintenance teams to distinguish between a board-level failure, a backplane connector fault, and a CEX-Bus communication error without physical disassembly of the rack.
• Industrial EMC Hardening: Multi-layer ground plane construction and differential signal routing provide measured immunity to conducted interference from VFDs, contactors, and high-current bus bars — the dominant noise sources in process plant MCC rooms where AC800M controllers are routinely co-located.
• 20 °C Component Thermal Margin: All active and passive components are rated at minimum 20 °C above the board’s maximum specified operating temperature, providing measurable headroom for installations where panel cooling is marginal or ambient temperatures vary between 35 °C and 50 °C across seasonal cycles.
• Live-Insertion Compatibility: In AC800M rack configurations supporting hot-plug operation, the board can be replaced without a full controller shutdown, eliminating the process upsets and production losses associated with cold-restart maintenance windows in continuous-process facilities.
• Long-Horizon Spare Parts Availability: As a catalogued ABB part number with established aftermarket supply through specialist distributors, the 3BHB003688R0101 remains accessible for AC800M installations operating on 15–20 year asset lifecycles, independent of OEM production schedule changes or platform end-of-life announcements.
• Conformal Coating Moisture Protection: IPC-CC-830B-compliant acrylic coating applied across the board surface provides a measurable barrier against condensation ingress in installations where panel temperature cycling causes humidity fluctuations — a common failure mode in coastal industrial facilities and offshore platform control rooms.
• ESD-Hardened Component Selection: All interface components are selected for ESD withstand ratings consistent with IEC 61000-4-2 Level 4 requirements, reducing the risk of latent damage during field handling and board swap operations performed by maintenance personnel without access to controlled ESD workstations.

Quality Assurance & Global Logistics

Each 3BHB003688R0101 unit dispatched from siemensplc.com undergoes a structured incoming inspection sequence before order allocation. Physical examination verifies PCB surface integrity, component population against the ABB bill of materials, and OEM label authenticity including part number, revision code, and date code. Functional testing is conducted using AC800M-compatible test fixtures that replicate the CEX-Bus electrical environment, validating power rail stability under load, signal continuity across all connector pins, and correct response to bus arbitration sequences.

All handling is performed in ESD-controlled workstations equipped with grounded mats, wrist straps, and ionized air blowers, consistent with ANSI/ESD S20.20 requirements. Units are packaged in conductive foam within anti-static bags, enclosed in double-wall corrugated cartons with foam cushioning rated to withstand 1.2-meter drop tests per ISTA 1A protocol. Shipments originate from Xiamen, China — a primary export hub with established freight connections to Europe, North America, the Middle East, Southeast Asia, and Oceania. Time-critical orders are dispatched via DHL Express or FedEx International Priority, with transit times of 3–5 business days to most destinations. Each shipment includes a commercial invoice, packing list, and certificate of origin to support customs clearance. The 12-month warranty covers verified manufacturing defects and functional failures under normal operating conditions, with replacement or repair processed within agreed lead times upon fault confirmation.
