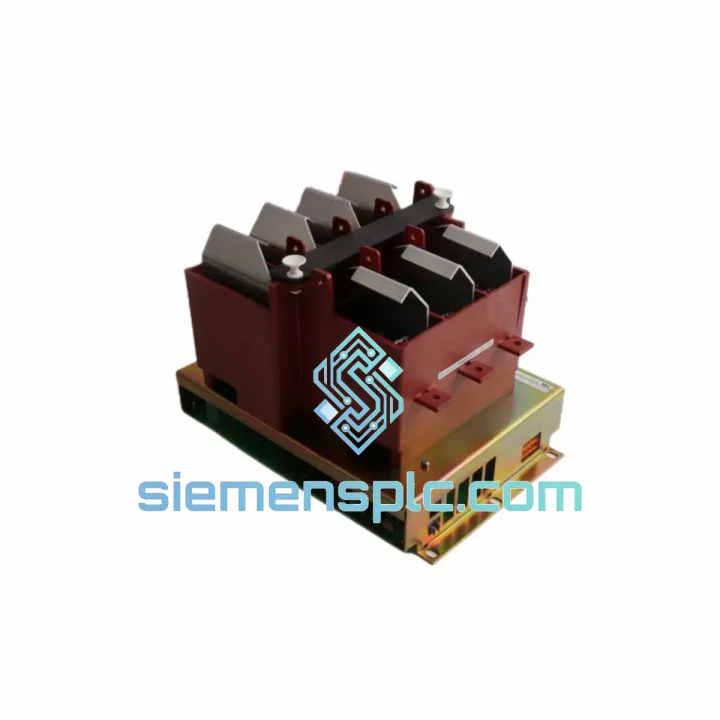

ABB 3BHB004661R0101 KUC711AE Gate Unit Power Supply

ABB 3BHB004661R0101 KUC711AE — Stop the Bleed: Every Hour of Drive Downtime Costs You Real Money

Your ACS6000 or PEC converter is down. The gate unit is dead. Production is stopped. You’ve already called your local distributor — lead time is 6 weeks. That’s not an option.

We stock the ABB 3BHB004661R0101 KUC711AE gate unit power supply. Verified original. Tested before shipment. Out of our Xiamen warehouse within 24 hours. DHL Express to your plant — most destinations in 3–5 business days. This is the part. This is the timeline. Let’s get your line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The KUC711AE fails in predictable ways. Here’s what you’ll see in the field and what to do about it:

Fault Code: Gate Firing Error / IGBT Overcurrent Trip
This is the most common symptom of a failed KUC711AE. The gate unit loses its ability to deliver clean, timed pulses to the IGBT/IGCT. The drive trips on overcurrent because the switching device never fully turns on — it conducts in the linear region and dissipates heat until protection kicks in. If you’re seeing repetitive overcurrent faults with no load-side explanation, pull the gate unit first.

Fault Code: Gate Signal Loss / Gate Power Fault
The KUC711AE has onboard LED indicators. A solid red or extinguished status LED with no gate output voltage confirms the power supply stage has failed. Measure the isolated output rails with a multimeter before condemning the IGBT — a dead gate unit will mimic a shorted switching device.

Replacement Procedure (Field-Verified Steps):

• De-energize the drive fully. Verify DC bus discharge — minimum 5 minutes after main contactor opens. Measure with a calibrated meter. Do not skip this.
• Document the existing KUC711AE slot position and fiber optic cable routing before removal. Photograph if needed.
• Disconnect fiber optic gate signal cables first, then the DC power connector. Handle fiber ends carefully — contamination causes intermittent gate faults post-replacement.
• Slide out the old module. Inspect the slot for debris or signs of arcing.
• Insert the new 3BHB004661R0101. Confirm the R0101 revision matches your drive’s BOM. If your system was originally fitted with R0102, contact us — we can advise on cross-compatibility.
• Reconnect power connector first, then fiber optic cables. Verify fiber seating — a loose fiber will cause immediate gate fault on power-up.
• Power up the drive in local control with no load. Confirm gate unit LED shows green. Run a no-load jog to verify gate timing before reconnecting to process.
• Log the replacement in your maintenance record with date, serial number of the new unit, and fault history.

Configuration Notes:
The KUC711AE does not require DIP switch configuration or firmware flashing in most ACS6000 applications — it is a passive power supply module. However, if your drive uses a multi-phase leg arrangement with multiple gate units per phase, ensure all units in the same phase leg are replaced as a matched set if one shows degradation. Mixed-age gate units in the same leg can cause timing asymmetry and nuisance trips.

Firmware Matching:
The gate unit itself carries no firmware. Firmware compatibility concerns apply to the control board (APBU, RDCU) communicating with it. If you’ve recently updated drive firmware and are now seeing gate faults, check the control board revision compatibility table in the ABB ACS6000 hardware manual before replacing the gate unit.

Reliability in Harsh Conditions

The ABB KUC711AE was engineered for the environments where drives actually live — not climate-controlled server rooms, but steel mill motor control centers, offshore platform converter cabinets, and mining hoist drives where ambient conditions are brutal.

The module’s isolated power supply topology provides inherent immunity to common-mode noise generated by high-frequency IGBT switching. In applications where dV/dt on the DC bus exceeds 10 kV/μs, the galvanic isolation barrier prevents noise coupling back into the control electronics — a failure mode that destroys lesser gate drive designs.

Thermal performance is validated for continuous operation at elevated ambient temperatures typical of enclosed drive cabinets. The power components are selected for long-term reliability under thermal cycling — the expansion and contraction stress that kills solder joints in modules that run hot and cool down between shifts.

Vibration resistance matters in compressor drives, pump stations, and any application mounted near rotating machinery. The KUC711AE’s board-level construction uses conformal coating and mechanically secured connectors that maintain contact integrity under sustained vibration loads.

Humidity and condensation are managed through the module’s sealed construction. In coastal and tropical installations where humidity regularly exceeds 90% RH, the conformal coating prevents surface leakage currents that cause erratic gate behavior in unprotected boards.

Every unit we ship has been stored in climate-controlled conditions in ESD-safe packaging. We do not warehouse modules in uncontrolled environments. When it arrives at your site, it is ready to install — not a unit that’s been sitting in a humid warehouse for three years.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with daily DHL Express and FedEx International Priority flights to major hubs worldwide.

Standard Dispatch Timeline:

• Order confirmed before 14:00 CST → same-day dispatch in most cases
• Order confirmed after 14:00 CST → next business day dispatch
• Export documentation prepared same day: commercial invoice, packing list, certificate of origin

Typical Transit Times (DHL Express / FedEx IP):

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, Poland): 4–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South America (Brazil, Chile, Colombia): 5–8 business days
• Australia / New Zealand: 4–5 business days

All shipments are fully tracked from pickup to delivery. You receive the tracking number within 2 hours of dispatch. For critical downtime situations, we can arrange Saturday delivery and customs pre-clearance documentation on request.

The KUC711AE ships in double-wall corrugated carton with 50mm foam cushioning on all six faces and an inner anti-static bag. It arrives at your site in the same condition it left ours.

Import duties and customs clearance are the buyer’s responsibility. We provide accurate HS code documentation (HS 8537.10) and declared value to facilitate smooth customs processing. For customers in the EU, we can provide EUR.1 movement certificates for preferential duty treatment where applicable.
