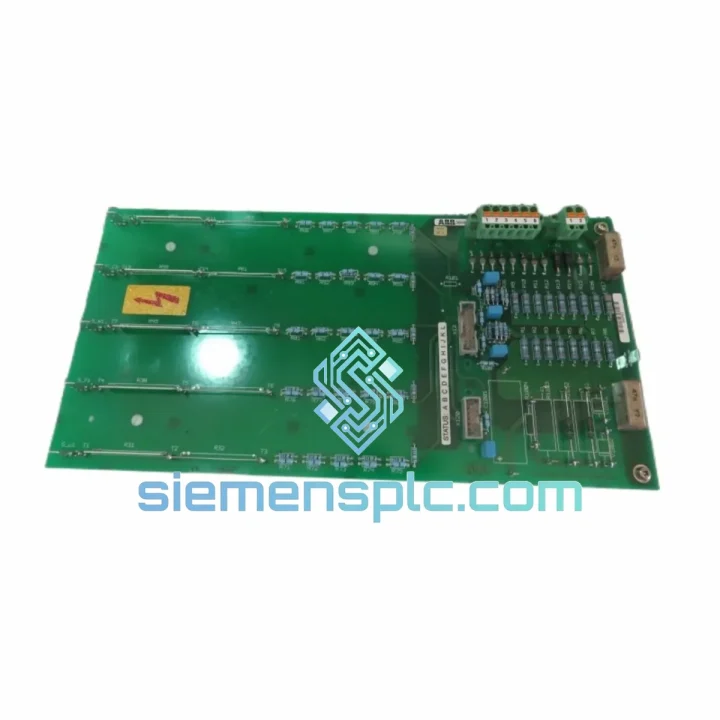

ABB 3BHB00652R0001 PC Board Control Module – DCS Series

ABB 3BHB00652R0001 – Printed Circuit Board Assembly for Distributed Control System Architectures

The ABB 3BHB00652R0001 is a factory-original printed circuit board assembly engineered for deployment within ABB’s distributed control system (DCS) platforms. In a DCS architecture, the PC board layer sits between the field I/O termination hardware and the supervisory processor, executing real-time signal conditioning, local logic arbitration, and inter-module communication. When this layer fails, the control loop loses its computational backbone — process variables go unmonitored, actuator commands cease, and the safety interlock chain is broken. The 3BHB00652R0001 restores that backbone with full OEM specification compliance, ensuring the host DCS resumes deterministic operation without firmware re-parameterization or rack reconfiguration.

ABB’s DCS hardware is deployed across power generation, oil and gas, chemical processing, pulp and paper, and water treatment sectors globally. The 3BHB00652R0001 is a board-level spare that addresses the most common failure mode in aging DCS installations: component-level degradation on the PCB itself, typically manifesting as intermittent signal faults, watchdog resets, or complete module dropout. Sourcing a genuine ABB board — rather than a third-party substitute — preserves the system’s diagnostic transparency and maintains compatibility with ABB’s asset management and condition monitoring software layers.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3BHB00652R0001 employs a multi-layer PCB stack-up that physically separates the analog signal plane from the digital logic plane, reducing capacitive coupling between high-frequency clock signals and low-level analog inputs. This layout discipline is critical in DCS environments where 4–20 mA process signals share cabinet space with 24 V DC switching circuits and fieldbus transceivers.

The board’s backplane interface uses a 96-pin DIN 41612 connector with dedicated ground return pins interleaved between signal lines — a design that suppresses common-mode noise injection from adjacent modules sharing the same rack power rail. The ground plane topology follows a star-point architecture, converging at a single chassis bonding point to prevent ground loop currents that would otherwise introduce offset errors into analog measurement channels.

On the digital side, the board integrates a watchdog timer circuit independent of the main processor clock domain. If the processor fails to service the watchdog within the configured timeout window (typically 100–500 ms depending on firmware configuration), the watchdog asserts a hardware reset without requiring intervention from the supervisory layer. This self-recovery mechanism prevents a single-point processor hang from propagating into a full control loop failure.

The EMC protection architecture includes transient voltage suppression (TVS) diodes on all external-facing I/O lines, rated to clamp inductive load switching transients to within the logic supply rail. Ferrite bead filters on the power input lines attenuate high-frequency conducted emissions from the backplane power bus, maintaining signal integrity on sensitive analog measurement circuits even during adjacent module switching events. The board also incorporates optocoupler isolation on digital I/O interfaces, providing galvanic separation between field-side wiring and the internal logic domain — a standard requirement for installations in hazardous area classifications.

System Integration Benefits

• Drop-in Backplane Compatibility: The 3BHB00652R0001 conforms to ABB’s standard rack mechanical and electrical interface, requiring no hardware modification to the host chassis, backplane wiring, or termination assemblies upon replacement.
• Deterministic Real-Time Response: The board’s local processing architecture handles time-critical signal conditioning tasks at the hardware level, offloading the central DCS processor and maintaining scan cycle determinism even under high I/O load conditions.
• Diagnostic Transparency: ABB’s onboard diagnostic registers expose module health status — supply voltage levels, temperature margins, communication error counters — directly to the DCS asset management layer, enabling predictive maintenance scheduling without physical inspection.
• Firmware Retention: The board stores its operating parameters in non-volatile memory. Upon installation, the DCS controller automatically downloads the current configuration from the system database, eliminating manual re-parameterization and reducing commissioning time to under 15 minutes in most installations.
• Redundancy Arbitration Support: In redundant DCS configurations, the 3BHB00652R0001 participates in the bumpless transfer protocol, synchronizing its internal state with the standby module so that a switchover event produces zero process disturbance — a requirement in continuous process industries where even a 100 ms control gap is unacceptable.
• Galvanic Isolation Architecture: Optocoupler-based isolation on digital interfaces prevents field-side ground faults from propagating into the DCS backplane, protecting adjacent modules and the central processor from fault-induced damage.
• Thermal Margin Compliance: The board is rated for continuous operation at 60 °C ambient, with derating curves documented in ABB’s hardware manual. This margin accommodates the thermal load of fully populated racks in non-air-conditioned industrial enclosures.
• Long-Term Spare Availability: The 3BHB00652R0001 remains available as a stocked spare through specialist distributors, supporting DCS installations that have exceeded the OEM’s active production lifecycle — a common scenario in plants operating 20+ year-old control infrastructure.

Quality Assurance & Global Logistics

Every ABB 3BHB00652R0001 unit supplied by siemensplc.com is sourced through verified channels with full traceability to ABB’s manufacturing documentation. Before dispatch, each board undergoes a structured inspection protocol: visual examination of PCB surfaces, connector pin integrity, and solder joint condition under magnification; functional bench testing under simulated backplane power conditions to verify logic operation and communication interface response; and ESD-safe handling throughout the inspection process using grounded workstations and wrist straps.

Units are packaged in anti-static shielding bags, cushioned with closed-cell foam, and enclosed in double-wall corrugated cartons rated for international air freight handling. Shipments originate from our warehouse in Xiamen, China — a major logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Transit times to major industrial centers in Europe, the Middle East, Southeast Asia, and the Americas typically range from 3 to 7 business days. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment to facilitate customs clearance without delay. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST.
