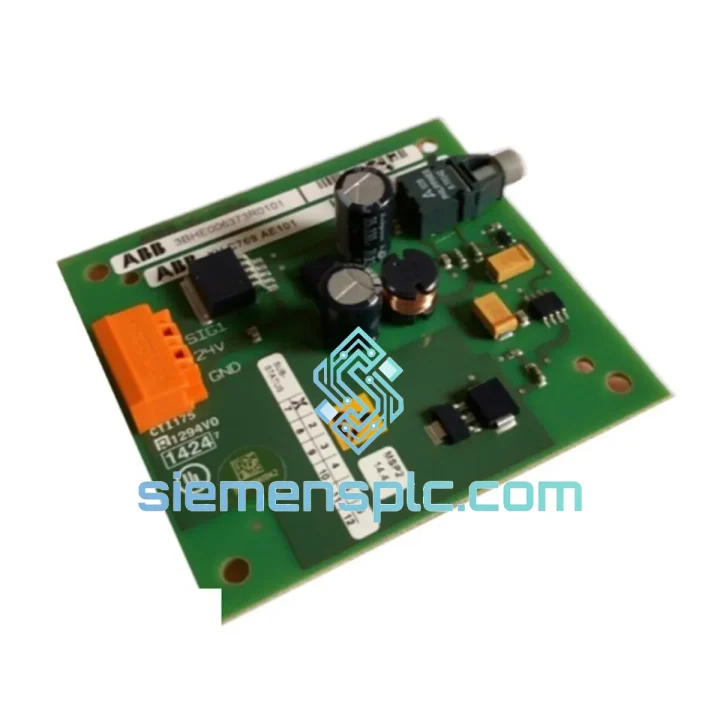

ABB 3BHE006373R0101 Interface Board

ABB 3BHE006373R0101 Interface Board: Stop the Clock on Your Downtime — Ships Today from Xiamen

Every minute your line is down, you’re bleeding money. A failed ABB 3BHE006373R0101 interface board doesn’t just halt one machine — it can cascade through an entire AC800M control loop, taking drives, I/O racks, and DDCS communication with it. We stock this board. We ship it fast. That’s the only thing that matters right now.

This is not a listing page. This is a recovery tool. If you’re reading this at 2 AM with a production line cold and a maintenance team waiting, here’s what you do next:

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 3BHE006373R0101 sits at the intersection of the AC800M processor backplane and the DDCS fiber ring. When it fails, the symptoms are rarely subtle. Here’s what you’re likely seeing and how to confirm it’s the board before you pull the trigger on a replacement order:

Common Fault Signatures:

• DDCS Link Fault / Fiber Ring Break: The most frequent failure mode. The board’s optical transceiver degrades — usually from thermal cycling or contaminated fiber connectors. Check the DDCS status LED on the board face. A solid red or absent green indicates transceiver failure, not a cable issue.
• Intermittent Communication Loss (AC800M ↔ ACS Drive): If your drive trips on “Communication Fault” (fault code 35 on ACS800 / A7CE on ACS880) but the fiber cable checks out clean, the interface board’s internal FPGA logic is the next suspect. Power-cycling the rack will temporarily restore comms — a classic sign of a degraded board, not a cable.
• Backplane Slot Recognition Failure: The AC800M processor (PM851/PM856) may log a “Module Missing” or “Hardware Mismatch” alarm even with the board physically seated. This points to a failed board ID EEPROM — the board cannot handshake with the processor. Reseating will not fix this.
• Elevated CRC Error Count: Visible in ABB DriveWindow or Control Builder. A rising CRC error rate on the DDCS channel with no physical cable changes is a strong indicator of board-level signal degradation.

Replacement Procedure — Key Steps:

1. Document current configuration: Before powering down, export the AC800M project from Control Builder and note all DDCS node addresses assigned to this board’s channel. Node addresses are software-configured but must match the physical ring topology after swap.
2. Power down the rack safely: Follow ABB’s lockout/tagout procedure. The 3BHE006373R0101 is not hot-swappable on standard AC800M racks. Confirm with your system’s safety documentation.
3. Check DIP switch settings (if applicable): Some hardware revisions of this board carry a 4-position DIP switch for termination resistance on the DDCS ring. Match the switch position to the removed board before installing the replacement. Incorrect termination causes ring instability.
4. Inspect fiber connectors: Clean all DDCS fiber connectors with an IEC 61300-3-35 compliant cleaner before reconnecting. A contaminated connector will cause the new board to fault immediately — a common post-replacement mistake.
5. Firmware compatibility check: Confirm the replacement board’s hardware revision (R0101 vs R0102) is compatible with your AC800M firmware version. ABB firmware release notes document any hardware revision dependencies. If in doubt, contact us — we can cross-reference your firmware version against board revision compatibility.
6. Cold start and DDCS ring re-initialization: After installation, perform a full rack cold start. The AC800M will re-scan the DDCS ring and re-assign node addresses. Monitor Control Builder for any “Node Not Found” alarms during the first 60 seconds of startup.

Reliability in Harsh Conditions

The 3BHE006373R0101 was engineered for environments that would destroy consumer-grade electronics. ABB’s industrial qualification process for AC800M interface boards includes vibration testing to IEC 60068-2-6 (sinusoidal, 5–150 Hz, 1g), shock testing to IEC 60068-2-27, and thermal cycling across the full -40°C to +70°C storage range. The board’s conformal coating provides protection against humidity, condensation, and airborne contaminants — critical in cement plants, paper mills, and coastal installations where salt-laden air accelerates PCB corrosion.

The optical transceivers used in the DDCS interface are rated for a minimum 100,000-hour MTBF under nominal operating conditions. In practice, boards in well-maintained, climate-controlled control rooms routinely exceed 15 years of service. Failures we see in the field are almost always traceable to one of three root causes: contaminated fiber connectors, sustained operation above the 55°C ambient limit (often caused by failed rack cooling fans), or physical damage from improper handling during previous maintenance.

Every unit we ship — whether new OEM or tested surplus — is inspected for physical damage, cleaned, and functionally verified on an ABB-compatible test bench before packaging. Surplus units include a full test report. New OEM units ship in original ABB anti-static packaging with traceability documentation.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international logistics hub with direct DHL Express, FedEx International Priority, and UPS Worldwide Express connections. Here’s what the shipping timeline looks like from the moment you confirm your order:

• Order confirmed before 15:00 CST: Same-day dispatch. Your tracking number is in your inbox before end of business.
• DHL Express / FedEx IP to Europe: 2–3 business days door-to-door. Customs clearance handled with full commercial invoice and HS code documentation (HS 8537.10).
• DHL Express to North America: 3–4 business days. We pre-file EEI/AES where required for export compliance.
• FedEx IP to Southeast Asia / Middle East: 2–3 business days. We have established accounts with both carriers — no third-party freight forwarder delays.
• Emergency same-day courier (Xiamen local): For customers with freight forwarders or consolidators in Xiamen, we can deliver to your agent’s warehouse within 4 hours of order confirmation.

All shipments include ESD-safe anti-static packaging, moisture barrier bag, and foam-lined outer carton rated for air freight handling. We provide a commercial invoice, packing list, and certificate of origin with every shipment. For customers requiring a Certificate of Conformance or third-party inspection report, contact us at the time of order.

We’ve shipped ABB spare parts to 47 countries. Customs delays are rare when documentation is correct — and we’ve been doing this long enough to get it right the first time.
