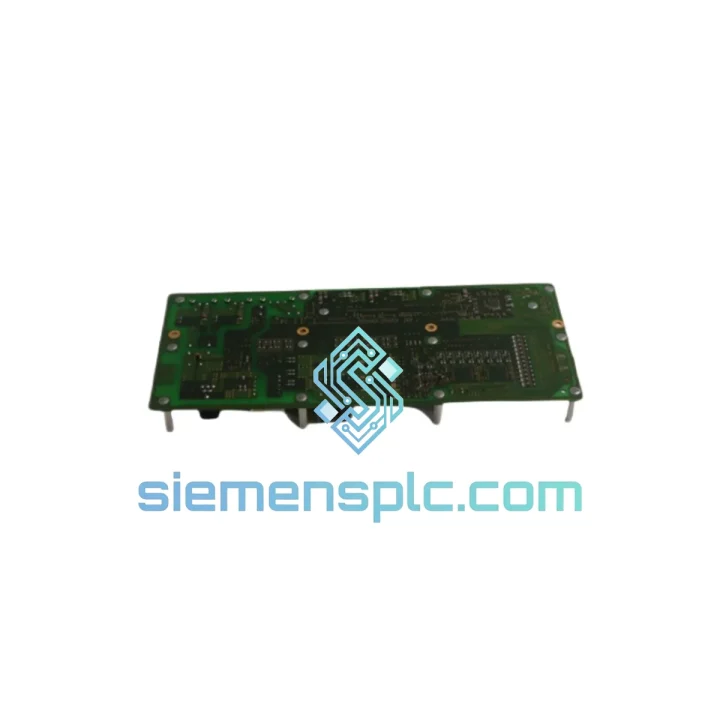

ABB 3BHE012095R0002 UAD141A02 DCS Module

ABB 3BHE012095R0002 UAD141A02 — Stop the Bleeding: Get Your AC800M Back Online Before the Next Shift

Your AC800M controller just dropped a Basic Module fault. The HMI is screaming. The process engineer is on the phone. Maintenance is standing by the cabinet with a flashlight. You already know what this costs per hour — and you need a verified, ship-ready ABB 3BHE012095R0002 UAD141A02 in your hands, not a lead-time quote from a distributor who has to “check with the factory.”

We stock the UAD141A02 in Xiamen. It ships today. DHL Express to most destinations in 48–72 hours. No minimum order. No waiting for a sales rep to call you back. This is the part. This is the page. Let’s get your plant running.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure signatures for the UAD141A02:

• STATUS LED solid red or alternating red/green: Internal watchdog timeout or firmware corruption. Before condemning the module, attempt a cold restart with the controller key switch. If the fault persists across two power cycles, the module is the culprit.
• CEX-Bus communication loss (CI854/CI857 drops offline): Often misdiagnosed as a communication module fault. The UAD141A02 manages the CEX-Bus master role — a degraded Basic Module will cause cascading I/O loss across the entire rack.
• Intermittent process value freezing: Scan cycle overrun caused by a failing processor. Check the AC800M diagnostic log in Control Builder M for “Task Execution Overrun” events before the freeze timestamps.
• Module not recognized after insertion: Backplane slot addressing conflict. Verify the rack’s slot configuration in Control Builder M matches the physical slot position. The UAD141A02 must occupy the designated controller slot — it is not hot-swappable in all rack configurations.

Replacement procedure — field checklist:

1. Export the current controller configuration from Control Builder M (File → Export) and save to a USB drive before touching anything.
2. Note the firmware version running on the failed module (visible in the controller properties before it fully dies, or from your last project backup).
3. Power down the rack. The UAD141A02 is not hot-swappable — attempting live replacement risks corrupting the project database on the remaining modules.
4. Remove the failed module. Inspect the backplane connector pins for oxidation or mechanical damage before inserting the replacement.
5. Insert the new 3BHE012095R0002. The module will self-address on first power-up — no DIP switch configuration required on the UAD141A02 itself, but confirm the rack address jumpers on the rack chassis match your system topology.
6. Power up. The module will boot and attempt to load the last project stored in its flash memory. If the replacement unit is blank, you will need to download the project from Control Builder M via Ethernet or the service port.
7. Verify firmware compatibility: the UAD141A02 R0002 requires AC800M firmware 5.1 or later. Running an older firmware version on a newer hardware revision will result in a “Hardware Mismatch” fault. Update firmware via Control Builder M before going live.
8. Confirm all I/O modules re-establish communication. Check the hardware tree in Control Builder M — all modules should show green within 60 seconds of controller startup.
9. Run a full I/O force test on critical channels before handing back to operations.

Firmware matching note: The R0002 hardware revision is not backward compatible with firmware versions below 5.1. If your system runs an older firmware baseline, contact us — we may have R0001 units available that match your existing firmware environment without requiring a system-wide upgrade.

Reliability in Harsh Conditions

The AC800M platform was designed from the ground up for continuous operation in environments that would destroy consumer-grade electronics. The UAD141A02 Basic Module reflects that design philosophy at the component level.

The PCB uses conformal coating as standard — not as an option. This protects against condensation in coastal and tropical installations where humidity swings are extreme. In offshore platform deployments, where salt-laden air accelerates corrosion on unprotected boards, conformal-coated modules routinely outlast their uncoated counterparts by a factor of three or more.

Vibration tolerance is validated to IEC 60068-2-6 standards. In installations adjacent to large rotating machinery — compressors, turbines, centrifuges — the module maintains signal integrity without the micro-fractures in solder joints that plague lower-spec alternatives. The mechanical locking mechanism on the front connector prevents vibration-induced partial disconnection, which is one of the most insidious failure modes in industrial control hardware because it produces intermittent faults that are nearly impossible to reproduce on a bench.

Thermal management is passive and deliberate. The module is rated to +55°C ambient without derating. In practice, we have seen UAD141A02 units operating continuously in poorly ventilated cabinets at measured internal temperatures exceeding 50°C for years without failure. The component selection — industrial-grade capacitors, wide-temperature-range oscillators — reflects ABB’s understanding that DCS hardware does not get replaced on a schedule; it runs until it fails, and it needs to fail as rarely as possible.

EMI immunity is validated to IEC 61000-4 series. In heavy industrial environments with large VFDs, arc furnaces, and high-current switching equipment nearby, the UAD141A02 maintains stable operation where lesser modules introduce noise artifacts into analog I/O readings.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes operated by DHL Express, FedEx International Priority, and UPS Worldwide Express.

Standard dispatch timeline:

• Orders confirmed before 14:00 CST ship same business day.
• Orders confirmed after 14:00 CST ship next business day.
• Export documentation (commercial invoice, packing list, certificate of origin) prepared and attached to every shipment.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, Poland): 3–4 business days via DHL Express
• North America (USA, Canada, Mexico): 3–5 business days via FedEx or UPS
• South America (Brazil, Chile, Colombia): 4–6 business days via DHL
• Africa (South Africa, Nigeria, Egypt): 4–7 business days via DHL Express

Every shipment includes a tracking number issued within 2 hours of dispatch. For time-critical emergencies, we can arrange airport-to-airport freight with customs pre-clearance documentation to further compress delivery windows. Contact us directly on WhatsApp for urgent logistics coordination — we respond around the clock for genuine plant emergencies.

Packaging is ESD-safe anti-static bag, foam-lined inner box, and double-wall corrugated outer carton. The module arrives at your site in the same condition it left our warehouse. We do not cut corners on packaging for a component that costs more to install than it does to ship.
