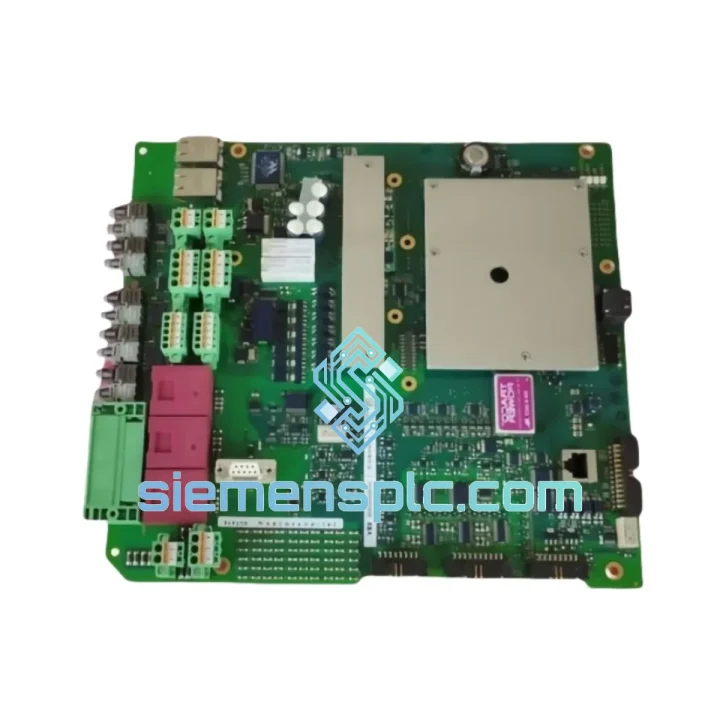

ABB 3BHE015412R0101 Circuit Board – AC800M Series

ABB 3BHE015412R0101 — Processor Board for AC800M Distributed Control Architecture

The ABB 3BHE015412R0101 is a processor-level circuit board assembly engineered for deployment within the AC800M controller platform — ABB’s flagship DCS/PLC hybrid system used across power generation, hydrocarbon processing, pulp and paper, and water treatment industries. This board occupies a critical position in the control loop: it handles real-time task scheduling, inter-module communication arbitration, and diagnostic data aggregation for the host PM860/PM861/PM864/PM866 processor module. Its design reflects ABB’s commitment to deterministic scan-cycle execution in environments where millisecond-level deviations in control response carry direct process safety implications.

Unlike generic PCB assemblies, the 3BHE015412R0101 is revision-specific — the R0101 suffix denotes a defined hardware generation with fixed firmware compatibility boundaries. Substituting an incorrect revision without firmware validation is a documented root cause of AC800M boot failures and watchdog faults in field installations. This page provides the technical depth required for procurement engineers, maintenance planners, and system integrators to make an informed sourcing decision.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3BHE015412R0101 board integrates several hardware design disciplines that distinguish it from commodity PCB assemblies in the industrial automation market.

Backplane Bus Architecture: The AC800M ModuleBus uses a fiber-optic serial link between the CPU module and I/O clusters, eliminating ground-loop interference that plagues copper-based backplane designs in high-voltage switchgear environments. The 3BHE015412R0101 board contains the physical layer transceiver circuitry and framing logic for this link. Bus arbitration is handled in hardware — not firmware — which means bus access latency is bounded and deterministic regardless of application program load. This is a non-trivial design choice: software-arbitrated buses introduce jitter proportional to CPU utilization, which is unacceptable in closed-loop PID control with scan cycles below 50 ms.

EMC Shielding and Signal Isolation: The board employs multi-layer PCB construction with dedicated ground planes separating analog reference signals from digital switching domains. Decoupling capacitors are placed at the component level (not just at the board edge), reducing high-frequency noise coupling from adjacent switching power supplies. The design meets EN 61000-4-4 (electrical fast transient, 2 kV) and EN 61000-4-5 (surge immunity, 1 kV line-to-line) — both critical for installations near variable-frequency drives and large motor starters.

Watchdog and Fault Containment Logic: An independent hardware watchdog timer monitors the main processor’s heartbeat signal. If the processor fails to service the watchdog within the configured timeout window (typically 100–500 ms), the watchdog asserts a hardware reset and logs a fault event to the non-volatile diagnostic memory. This mechanism operates independently of the application firmware, ensuring that a software hang does not result in a silent control failure — a requirement under IEC 61511 for SIL-rated control loops.

Non-Volatile Diagnostic Memory: The board includes EEPROM storage for fault history, module identity data, and calibration offsets. This data persists through power cycles and is accessible via ABB’s Control Builder M engineering tool, enabling post-mortem analysis of field failures without requiring physical removal of the module.

System Integration Benefits

• Deterministic Scan Cycle Execution: Hardware-arbitrated ModuleBus ensures I/O scan jitter remains below ±1 ms at full I/O load, preserving PID loop stability in fast-response applications such as turbine speed control and compressor surge protection.
• Hot-Swap Compatibility: When installed in a redundant PM860/PM864 pair, the 3BHE015412R0101 supports bumpless transfer — the standby module synchronizes state data continuously so switchover occurs without process disturbance.
• Integrated Diagnostics Transparency: Module health status, bus error counters, and temperature readings are exposed via the AC800M OPC-UA server, allowing SCADA and historian systems to monitor hardware condition without additional instrumentation.
• Firmware Version Locking: The R0101 hardware revision is validated against specific AC800M firmware branches, eliminating the compatibility ambiguity that arises when mixing hardware generations during phased plant upgrades.
• SIL Integrity Preservation: Using the original R0101 board in a SIL 2-rated loop maintains the safety function’s hardware fault tolerance (HFT) calculation without requiring re-validation — a significant cost avoidance compared to introducing an unqualified substitute.
• Reduced Commissioning Time: Plug-and-play replacement with automatic parameter download from the AC800M project database means a trained technician can complete a board swap and return the loop to automatic mode in under 30 minutes.
• Long-Term Parts Availability: ABB’s AC800M platform has an extended lifecycle commitment. Sourcing the correct revision now protects against future obsolescence-driven emergency procurement at premium pricing.
• Multi-Protocol Communication Support: The host PM module, supported by this board, communicates via PROFIBUS DP, Modbus TCP, IEC 61850 MMS, and OPC-UA — covering the full spectrum of field device and enterprise integration requirements without additional gateway hardware.

Quality Assurance & Global Logistics

Every 3BHE015412R0101 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection confirms PCB surface integrity, component seating, and connector pin condition. Serial number and date code are cross-referenced against ABB’s manufacturing records to exclude counterfeit or remarked components — a documented risk in the surplus automation parts market. Functional verification is performed where test fixtures are available, with results documented in a unit-level test report provided upon request.

Packaging follows IEC 60068-2-32 drop-test standards: anti-static bags, foam-lined rigid cartons, and moisture-barrier desiccant packs for ocean freight. For air shipments via DHL Express, FedEx International Priority, or UPS Worldwide Express, transit time from Xiamen to major industrial hubs is typically 3–5 business days. Export documentation — commercial invoice, packing list, and certificate of conformance — is prepared to customs standards for EU, US, and Southeast Asian import clearance. All units carry a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions.
