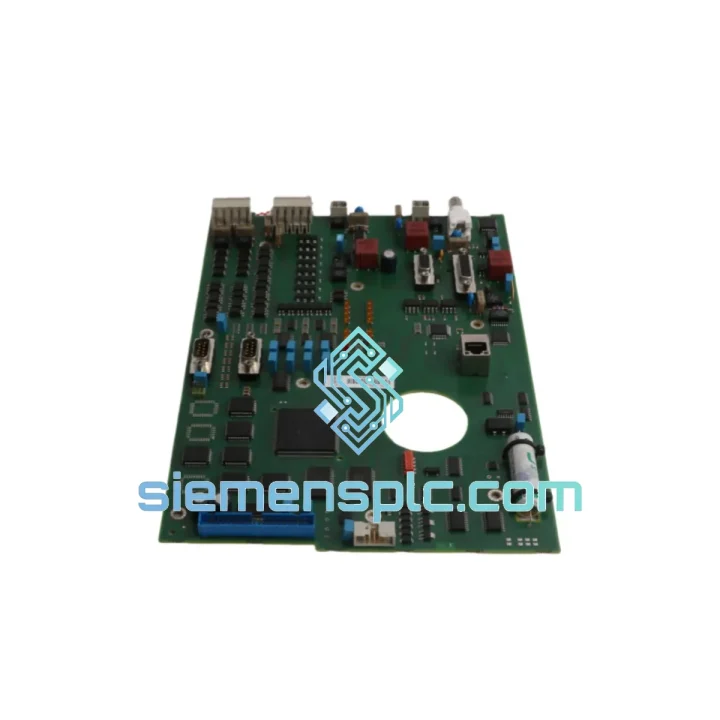

ABB 3BSE011789R1 PXAK402 — Advant Master DCS Control Module: Architecture and Control Loop Role

The ABB 3BSE011789R1, model designation PXAK402, is a rack-mounted control processor module engineered for deployment within ABB’s Advant OCS and Master series distributed control systems. Its primary function is to execute closed-loop regulatory control algorithms — PID, cascade, ratio, and feedforward — while simultaneously managing inter-module communication across the MasterBus 300 backplane. Within a typical Advant rack assembly, the PXAK402 occupies a single slot and interfaces directly with analog and digital I/O sub-modules via the PXAB400-series backplane, eliminating the need for external signal conditioning in standard process loops.

The module’s deterministic scan cycle — configurable from 100 ms to 2,000 ms depending on loop count and algorithm complexity — ensures that process variable deviations are detected and corrective output signals are issued within bounded latency windows. This characteristic is critical in applications such as boiler drum level control, compressor anti-surge loops, and reactor temperature regulation, where delayed actuation directly translates to process excursions or safety system activation. The PXAK402 supports up to 128 function blocks per module, with block execution sequenced by a priority scheduler that distinguishes between fast (safety-critical) and slow (supervisory) control tasks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PXAK402’s internal architecture reflects ABB’s design philosophy for process-critical control hardware: determinism, fault isolation, and signal integrity are prioritized over raw computational throughput. Several hardware design decisions are worth examining in detail.

Backplane Bus Arbitration: The module communicates with I/O sub-modules via the PXAB400 backplane using a token-passing arbitration scheme. This eliminates bus contention under high-load conditions and guarantees that each I/O module receives its polling slot within a defined time window. Unlike shared-bus architectures where a single misbehaving module can degrade overall bus performance, the token-passing protocol confines faults to the offending node, preserving control loop integrity for all other modules in the rack.

EMC and Signal Isolation: Analog input signals entering the PXAK402’s associated I/O modules pass through optocoupler-based galvanic isolation barriers rated at 500 V AC (common-mode). This isolation architecture prevents ground loop currents — common in large industrial facilities with distributed earthing — from introducing offset errors into 4–20 mA measurement signals. The module’s PCB layout employs a split ground plane with ferrite bead filtering on the power supply rails, attenuating high-frequency conducted noise from variable-frequency drives and switching power supplies operating in the same panel.

Watchdog and Fault Detection: An independent hardware watchdog timer monitors the control processor’s execution cycle. If the processor fails to reset the watchdog within the configured timeout (typically 500 ms), the module asserts a hardware fault output and forces all associated analog outputs to their configured fail-safe states (hold-last-value or defined fallback). This behavior is implemented in dedicated logic separate from the main processor, ensuring that a software hang or memory corruption event does not result in uncontrolled process output.

Non-Volatile Parameter Storage: Control loop parameters — PID tuning constants, setpoint limits, alarm thresholds — are stored in battery-backed SRAM. On power restoration following an unplanned outage, the module resumes operation with the last-saved parameter set without requiring operator intervention or re-download from the engineering workstation. Battery life is rated at 5 years under standard operating conditions.

System Integration Benefits

• Deterministic loop execution: Fixed-priority task scheduling ensures that fast control loops (e.g., pressure, flow) execute within their configured scan period regardless of supervisory communication load, eliminating jitter-induced process variability.
• Transparent diagnostics: The module continuously reports its health status — CPU load, memory utilization, communication error counters, and battery voltage — to the MasterView 800 engineering station, enabling predictive maintenance without physical inspection.
• Modular I/O expansion: A single PXAK402 can supervise multiple PXAI/PXAO/PXDI/PXDO I/O modules within the same rack, scaling from 8 to 64+ I/O channels without additional control processors, reducing hardware cost per loop.
• Seamless peer-to-peer data exchange: Via MasterBus 300, the PXAK402 exchanges process data with peer controllers in adjacent racks at update rates down to 100 ms, enabling coordinated multi-loop strategies such as cascade and ratio control across physical rack boundaries.
• Engineering tool compatibility: Full configuration and online tuning are supported through ABB Advant Builder and MasterView 800, with no proprietary hardware dongle required for field-level parameter adjustments.
• Hot-swap capable rack design: When installed in a redundant rack configuration, the PXAK402 supports bumpless transfer to the standby module, maintaining continuous process output during planned maintenance or unplanned module failure.
• Alarm management integration: The module’s function block library includes built-in alarm hysteresis, deadband, and time-delay logic, reducing nuisance alarms at the operator station without requiring additional software configuration at the SCADA layer.
• Long-term spare parts availability: The PXAK402 remains available through verified secondary-market channels, with serialized traceability documentation, supporting plant asset management strategies that extend DCS lifecycle beyond OEM support windows.

Quality Assurance & Global Logistics

Every ABB 3BSE011789R1 PXAK402 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Units are visually inspected for PCB damage, connector pin integrity, and label authenticity. Functional power-on testing confirms that the module initializes correctly and communicates on the MasterBus interface. All units are shipped in anti-static ESD bags within foam-lined cartons, with desiccant packs included for humidity-sensitive long-haul freight.

Serialized traceability documentation — including the module’s production batch reference and inspection record — is provided with each shipment. A 12-month warranty covers manufacturing defects and premature component failure under normal operating conditions. Certificates of conformance are available upon request for quality management system compliance.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. DDP (Delivered Duty Paid) terms are available for bulk orders, eliminating customs clearance complexity for the buyer. In-stock units ship within 2 business days of order confirmation.
