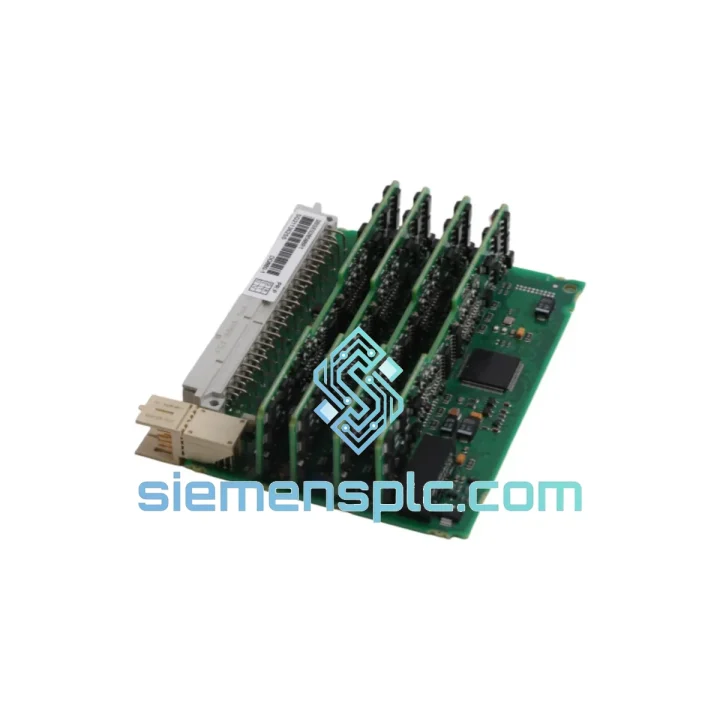

ABB 3BSE028588R1 DO880-1 Digital Output Module

ABB 3BSE028588R1 DO880-1: Stop the Clock on Your Unplanned Shutdown

Every minute your AC800M DCS sits offline, the losses compound — missed production targets, idle crews, contractual penalties. The ABB 3BSE028588R1 DO880-1 is a 32-channel 24 VDC digital output module for the S800 I/O platform, and we have it on the shelf right now. No lead-time negotiation, no factory back-order queue. We ship same day from Xiamen via DHL Express or FedEx International Priority. Your panel is back online before the next shift change.

This is not a refurbished pull. Every unit we dispatch is 100% original ABB, verified against factory holographic labels, PCB date codes, and known-good reference hardware. We have supported emergency shutdowns across oil & gas, power generation, and chemical processing on five continents. When your maintenance team calls at 02:00, we answer.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls teach you that DO880-1 failures cluster around three root causes. Know them before you pull the module.

1. Channel-Level Short-Circuit Latch-Off
The most common call: one or more output channels go dark, the rest stay healthy. The DO880-1’s per-channel electronic protection trips and latches off when a field wiring short or overloaded solenoid exceeds 0.5 A. Before condemning the module, disconnect the field wiring on the suspect channel and cycle power to the MTU. If the channel recovers, the fault is in the field — not the module. Check for chafed cable insulation at conduit entry points and verify solenoid coil resistance (a healthy 24 VDC solenoid typically reads 50–200 Ω).

2. ModuleBus Communication Loss (CB Error Code: I/O Module Not Responding)
If ABB Control Builder M reports the DO880-1 as offline despite the module LED showing power, suspect the MTU backplane connector. Oxidized gold fingers on the module-to-MTU interface are a known failure mode in high-humidity coastal plants. Remove the module, inspect the 48-pin connector for corrosion or bent pins, clean with isopropyl alcohol and a lint-free swab, and reseat firmly. If the fault persists, swap the MTU (TU810V1) before replacing the module — MTU connector failures are more common than module failures in this scenario.

3. Firmware / Hardware Revision Mismatch After Hot-Swap
The DO880-1 (3BSE028588R1) is a hardware revision of the DO880. Both are software-compatible with all AC800M firmware versions. However, if your Control Builder project was configured with an older DO880 hardware type, you may see a “Module Type Mismatch” warning after inserting the DO880-1. Resolution: in Control Builder M, navigate to the I/O module properties, update the hardware type to DO880-1, download the configuration change to the controller. No rewiring required — the channel mapping is identical.

Replacement Procedure (Condensed Field Checklist):

• Confirm the MTU (TU810V1/TU811V1) is powered and the field wiring is intact before inserting the new module.
• Ground yourself with an ESD wrist strap — the DO880-1’s output driver ICs are sensitive to electrostatic discharge.
• Insert the module into the MTU until the locking tab clicks. Do not force — misaligned insertion bends the backplane connector pins.
• Observe the module LED: solid green = healthy communication; flashing green = initializing; red = hardware fault or address conflict.
• In Control Builder M, force a hardware scan or download the I/O configuration if the module does not auto-detect within 30 seconds.
• Perform a channel-by-channel output test using the Control Builder M Force function before returning the loop to automatic control.

Reliability in Harsh Conditions

The DO880-1 was not designed for a climate-controlled server room. ABB engineered the S800 I/O family for the environments where process control actually lives: offshore platforms with salt-laden air, steel mill floors with radiated heat from furnaces, chemical plants where ambient humidity never drops below 80%, and outdoor substations in desert climates where daytime temperatures push 50 °C inside the cabinet.

The module’s conformal-coated PCB resists moisture ingress and corrosive atmospheres. The galvanic isolation barrier between the field terminals and the system bus absorbs the high-energy transients generated by large inductive loads — motor starters, solenoid valves, and relay coils — without propagating damage back to the AC800M controller. Vibration resistance meets IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the mechanical stress profiles of compressor skids and rotating machinery platforms. The wide storage temperature range (-40 °C to +70 °C) means a spare module stored in an unheated warehouse through a northern winter arrives at the plant ready to install without any thermal conditioning period.

Every unit we ship has been stored in ESD-safe, humidity-controlled conditions. We do not warehouse modules in general storage alongside non-electronic goods. Your replacement arrives in the same condition it left the ABB factory.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway connections. Here is what happens from the moment you confirm your order:

• Order Confirmation → Same-Day Pick & Pack: Orders confirmed before 14:00 CST are picked, ESD-packaged, and handed to the carrier the same business day. Orders after 14:00 CST ship the following morning.
• Packaging: Anti-static bag → foam-lined inner box → double-wall corrugated outer carton. Drop-test rated to 1.2 m. No module arrives with transit damage.
• Carrier Options: DHL Express Worldwide (1–3 business days to most destinations), FedEx International Priority (1–3 business days), FedEx International Economy (3–5 business days for non-urgent replenishment orders).
• Export Documentation: Commercial invoice, packing list, Certificate of Origin (COO), and HS code declaration (8537.10) provided with every shipment for smooth customs clearance.
• Tracking: Waybill number sent via email within 2 hours of carrier pickup. Real-time tracking link included.
• Typical Transit Times: Southeast Asia 1–2 days | Europe 2–3 days | North America 2–3 days | Middle East 2–3 days | South America 3–5 days | Africa 3–5 days.
• Customs Brokerage Support: We can pre-file customs data for EU, US, and Australian imports to eliminate clearance delays. Ask us at the time of order.

For plant shutdown scenarios where every hour counts, contact us directly on WhatsApp for a real-time shipping commitment before placing the order.
