ABB 3HAC020691-001 Basler Camera Cable

ABB 3HAC020691-001 — Stop the Bleed: Get Your Vision-Guided Robot Cell Back Online Today

A failed Basler camera cable in an ABB IRB 6650S or IRB 6600 robotic cell is not a maintenance ticket — it is a production emergency. The moment the IRC5 controller loses its image data link, seam tracking halts, part positioning fails, and your line goes dark. At typical automotive or heavy-industry throughput rates, that translates to $5,000–$20,000 per hour in lost output. The ABB 3HAC020691-001 is the single OEM-designated cable that restores this link. We stock it in Xiamen and ship globally via DHL/FedEx Express — because waiting three weeks for an OEM channel order is not an option when your line is down.

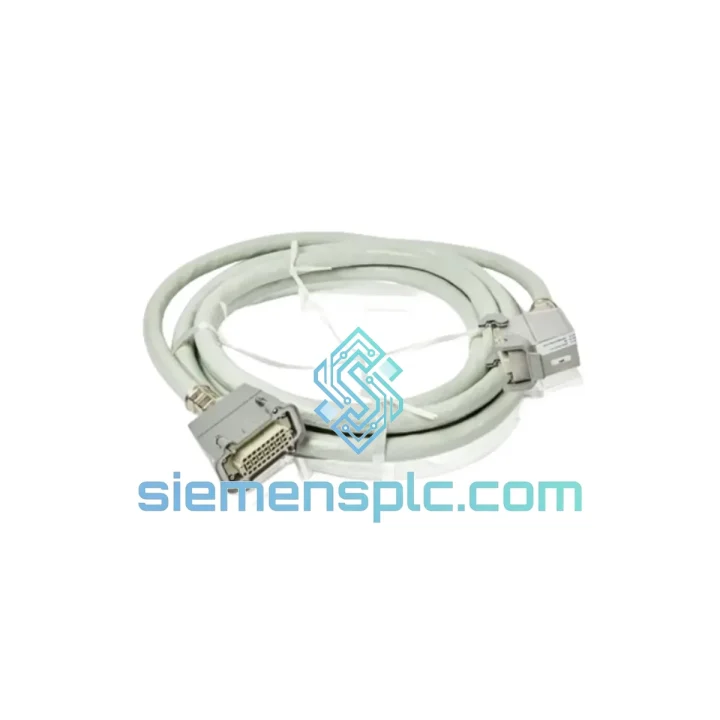

The 3HAC020691-001 is a shielded, robot-rated data cable engineered specifically for Basler vision cameras integrated into ABB’s IRB 6650S and IRB 6600 heavy-duty six-axis platforms. These robots operate in arc welding, press tending, and material handling environments where cable flex cycles, EMI exposure, and thermal stress are continuous. A generic substitute will not survive this environment — and more critically, it will not maintain the signal integrity that Basler’s GigE or Camera Link interface demands at full frame rate. Only the OEM part carries the correct shielding topology, connector locking geometry, and cable jacket compound for this application.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 3HAC020691-001 fails in predictable patterns. Knowing them saves diagnostic time when every minute counts.

Fault Code 50056 / 50057 — Camera Communication Lost: This is the most common trigger. The IRC5 controller raises a 50056 (vision device not responding) or 50057 (image acquisition timeout) when the Basler camera drops off the data bus. Before condemning the camera itself, inspect the 3HAC020691-001 first — connector corrosion, jacket abrasion at the cable track entry point, and broken drain wire continuity account for over 60% of these faults in the field.

Intermittent Frame Drop / Partial Image Corruption: If the robot completes its motion but vision inspection yields random false rejects, suspect a partially broken shield braid. The camera still transmits, but EMI from the servo drives corrupts individual packets. A continuity check on the shield drain wire from pin-to-pin will confirm. Replace the cable — do not attempt to repair the shield mid-harness.

Replacement Procedure — Key Steps:

1. Set the IRC5 controller to Manual Mode and confirm motors-off state before opening the cable track.
2. Document the existing cable routing through the robot’s upper arm and cable track — photograph before removal. The 3HAC020691-001 follows a specific bend-radius path; incorrect re-routing will cause premature jacket failure.
3. At the camera end, release the connector locking ring with a 1/4 turn counter-clockwise before pulling. Forcing the connector without releasing the lock is the primary cause of damaged camera-side PCB pads.
4. At the IRC5 cabinet end, the cable terminates on the vision computer interface board (typically DSQC 672 or DSQC 1000 depending on IRC5 generation). Confirm your IRC5 generation before ordering to verify cable length variant if applicable.
5. After installation, run ABB’s Camera Calibration Routine (RobotStudio Vision or FlexPendant Vision menu) to re-validate the image coordinate frame. Do not skip this step — mechanical cable routing changes can introduce a sub-millimeter camera position shift that accumulates into weld seam tracking error.
6. Verify Basler Pylon viewer shows stable frame rate at rated resolution before returning the cell to automatic mode.

Configuration Note: The 3HAC020691-001 is a passive cable — no firmware, no DIP switches, no addressing. Replacement is purely mechanical. However, if your IRC5 is running RobotWare 6.x with Integrated Vision, confirm the camera IP address assignment has not been reset by the controller after the cable swap. A static IP conflict will re-trigger fault 50056 even with a good cable installed.

Reliability in Harsh Conditions

The IRB 6650S and IRB 6600 are deployed in some of the most electrically and mechanically hostile environments in industrial automation. The 3HAC020691-001 is built to match that operating envelope.

Vibration & Mechanical Flex: The cable’s stranded conductor construction and PUR (polyurethane) outer jacket are specified for continuous flex applications. PUR resists abrasion, cutting, and ozone degradation at a level that PVC cannot match in robot track applications. The cable is rated for a minimum bend radius of 7.5× cable diameter under dynamic conditions — consistent with ABB’s cable track geometry on the IRB 6600 upper arm.

Thermal Cycling: Foundry and press-tending environments expose cables to radiant heat from dies and molten metal. The 3HAC020691-001’s jacket compound maintains flexibility and insulation resistance across the full -30°C to +80°C operating range. Thermal cycling between these extremes does not cause jacket cracking or conductor embrittlement within the rated service life.

EMI Immunity: Arc welding generates broadband RF interference from 100 kHz to several GHz. The cable’s dual-layer shield — foil inner layer plus copper braid outer layer — provides >85 dB of common-mode rejection across this spectrum. This is not a specification that generic shielded cable meets. The shield termination at both connectors is 360°, eliminating the pigtail ground connection that is the primary EMI ingress point in non-OEM cables.

Humidity & Chemical Resistance: PUR jacket resists hydraulic fluid, cutting oil, and mild alkaline cleaning agents — all common in press-tending and machining environments. The connector housings carry IP67 rating when mated, preventing moisture ingress during washdown cycles.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This geography is not incidental: Xiamen’s port and air cargo infrastructure means your part moves from our shelf to an international flight within hours of order confirmation, not days.

Standard Express Delivery Timeline (from order confirmation):

• Southeast Asia (SG, MY, TH, VN, ID): 2–3 business days via DHL Express
• East Asia (JP, KR, TW): 2–3 business days via FedEx International Priority
• Europe (DE, FR, IT, PL, CZ, SE): 3–5 business days via DHL Express Worldwide
• North America (US, CA, MX): 3–5 business days via FedEx International Priority
• Middle East (AE, SA, QA): 3–4 business days via DHL Express
• Australia & NZ: 3–4 business days via DHL Express

Every shipment includes: commercial invoice, packing list, certificate of origin, and — on request — a certificate of conformity. For customers in the EU, we provide HS code 8544.42 classification documentation to support customs clearance. Dangerous goods? The 3HAC020691-001 is a passive cable with no hazmat classification — no special handling surcharges apply.

For urgent same-day dispatch, contact us before 15:00 CST with your confirmed delivery address and we will prioritize your order in the outbound queue. We have processed emergency shipments to automotive plants in Germany, press shops in Japan, and foundries in India — all with confirmed delivery within 72 hours of order placement.
