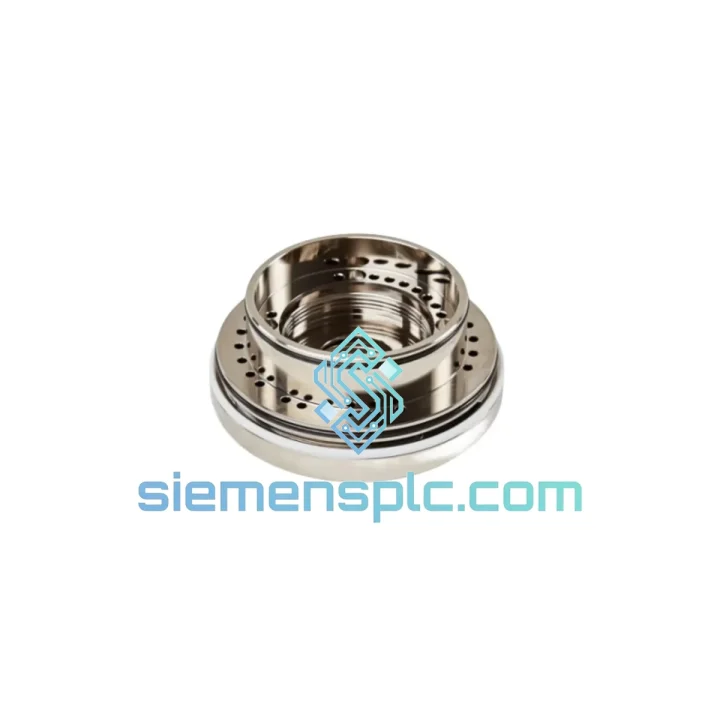

ABB 3HAC021346-003 Reduction Gear

ABB 3HAC021346-003 Reduction Gear: Stop the Clock on Your IRB 2400 Downtime

Your IRB 2400 robot arm just threw a joint fault. The axis is drifting. Weld seams are off by 2 mm and the line supervisor is already on the phone. You’ve isolated it to the reduction gear — axis 2 or 3, classic failure pattern on high-cycle cells. Every minute this cell sits idle costs real money: scrapped assemblies, idle labor, delayed shipments. You don’t need a lecture on robot kinematics right now. You need the part, fast.

The ABB 3HAC021346-003 is the OEM reduction gear for the IRB 2400/3 drive train. We have it. It ships from Xiamen today. DHL Express to your dock in 3–5 business days, anywhere on the planet. No waiting on ABB’s regional distribution queue. No minimum order theater. One unit, shipped, tracked, documented.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Codes That Point Here First

Before you pull the gear, confirm the diagnosis. On ABB IRC5 controllers, the following error codes are the most common indicators of reduction gear wear or failure on the IRB 2400:

• 50056 – Joint 2/3 position deviation: The motor encoder reports commanded position, but the TCP is drifting. If recalibration doesn’t hold across duty cycles, the gear backlash has exceeded tolerance. Replace the gear, not the motor.
• 50024 – Axis collision detected (false positive): Worn gear teeth create torque spikes that the collision detection algorithm misreads as an actual impact. If your robot is stopping mid-path with no physical obstruction, check gear wear before adjusting collision sensitivity.
• 38203 – Resolver signal error: In some cases, gear housing micro-movement caused by worn bearings inside the reduction unit can stress the resolver cable routing. Inspect the cable harness at the axis joint before condemning the resolver itself.

Replacement Procedure – Field Notes

1. Brake release first: Engage the manual brake release on the affected axis before attempting to rotate the arm for access. Skipping this step risks dropping the arm under gravity load — a safety incident waiting to happen.
2. Grease type matters: ABB specifies a particular grease grade for the 3HAC021346-003 gear cavity. Do not substitute with generic lithium grease. Using the wrong lubricant accelerates wear and voids any warranty claim. Confirm the correct ABB grease part number from your IRB 2400 product manual (document 3HAC7793-1 or later revision).
3. Torque the housing bolts in sequence: The gear housing flange bolts must be torqued in a star pattern to the specified value. Uneven clamping distorts the housing bore and introduces the same backlash you just paid to eliminate.
4. Recalibration after installation: The IRB 2400 requires axis calibration after any reduction gear replacement. Use the ABB calibration pendulum or CalibWare software. Do not attempt to manually jog to calibration marks — the positional error will be outside acceptable tolerance for precision applications.
5. Run-in cycle: After calibration, run the axis through a low-speed, full-range motion cycle for 15–20 minutes before returning to production speed. This seats the gear surfaces and distributes grease evenly through the cavity.

Configuration Notes

The 3HAC021346-003 is a direct OEM replacement — no DIP switch settings, no firmware parameter changes, and no self-addressing procedure required. The IRC5 controller identifies the axis mechanically, not electronically, through this gear unit. However, if your robot has had a previous non-OEM gear installed, verify that the axis resolver offset stored in the controller (SMB memory) is cleared and re-established during calibration. Residual offset from a mismatched aftermarket unit will cause persistent deviation errors even after installing the correct OEM part.

Reliability in Harsh Conditions

The ABB IRB 2400 operates in environments that would destroy consumer-grade mechanical components within weeks. Automotive body shops run at 45°C ambient with weld spatter, coolant mist, and continuous vibration from adjacent stamping presses. Electronics fabs cycle between climate-controlled cleanrooms and humid loading docks. The 3HAC021346-003 is engineered for all of it.

The integrated sealing system uses multi-lip seals rated for continuous exposure to industrial coolants, cutting fluids, and fine metallic particulates. The gear housing is precision-machined from high-strength alloy with surface treatments that resist corrosion in high-humidity environments — relevant for facilities in coastal Southeast Asia, the Middle East, and tropical manufacturing zones.

Vibration resistance is not an afterthought. The IRB 2400 platform is frequently mounted on elevated structures, gantries, and mobile platforms where structural vibration is transmitted directly into the robot base. The reduction gear’s internal bearing preload is set at the factory to maintain gear mesh geometry under dynamic loading conditions that would cause backlash growth in lesser designs. This is why OEM parts matter: the tolerances are not interchangeable with aftermarket alternatives, regardless of what the spec sheet claims.

Thermal cycling is the silent killer of reduction gears in high-duty-cycle applications. The 3HAC021346-003 uses a grease formulation and seal material selected for dimensional stability across the full operating temperature range of the IRB 2400 (-5°C to +45°C ambient, with internal gear temperatures running higher under continuous load). A gear that runs fine at startup and develops backlash after two hours of operation is exhibiting thermal expansion mismatch — a problem that does not occur with the correct OEM unit and specified lubricant.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. This is not a drop-ship arrangement. Stock is physically on-hand, inspected, and ready for same-day dispatch on orders confirmed before 15:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Poland, Italy, Spain): 3–5 business days via DHL Express
• North America (USA, Canada, Mexico): 4–5 business days via FedEx or UPS
• South America & Africa: 5–7 business days depending on destination customs clearance

Every shipment includes a full export documentation package: commercial invoice with declared value, detailed packing list, certificate of origin (China), and HS code classification for customs pre-clearance. For customers in countries with specific import licensing requirements for industrial automation components, we can provide additional documentation on request — just advise at the time of order.

Packaging is engineered for the part. The 3HAC021346-003 is a precision mechanical assembly. It ships in rigid foam-lined cartons with anti-static inner wrap, double-boxed for international transit. We’ve shipped to active construction sites in Qatar, offshore platform support bases in Norway, and semiconductor fabs in Taiwan. The part arrives in the same condition it left our warehouse.

Real-time tracking is provided via carrier portal link sent to your email at the moment of dispatch. For urgent shipments, our logistics team monitors the consignment through customs clearance and proactively contacts the carrier if any delay is flagged — because your production schedule doesn’t have room for a package sitting in a customs queue.
