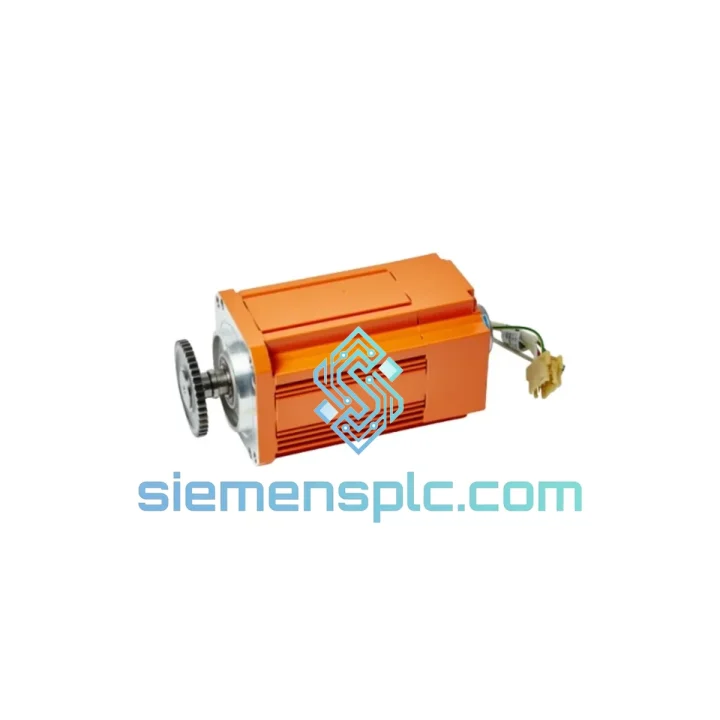

ABB 3HAC021729-001 Robot Servo Motor – IRB4400 Series

ABB 3HAC021729-001 Servo Motor with Pinion — Axis Drive Unit for IRB4400 Industrial Robot

The ABB 3HAC021729-001 is the OEM-specified servo motor assembly with integrated pinion gear, engineered exclusively for the ABB IRB4400 6-axis industrial robot platform. Within a closed-loop motion control architecture, this motor occupies the position of primary torque actuator on the designated robot axis, converting drive amplifier output into precise mechanical displacement at the joint. Its integrated pinion eliminates the tolerance stack-up inherent in separately sourced gear-motor assemblies, preserving the sub-millimeter repeatability that IRB4400 installations demand in automotive body welding, die-casting extraction, and heavy-payload palletizing cells.

Cross-referenced under 3HAC17336-1, 3HAC17394-1, and 3HAC021728-001, this assembly spans multiple OEM revision levels of the same axis drive unit, maintaining backward compatibility across S4C+ and IRC5 controller generations. The part is sourced directly from verified ABB supply channels and dispatched from our Xiamen, China warehouse with full export documentation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC021729-001 operates within ABB’s servo drive loop as a torque-controlled actuator. The IRC5 or S4C+ drive module outputs a sinusoidal PWM current waveform to the motor’s three-phase stator windings. Rotor position is continuously sampled via the resolver or encoder feedback path at the axis computer board, enabling field-oriented control (FOC) with commutation angles updated at the drive’s inner current loop cycle — typically in the range of 4 kHz to 8 kHz depending on the controller generation.

The integrated pinion is machined to ABB’s gear module specification and hardened to withstand the cyclic contact stress of continuous robot operation. This eliminates the backlash accumulation that occurs when aftermarket pinions are press-fitted post-assembly. The motor housing incorporates a thermistor embedded in the stator winding pack; this signal feeds back to the drive module to enforce thermal derating before winding temperature reaches the Class F limit, protecting the motor during sustained high-duty-cycle operation in foundry or press-tending environments.

EMC performance is maintained through the motor’s shielded cable interface and the grounded motor frame, which forms part of the robot arm’s equipotential bonding network. In high-interference environments — such as resistance welding cells where secondary welding currents can induce transient common-mode voltages — this bonding path prevents encoder signal corruption that would otherwise trigger axis fault codes on the controller.

System Integration Benefits

• Direct OEM Mechanical Fit: The pinion gear module matches ABB’s gearbox input specification exactly, eliminating alignment shimming and reducing axis reassembly time from hours to under 30 minutes for experienced maintenance teams.
• Deterministic Torque Response: Permanent magnet rotor construction delivers a linear torque-current relationship across the operating speed range, enabling the IRC5 motion planner to execute path segments with predictable axis dynamics and no torque ripple compensation offsets.
• Multi-Revision Cross-Compatibility: A single part number covers three OEM revision codes (3HAC17336-1, 3HAC17394-1, 3HAC021728-001), simplifying MRO inventory management for facilities operating mixed-vintage IRB4400 fleets.
• Thermal Protection Integration: The embedded stator thermistor interfaces directly with the S4C+/IRC5 drive module’s thermal monitoring channel, enabling automatic derating without external temperature sensors or PLC-side logic modifications.
• Resolver Feedback Integrity: The resolver’s analog output is immune to the digital signal degradation that affects optical encoders in high-vibration or contaminated environments, maintaining position accuracy over extended service intervals.
• Reduced Diagnostic Latency: Because the motor assembly is OEM-matched, axis fault codes generated by the IRC5 controller map directly to documented error categories in ABB’s service manual — eliminating the ambiguous fault signatures that arise when non-OEM components alter the drive’s expected electrical load profile.
• Gearbox Longevity Preservation: The OEM pinion’s surface hardness and tooth profile are matched to the mating gearbox ring gear. Substituting an incorrectly profiled aftermarket pinion accelerates gearbox wear and can void the gearbox warranty; the 3HAC021729-001 avoids this risk entirely.
• Plug-and-Play Controller Compatibility: Motor winding impedance and back-EMF constant are within the drive module’s auto-tuning acceptance window, allowing the IRC5 to complete axis commissioning without manual current loop gain adjustment after motor replacement.

Quality Assurance & Global Logistics

Every unit of the ABB 3HAC021729-001 dispatched from our Xiamen facility undergoes a structured pre-shipment verification protocol. Part number labels and OEM revision codes are cross-checked against the order specification. Connector housings, resolver/encoder cable terminations, and pinion gear tooth surfaces are inspected for mechanical integrity. Refurbished units are bench-tested under simulated drive conditions to verify winding resistance balance, insulation resistance (minimum 100 MΩ at 500 VDC), and resolver output signal amplitude before release.

Packaging uses anti-static foam inserts within double-wall corrugated cartons, with desiccant packs included for sea-freight shipments. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international orders. Air freight via DHL, FedEx, or UPS Express is available for urgent requirements, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. Sea freight consolidation is available for multi-unit orders where lead time permits.

All products carry a 12-month warranty from the dispatch date, covering manufacturing defects and verified OEM component failures under normal operating conditions.
