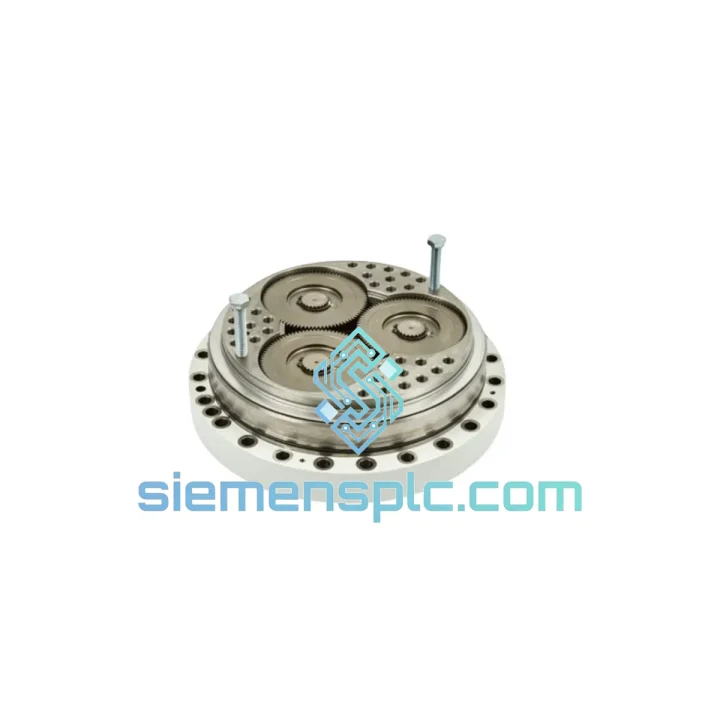

ABB 3HAC024316-001 Robot Reducer – IRB 6640 Series

ABB 3HAC024316-001 RV 550E-242.73 Cycloidal Reducer: Axis-Level Torque Transmission in IRB 6640 Heavy-Payload Robotics

The ABB 3HAC024316-001 is the OEM-designated RV 550E-242.73 cycloidal reduction unit installed at the primary load-bearing axes of the IRB 6640 robot family. With a nominal reduction ratio of 242.73:1 and a rated output torque capacity in the 5,390 N·m class, this reducer governs the mechanical fidelity of every programmed motion path executed by the IRB 6640 platform — a six-axis articulated robot engineered for payloads up to 235 kg and reach envelopes extending to 2,550 mm. The reducer interfaces directly with the ABB servo motor shaft via a rigid coupling flange and transmits torque to the arm structure through a dual-stage cycloidal disc mechanism, eliminating the backlash accumulation that characterizes conventional planetary gear trains. In high-cycle automotive welding, press-tending, and heavy-material transfer applications, the mechanical repeatability of the IRB 6640 is inseparable from the dimensional stability of this reducer unit. Wear or contamination in the 3HAC024316-001 manifests immediately as positional drift at the tool center point (TCP), making timely MRO replacement with a genuine OEM unit the only operationally sound corrective action. siemensplc.com maintains verified stock of this part number, sourced through traceable supply channels, and ships globally from Xiamen, China with typical dispatch within 1–3 business days.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RV 550E series employs a two-stage kinematic architecture. The first stage is a conventional involute spur gear set that steps down input shaft speed by a fixed ratio, delivering intermediate rotational velocity to the eccentric shaft assembly. The second stage is the cycloidal disc mechanism: two phase-offset cycloidal discs engage a ring of cylindrical pins fixed to the housing. As the eccentric shaft rotates, each disc traces a hypocycloidal path, and the net output rotation — transmitted through output pins engaging holes in the cycloidal discs — is the difference between the disc’s orbital frequency and the pin-ring frequency. This differential motion produces the high reduction ratio with simultaneous multi-tooth engagement, typically 60–70% of all ring pins in contact at any instant. The mechanical consequence is a load distribution profile that is fundamentally superior to single-tooth-contact planetary stages: Hertzian contact stress per pin is reduced proportionally, extending fatigue life under the high-cycle duty of automotive production lines.

From an EMC and system-integration standpoint, the 3HAC024316-001 housing is manufactured from ductile cast iron with a ground mating flange surface (Ra ≤ 1.6 µm). This surface finish ensures metal-to-metal contact continuity between the reducer body and the robot arm casting, providing a low-impedance ground path that suppresses capacitively coupled high-frequency noise from the servo drive PWM switching transients (typically 4–16 kHz carrier frequency in ABB’s IGBT drive stages). The sealed grease cavity eliminates the need for external lubrication lines, removing a common failure mode in foundry and washdown environments where coolant ingress through hydraulic fittings degrades lubricant viscosity and accelerates bearing wear. The dual-lip output shaft seal, rated to IP67, maintains internal grease integrity even under sustained water jet exposure at 1 bar, consistent with the IRB 6640 Foundry Plus environmental classification.

Backlash in a new 3HAC024316-001 unit measures ≤1 arc-min under no-load conditions. In the IRB 6640’s kinematic model, this translates to a worst-case TCP positional uncertainty of less than 0.05 mm at maximum reach — well within the robot’s published ±0.07 mm repeatability specification. As the cycloidal disc and pin surfaces wear over service life (typically 20,000–30,000 operating hours at rated load), backlash increases progressively. ABB’s IRC5 controller does not compensate for mechanical backlash in real time; therefore, once TCP drift exceeds the application tolerance, reducer replacement is the only corrective path. Attempting to compensate through software offsets introduces path-dependent errors that cannot be resolved without mechanical restoration of the reducer’s geometric accuracy.

System Integration Benefits

• Deterministic TCP Repeatability: The multi-tooth cycloidal engagement maintains ±0.07 mm TCP repeatability across the full 6-DOF workspace of the IRB 6640, supporting weld seam tracking and vision-guided pick-and-place without recalibration intervals.
• Zero Backlash Reversal: Direction reversals in continuous-path (CP) mode produce no measurable positional step, enabling smooth arc-welding trajectories and gluing paths where velocity vector continuity is process-critical.
• High Torsional Stiffness Under Dynamic Load: The cycloidal disc contact geometry provides torsional stiffness values that resist deflection under abrupt payload acceleration, preserving path accuracy during high-speed pick-and-place cycles with 130–235 kg payloads.
• Sealed Maintenance-Free Operation: Factory-filled grease and IP67 sealing eliminate scheduled lubrication interventions, reducing planned downtime in 24/7 production environments by removing a recurring maintenance task from the PM schedule.
• Direct Drop-In OEM Compatibility: Flange bolt pattern, shaft diameter, and housing register diameter are dimensionally identical to the original factory-installed unit, requiring no shimming, adapter plates, or software parameter changes after installation.
• Diagnostic Transparency via IRC5: The IRC5 controller’s axis supervision function monitors motor current draw against the expected load model. A worn 3HAC024316-001 with elevated internal friction produces a measurable increase in axis current at constant velocity, triggering a predictive maintenance alert before catastrophic failure occurs.
• Thermal Stability in Foundry Environments: The cast iron housing has a thermal mass and conductivity profile matched to the IRB 6640 arm casting, preventing differential thermal expansion at the mating flange that would otherwise introduce thermally induced TCP drift during warm-up cycles.
• Compatibility Across IRB 6640 Payload Variants: A single part number (3HAC024316-001) serves all IRB 6640 payload configurations (130/3.2, 180/2.8, 205/2.75, 235/2.55), simplifying spare parts inventory management for multi-robot installations and reducing the number of unique line items in MRO stock.

Quality Assurance & Global Logistics

Every 3HAC024316-001 unit dispatched by siemensplc.com is a genuine ABB OEM component procured through verified supply channels. Units are not remanufactured, reconditioned, or relabeled. Upon receipt at our Xiamen warehouse, each unit undergoes a structured incoming inspection: label integrity and part number verification against ABB’s official parts database, housing condition assessment, shaft rotational resistance check, and seal integrity confirmation. Units that do not pass all four checkpoints are quarantined and not offered for sale.

Packaging follows anti-static and moisture-barrier protocols: each reducer is individually wrapped in VCI (Volatile Corrosion Inhibitor) film, placed in a rigid foam-lined carton, and sealed with tamper-evident tape. A printed part identification tag inside the carton records the part number, inspection date, and inspector ID for traceability. Export documentation — commercial invoice, packing list, and HS code declaration — is prepared for every international shipment to facilitate customs clearance without delay.

Logistics from Xiamen, China: DHL Express and FedEx International Priority are the standard carriers for single-unit and small-quantity orders, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. For bulk orders (10+ units), sea freight (LCL or FCL) is available with full freight forwarding coordination. In-stock orders are dispatched within 1–3 business days of payment confirmation. A 12-month warranty covers all units against manufacturing defects from the dispatch date.
