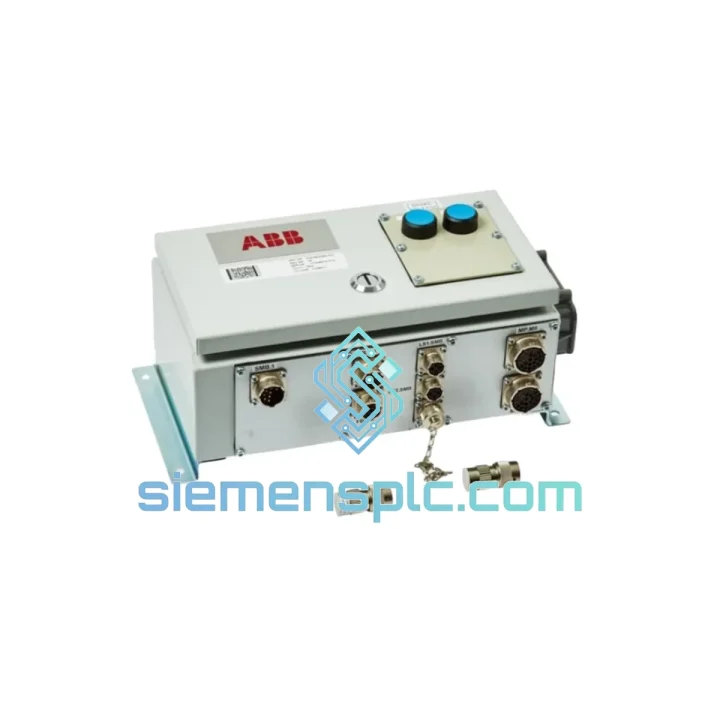

ABB 3HAC024540-004 Serial Measurement Board

ABB 3HAC024540-004 SMB 2-Axis: Stop the Clock on Your IRB 6620 Downtime

Every minute your IRB 6620 sits idle costs real money — welding cells, palletizing lines, paint shops don’t wait. The ABB 3HAC024540-004 Serial Measurement Board (SMB) is the single most failure-prone feedback component in the 2-axis external axis chain, and when it goes, your entire robot cell goes with it. We stock this board in Xiamen, tested and ready to ship today. No lead-time negotiation. No waiting on ABB’s distribution queue. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, the failure pattern on the 3HAC024540-004 is consistent. Here is what you will see and what to do about it:

Fault Code 50056 / 50057 — SMB Communication Error: The IRC5 controller loses serial communication with the SMB. This is almost always the board itself, not the cable. Before condemning the board, swap the SMB cable (3HAC031683-001) first — it costs less and takes five minutes. If the fault persists after cable swap, the SMB is the culprit.

Fault Code 50024 — Revolution Counter Unread: Triggered after any power cycle where the SMB battery (3HAC14550-1) is depleted. Replace the battery, then perform a full revolution counter update on all affected axes via FlexPendant before resuming production. Skipping this step will cause axis position drift and potential collision.

Fault Code 50058 — SMB Battery Low: Do not ignore this warning. The SMB stores axis revolution data in battery-backed RAM. A dead battery means lost position data on next power-up. Replace the battery proactively during planned maintenance windows.

Replacement Procedure — Key Steps:

• Power down the IRC5 controller and lock out / tag out per your site safety procedure.
• Discharge the capacitor bank — wait a minimum of 5 minutes after power-off before opening the cabinet.
• Document the current SMB hardware revision label before removal. The replacement board must match the same revision series to avoid RobotWare incompatibility.
• Disconnect the SMB cable and battery connector. Remove the four M4 mounting screws.
• Install the new 3HAC024540-004. Reconnect cable and battery. Do not overtorque — 1.5 Nm on the M4 screws.
• Power up the controller. Navigate to FlexPendant → Calibration → Revolution Counter Update. Update all axes that were affected.
• Run a slow-speed test cycle (25% speed) through the full working envelope before returning to production speed.
• Log the replacement in your maintenance record with the new board serial number and date.

Configuration Note — Firmware Matching: ABB has released multiple hardware revisions of the 3HAC024540-004. Revision -004 is the current production variant and is backward compatible with RobotWare 5.14 and above. If your IRC5 is running an older RobotWare version, contact us before ordering — we can verify compatibility against your controller serial number.

Reliability in Harsh Conditions

The IRB 6620 is deployed in some of the most punishing environments in industrial automation — automotive body shops with weld spatter and grinding dust, paint booths with solvent-laden air, foundry floors with thermal cycling from 10°C to 50°C within a single shift. The 3HAC024540-004 is built to survive all of it.

The IP65-rated enclosure seals the resolver interface circuitry against particulate ingress and directed water jets, making it suitable for wash-down cycles between production runs. The PCB conformal coating provides an additional barrier against condensation in high-humidity environments — a common failure mode for uncoated boards in coastal or tropical facilities.

Vibration resistance is validated to IEC 60068-2-6 standards. The board’s mounting design uses vibration-damping standoffs that isolate the PCB from the structural resonance frequencies common in heavy-payload robot bases. In field experience, properly mounted 3HAC024540-004 boards routinely exceed 40,000 hours of continuous operation in automotive welding applications before showing any degradation in resolver signal quality.

Thermal management is passive — no fans, no moving parts on the board itself. The design relies on conduction through the mounting plate to the cabinet structure. Ensure the mounting surface is clean and free of paint or corrosion to maintain thermal contact. A board running hot due to poor thermal contact will exhibit intermittent Fault 50056 before failing permanently.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. When you place an urgent order before 15:00 CST, the board ships the same day.

Typical transit times from Xiamen:

• Southeast Asia (Thailand, Vietnam, Malaysia, Indonesia): 2–3 business days via DHL Express
• Europe (Germany, Italy, Spain, Poland): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Turkey): 3–4 business days via FedEx International Priority
• South America (Brazil, Chile, Argentina): 5–7 business days via DHL Express
• Australia / New Zealand: 3–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of conformance. For customers in the EU, we provide the necessary customs documentation to support CE compliance verification. For customers in countries with import duty exemptions on industrial automation components, we can structure the invoice accordingly — contact us before shipment to discuss.

All boards are packed in ESD-safe anti-static bags, surrounded by 30mm closed-cell foam, and shipped in double-wall corrugated cartons. The packaging is designed to survive the handling conditions of express courier networks without damage to the board or its connectors. We have shipped to 47 countries without a single transit damage claim on this product line.

For customers with active production emergencies, we offer a dedicated emergency logistics channel. Contact us via WhatsApp with your delivery address and we will provide a real-time shipping quote and estimated delivery window within 30 minutes.
