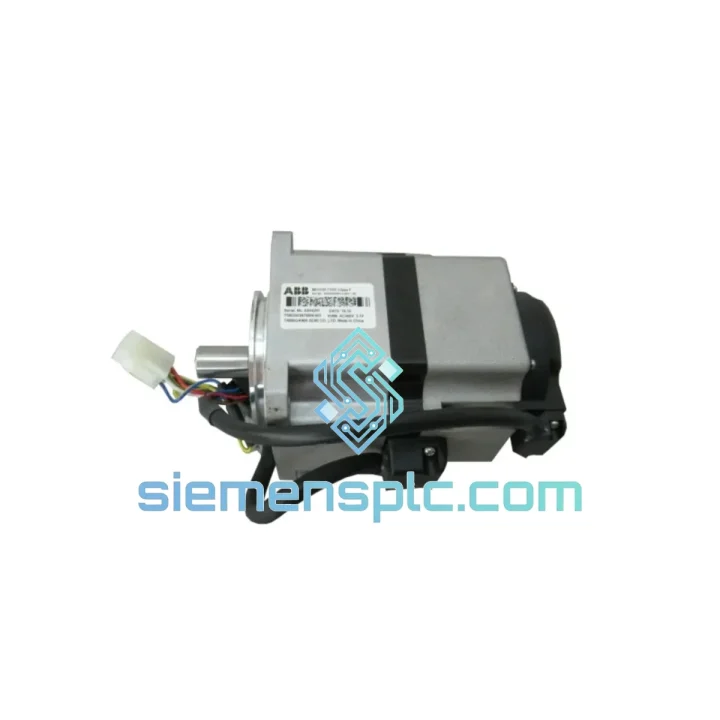

ABB 3HAC026114-001 Servo Motor – IRB 2600 Series

ABB 3HAC026114-001 — Axis Servo Motor for IRB 2600 Industrial Robot Platform

The ABB 3HAC026114-001 is the factory-designated AC servo motor for the IRB 2600 robot series, engineered to deliver precise torque output and closed-loop position control across all six axes of the IRB 2600 manipulator arm. Within the IRC5 motion control architecture, this motor operates as the terminal actuator in a deterministic velocity-torque cascade: the robot computer issues interpolated path segments to the axis computer board, which translates them into current-demand signals dispatched over the drive bus to the matched axis drive module (3HAC029924-002/01). The motor’s absolute multi-turn resolver feeds real-time angular position data back through the Serial Measurement Board (SMB), closing the position loop at the axis computer with a cycle time consistent with ABB’s IRC5 servo update rate. Any deviation in encoder fidelity or winding impedance directly degrades path accuracy and repeatability — making OEM part-number compliance non-negotiable for precision applications such as arc welding, press-fit assembly, and laser guidance.

The IRB 2600 platform is rated for payloads of 12 kg and 20 kg at a reach of 1,650 mm, operating in environments with ambient temperatures from 0 °C to +45 °C and protection class IP67 (wrist). The servo motor must sustain continuous duty cycles under these thermal and mechanical boundary conditions without encoder drift or winding degradation. The 3HAC026114-001 is wound and balanced to ABB’s production tolerances, ensuring that the motor’s back-EMF constant and torque constant remain within the parameter set stored in the IRC5 drive firmware — eliminating the need for drive re-commissioning after a like-for-like replacement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC026114-001 operates within a tightly coupled motor-drive pair. The axis drive module (3HAC029924-002/01) integrates an IGBT-based power stage with an onboard resolver-to-digital converter (RDC). The RDC samples the resolver’s sine/cosine excitation signals at high frequency, converting them to a 16-bit or higher digital position word that is transmitted to the SMB over a serial link. This architecture eliminates the incremental encoder’s dependency on a reference pulse at power-on: the absolute resolver retains angular position through power cycles, provided the SMB backup battery maintains its charge — a critical advantage in applications where robot re-mastering represents significant downtime cost.

From an EMC standpoint, the motor’s resolver winding is shielded and twisted-pair routed within the robot arm’s cable harness, reducing susceptibility to common-mode noise generated by the IGBT switching transients in the drive module. The IRC5 drive bus uses differential signaling between the axis computer and drive modules, further attenuating conducted interference. The motor’s stator laminations are grain-oriented silicon steel, minimizing eddy-current losses and reducing thermal rise at high switching frequencies — a design parameter that directly affects long-term winding insulation integrity in continuous-duty welding cells where ambient temperatures approach the upper operating limit.

The matched motor-drive parameter set — including back-EMF constant (Ke), torque constant (Kt), winding resistance (R), and inductance (L) — is stored in the IRC5 drive firmware as a motor type definition. Substituting a non-OEM motor with differing Ke or Kt values causes the current controller’s PI gains to operate outside their designed bandwidth, producing velocity overshoot, oscillation, or drive fault codes (e.g., joint speed error, motor current limit). The 3HAC026114-001’s OEM parameter match eliminates this risk entirely.

System Integration Benefits

• Zero re-commissioning overhead: OEM parameter match means the IRC5 drive firmware requires no motor type re-selection or gain re-tuning after replacement — the axis is operational immediately after mechanical installation and cable reconnection.
• Absolute position retention: The multi-turn resolver preserves axis zero-point data in SMB battery-backed memory, eliminating re-mastering in the majority of replacement scenarios where the SMB is undisturbed.
• Deterministic path accuracy restoration: Replacing a degraded motor with an OEM unit restores the axis’s contribution to TCP path accuracy to factory specification — critical for weld seam tracking and press-fit force control.
• Dual revision coverage: The 3HAC026114-001 is compatible with both 3HAC029924-002/01 and 3HAC029924-002 drive assembly revisions, covering the full IRB 2600 production run without cross-reference ambiguity.
• Thermal margin compliance: Class F insulation rated to 155 °C provides adequate thermal headroom above the motor’s operating temperature in high-duty-cycle welding environments, extending mean time between failures (MTBF).
• Diagnostic transparency: The resolver’s continuous absolute feedback enables the IRC5 to perform real-time axis health monitoring — detecting bearing wear through velocity ripple analysis and winding degradation through current draw anomalies — without additional sensors.
• Reduced spare-parts complexity: A single OEM part number covers all IRB 2600 payload variants (12 kg and 20 kg), simplifying spare-parts inventory management for multi-robot facilities.
• Connector and harness compatibility: OEM connector pinout and cable exit geometry match the existing robot arm harness routing, eliminating the need for harness modification or adapter looms that introduce additional failure points.
• Warranty-backed reliability baseline: Each unit ships with a 12-month warranty, providing a documented reliability baseline for maintenance planning and insurance compliance in regulated manufacturing environments.
• Traceability for audit compliance: OEM part number, date code, and batch documentation are available on request, supporting ISO 9001 and automotive IATF 16949 maintenance record requirements.

Quality Assurance & Global Logistics

Every 3HAC026114-001 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol: visual examination of the motor body, flange, and connector housing for mechanical damage; resolver winding continuity and insulation resistance check; connector pin integrity verification; and part number label and date code cross-reference against ABB documentation. Units are packaged in anti-static bags within foam-lined, double-wall corrugated cartons rated for international air and sea freight handling.

Xiamen’s geographic position — a major southeastern China port city with direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables efficient dispatch to global destinations. Air freight to Europe, North America, Southeast Asia, and the Middle East typically achieves door-to-door transit times of 3–7 business days. Sea freight LCL consolidation is available for multi-unit orders where lead time permits. All shipments include a commercial invoice, packing list, and optional Certificate of Origin. DDP (Delivered Duty Paid) terms are available for select destinations — contact us to confirm applicability for your country.

Our supply chain sources exclusively from authorized industrial distributors and controlled OEM surplus channels. We do not handle counterfeit or grey-market components. Traceability documentation — including batch records and inspection reports — is available on request for customers operating under ISO 9001, IATF 16949, or equivalent quality management systems.
