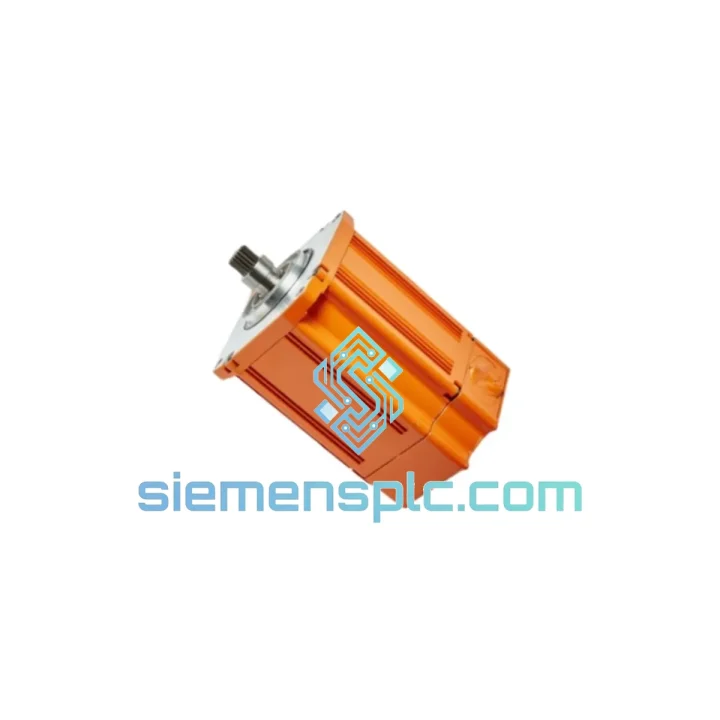

ABB 3HAC026114-005 Robot Motor Pinion

ABB 3HAC026114-005 Axis Drive Motor with Pinion — Stop the Clock on Your Downtime

Every minute an IRB 6640 or IRB 6620 sits idle costs real money. A seized axis motor, a stripped pinion gear, or a fault code that won’t clear — these are not theoretical problems. They happen at 2 AM on a Sunday before a Monday production run. The ABB 3HAC026114-005 motor with integrated pinion is the exact OEM component that gets your robot back on the floor. We stock it in Xiamen, we ship it today, and we have done this hundreds of times for plants across Asia, Europe, and the Americas.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the motor, confirm the fault is mechanical and not a resolver or encoder signal issue. The IRC5 controller will throw different fault codes depending on root cause — misreading them wastes time and parts.

Common fault codes pointing to 3HAC026114-005 failure:

• Error 50056 / 50057 — Joint collision or overload on Axis 1–3. If the robot was running at high payload and decelerated hard, check the pinion teeth for fracture before assuming a controller fault.
• Error 38203 / 38204 — Motor temperature exceeded. A failing bearing inside the motor causes friction heat buildup. If the motor housing is hot to the touch after a short cycle, the motor is the culprit, not the cooling system.
• Error 50024 — Position deviation too large. If the axis drifts under load and the gearbox has already been ruled out, the pinion-to-gearbox mesh is likely worn or the motor shaft has developed play.
• Abnormal noise during axis movement — A grinding or clicking sound during Axis 1/2/3 rotation at low speed almost always indicates pinion wear or a chipped tooth. Do not run the robot further; continued operation accelerates gearbox damage and turns a $400 motor replacement into a $4,000 gearbox overhaul.

Step-by-step replacement procedure (field reference):

1. Safe state first. Set the IRC5 to manual mode, engage the mechanical brake, and lock out the main power. Confirm zero energy state with a multimeter on the drive bus capacitors — wait for discharge below 50 V before touching any motor connector.
2. Document the resolver offset. Before disconnecting the motor, record the current resolver calibration value from the FlexPendant (Calibration → Fine Calibration → read axis offset). You will need this to restore the robot’s zero position after the swap. If the robot has already lost its calibration due to the fault, prepare to run a full fine calibration after installation.
3. Disconnect motor cables in order. Power connector first, then resolver/encoder connector. Label both connectors — the resolver cable on the 3HAC026114-005 uses a 6-pin Harting-style connector; do not force it. Corrosion on the pins is common in foundry environments; clean with contact spray before reconnecting.
4. Remove the motor mounting bolts. The IRB 6640 axis motor is secured with M8 socket head cap screws. Apply penetrating oil if the robot has been in a high-humidity or chemical environment. Stripped threads here are a common secondary problem — have a thread repair kit on hand.
5. Extract the motor carefully. The pinion is meshed with the gearbox input gear. Do not pry or lever the motor body — pull it straight out axially. If it resists, the pinion teeth may be binding; rotate the axis slightly by hand (with brakes released momentarily) to free the mesh.
6. Inspect the gearbox input gear. With the motor out, shine a light into the gearbox opening and inspect the mating gear. If you see pitting, spalling, or broken teeth, the gearbox requires service before installing the new motor. Installing a new 3HAC026114-005 into a damaged gearbox will destroy the new pinion within hours.
7. Install the new motor. Apply a thin film of ABB-approved grease (or equivalent lithium-complex grease) to the pinion teeth. Align the pinion carefully with the gearbox input gear and slide the motor in axially. Do not hammer. Torque the mounting bolts to the ABB-specified value (refer to IRB 6640 Product Manual, Chapter 4 — Repair).
8. Reconnect and verify. Reconnect resolver connector first, then power connector. Power up the controller and check for active faults. Run a slow-speed axis test in manual mode before returning to automatic operation. Verify resolver calibration against your recorded offset — a deviation greater than 0.1° requires fine calibration.
9. Run-in cycle. Do not immediately return to full-speed production. Run the repaired axis at 25% speed for 15 minutes, then 50% for 15 minutes, then full speed. This seats the new pinion mesh and allows you to catch any abnormal noise before it becomes a second failure.

Configuration note on firmware: The 3HAC026114-005 does not carry embedded firmware — it is a purely mechanical/electrical component. However, if your IRC5 controller was updated to RobotWare 6.x after the original robot commissioning, verify that the motor parameter file (MOC.cfg) still references the correct motor type for the affected axis. A mismatch here causes the drive to apply incorrect current limits and will damage the new motor under load.

Reliability in Harsh Conditions

The ABB 3HAC026114-005 is not a light-duty component. It was designed for the IRB 6640, a robot that handles payloads up to 235 kg in environments that would destroy consumer-grade hardware in days. The motor housing is rated for continuous operation in ambient temperatures from -5°C to +45°C, with short-term excursions to 52°C. The integrated pinion uses case-hardened steel with a surface hardness specification that resists the micro-pitting that kills softer gears in high-cycle press-tending and spot-welding applications.

In foundry and die-casting environments — where vibration levels routinely exceed 2g RMS and airborne particulate is a constant threat — the motor’s sealed bearing arrangement and IP54-rated connector interface provide meaningful protection. We have supplied this part to automotive stamping plants in Thailand, steel mills in India, and food-processing facilities in Germany. The failure modes we see are almost always wear-related after years of service, not quality defects. When you install a new OEM unit, you are resetting the clock to factory condition.

Every unit we ship is inspected before dispatch: visual check of the pinion teeth for transit damage, connector pin inspection, and a resistance check on the motor windings to confirm the stator is intact. We do not ship parts that fail inspection. If a unit arrives damaged in transit, we replace it — no argument.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct DHL, FedEx, and UPS service to over 220 countries. For urgent industrial replacement orders, we use the following logistics workflow:

• Order confirmation before 15:00 CST: Same-day dispatch. DHL Express or FedEx International Priority, depending on destination.
• Transit times (typical): Southeast Asia 1–2 days | Europe 3–4 days | USA/Canada 3–5 days | Middle East 2–3 days | Australia 3–4 days.
• Export documentation: We prepare the commercial invoice, packing list, and certificate of origin in-house. For customers requiring a formal customs declaration with HS code 8501.52 (AC motors, multi-phase, 750W–75kW), we include this by default.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments proactively and alert you to any customs holds before they become delays.
• Bulk and project orders: For plant shutdowns or multi-robot refurbishment projects requiring multiple units, contact us for consolidated freight options. We can hold stock against a purchase order and release in batches to match your maintenance schedule.

We understand that a robot sitting idle is not an abstract logistics problem — it is a production loss that compounds by the hour. Our team is reachable 7 days a week specifically because industrial breakdowns do not respect business hours.
