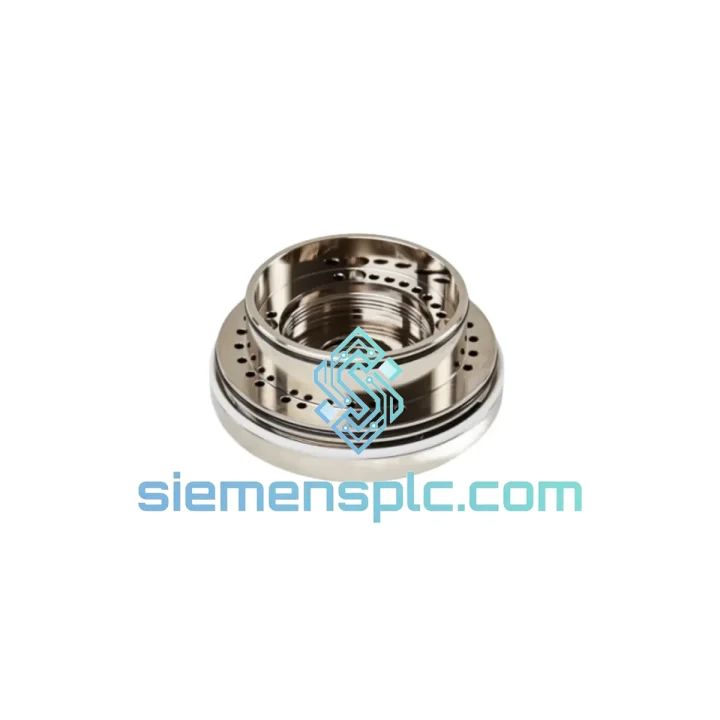

ABB 3HAC028585-001 SA Nozzle Assembly – IRC5 Series

ABB 3HAC028585-001 SA Nozzle Assembly 600531 — Precision Torch Interface for IRC5 Robotic Welding Systems

The ABB 3HAC028585-001 SA Nozzle Assembly (cross-reference: 600531 / 3C2258) is an OEM-grade sub-assembly designed for the ABB IRC5 robot controller platform. It serves as the primary torch-side interface component in arc welding and dispensing end-effector configurations, maintaining gas-shielding geometry and nozzle bore concentricity across high-duty-cycle production cycles. In automotive body-in-white (BIW) lines, shipbuilding yards, and heavy-equipment fabrication cells, this assembly is a scheduled consumable that directly governs weld bead consistency, spatter accumulation rate, and shielding gas coverage efficiency.

Unlike generic aftermarket nozzle assemblies, the 3HAC028585-001 is manufactured to ABB’s dimensional tolerance stack-up specifications, ensuring that the Tool Center Point (TCP) offset remains within the robot’s calibrated envelope. This eliminates the need for TCP re-teaching after replacement — a critical operational advantage in high-mix, low-volume welding programs where re-teaching carries measurable downtime cost.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC028585-001 sub-assembly functions at the mechanical boundary between the robot’s wrist flange and the welding process zone. Its engineering significance extends beyond simple nozzle geometry into three distinct hardware domains:

1. TCP Stability Under Thermal Load: During continuous MIG/MAG welding, the nozzle assembly absorbs radiant and conductive heat from the arc zone. ABB’s OEM material selection — typically a copper alloy body with a chrome-plated bore — provides a thermal conductivity coefficient that dissipates heat away from the torch body, preventing thermal expansion-induced TCP drift. Aftermarket assemblies using lower-grade alloys exhibit bore expansion of 0.08–0.15 mm at sustained arc temperatures, which accumulates as TCP offset error over a production shift.

2. Shielding Gas Flow Dynamics: The internal geometry of the 600531 nozzle assembly is designed to produce a laminar shielding gas flow profile at the weld pool. The bore taper angle and exit diameter are matched to ABB’s torch body gas diffuser to maintain a Reynolds number below the turbulent transition threshold at standard flow rates of 12–18 L/min. Turbulent gas flow at the nozzle exit introduces atmospheric oxygen entrainment, directly increasing weld porosity counts — a defect mode that is frequently misattributed to wire feed or power source parameters.

3. Spatter Adhesion Resistance and Maintenance Interval: The chrome-plated bore surface reduces spatter adhesion energy compared to bare copper. This extends the effective service interval before spatter buildup restricts gas flow cross-section below the 85% threshold that ABB defines as the replacement trigger. In a 24/7 automotive welding cell running 1,200 arc-on hours per month, this surface treatment difference translates to approximately 15–20% fewer nozzle change events versus non-OEM alternatives — a measurable reduction in planned maintenance labor.

4. EMC Considerations at the Torch Interface: The IRC5 controller’s torch condition monitoring I/O (where configured) uses low-voltage sensing circuits routed through the torch cable assembly. The 3HAC028585-001’s metallic sub-assembly provides a defined ground path continuity at the torch tip, which is relevant to the EMC shielding integrity of the torch cable. Substituting assemblies with inconsistent contact resistance at the nozzle-to-torch-body interface can introduce high-frequency noise into the torch monitoring circuit, generating spurious fault codes on the IRC5 I/O board.

System Integration Benefits

• Zero TCP Re-Teaching Required: OEM dimensional conformance ensures the nozzle assembly’s mechanical reference surfaces match the robot’s calibrated TCP offset exactly. Production resumes immediately after replacement without program modification.
• Deterministic Maintenance Scheduling: Known OEM service intervals (500–1,000 arc-on hours) allow maintenance planners to schedule nozzle replacement during planned downtime windows, eliminating unplanned stoppages caused by nozzle failure mid-shift.
• Weld Quality Traceability: Using genuine OEM assemblies provides a documented material baseline for ISO 3834 weld quality management systems. Aftermarket substitutions introduce an uncontrolled variable into the process qualification record.
• IRC5 Torch Monitoring Compatibility: The assembly maintains the electrical continuity specifications required by IRC5 torch condition monitoring I/O modules, preventing false fault generation on the controller’s digital input channels.
• Reduced Porosity Defect Rate: Laminar gas flow geometry suppresses atmospheric oxygen entrainment at the weld pool, directly reducing porosity counts in radiographic or ultrasonic weld inspection records.
• Cross-Generation IRC5 Platform Compatibility: The 3HAC028585-001 is validated across multiple IRB robot generations sharing the IRC5 controller architecture, simplifying spare parts inventory management in multi-robot facilities.
• Spatter-Resistant Bore Extends Service Life: Chrome-plated bore surface reduces spatter adhesion, extending the replacement interval and lowering the per-unit maintenance cost over the robot’s operational lifespan.
• Drop-In BOM Replacement: The part number is directly referenced in ABB’s spare parts catalog and CMMS-compatible documentation, enabling procurement teams to source without engineering re-approval cycles.
• RoHS Compliance for Regulated Facilities: Material compliance documentation is available for facilities operating under environmental or export control frameworks requiring substance declarations.
• 12-Month Warranty Coverage: Each unit carries a 12-month warranty from shipment date, providing procurement teams with a defined liability window for quality escapes.

Quality Assurance & Global Logistics

Every ABB 3HAC028585-001 unit dispatched from our Xiamen, China facility is sourced through verified industrial distribution channels with full traceability to ABB’s OEM supply chain. Pre-shipment inspection includes part number verification against ABB’s spare parts catalog, dimensional spot-check of nozzle bore concentricity, and visual inspection for surface defects or transit damage. Units are packaged in anti-static, moisture-barrier bags with foam-lined cartons rated for international air freight handling.

Xiamen’s geographic position provides direct access to major international air cargo hubs — Xiamen Gaoqi International Airport operates daily freight connections to Frankfurt, Dubai, Los Angeles, and Singapore. Standard international dispatch is 1–3 business days from order confirmation. Expedited DHL/FedEx Priority options are available for urgent production line requirements, with transit times of 3–5 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East.

Export documentation — including commercial invoice, packing list, certificate of origin, and certificate of conformance (upon request) — is prepared in compliance with customs requirements for the destination country. HS Code 8473.30 applies to this assembly for customs classification purposes in most jurisdictions.
