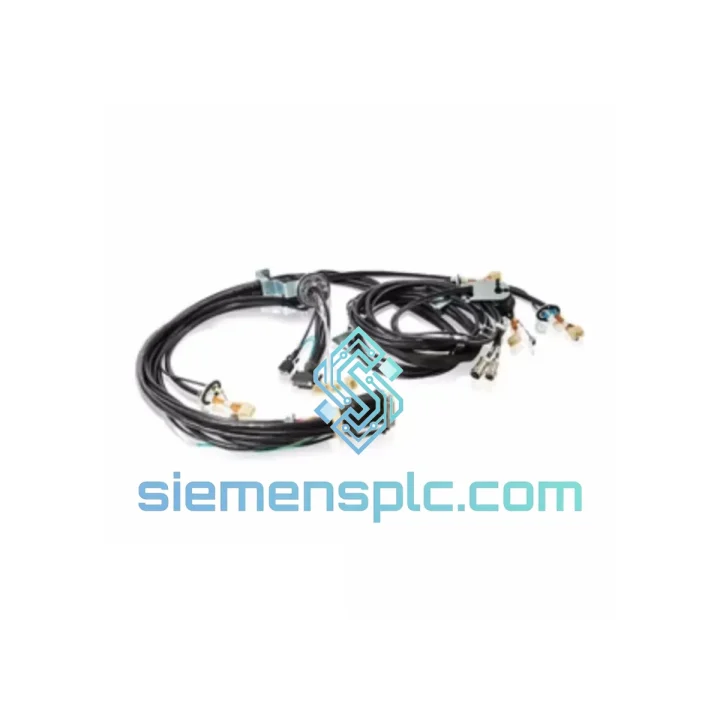

ABB 3HAC028715-001 Robot Cable Harness

ABB 3HAC028715-001 IRB 6660 Manipulator Harness — Stop the Clock on Your Downtime

Your IRB 6660 press-tending cell just tripped. The teach pendant is throwing a 38014 – SMB communication error or a 50296 – axis computer signal loss. You’ve already swapped the SMB board, checked the axis computer, and the fault keeps coming back. Nine times out of ten, the culprit is the manipulator cable harness — specifically 3HAC028715-001. Every hour that robot sits idle costs real money. We stock this harness in Xiamen and ship the same business day.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault codes that point directly at this harness:

• 38014 – SMB communication error: The Serial Measurement Board is not receiving resolver feedback from one or more axes. Before condemning the SMB board itself, flex the harness at the base swivel (axis 1 exit point) while monitoring the fault. If the error clears or changes axis number, the harness is the fault — not the SMB.
• 50296 / 50297 – Axis computer signal loss: Intermittent loss of encoder or motor temperature signals. Common in high-cycle press-tending applications where the harness flexes 1,000+ times per shift at axis 1 and axis 2 bend points.
• 34301 – Motor current deviation: A partially broken power conductor inside the harness creates asymmetric phase resistance. The drive compensates until it can’t — then trips. Resistance-check each phase at the motor connector before ordering a new drive unit.

Step-by-step replacement procedure (IRB 6660):

1. Safe state first: Set robot to manual mode, engage mechanical brake release, and lock out the IRC5 cabinet. Confirm zero energy state on all six axes before touching the harness.
2. Document routing: Photograph the existing harness routing through the base, lower arm, and upper arm before disconnecting anything. The IRB 6660 has tight cable management channels — incorrect re-routing causes premature wear at axis 2 and axis 3 pivot points.
3. Disconnect at both ends: Start at the base plate (controller-side connector), then work toward the wrist. Label each connector with axis number using cable ties or tape — the OEM connectors are keyed but field-worn connectors can be forced into wrong positions.
4. Check resolver calibration offsets: After fitting the new harness, the resolver offsets stored in the SMB are still valid — you do NOT need to recalibrate axes unless you also replaced the SMB or motors. Verify by running a fine calibration check via FlexPendant → Calibration → Fine Calibration.
5. Firmware note: No firmware update is required for a harness swap. However, if the robot has been running RobotWare 6.08 or earlier, check ABB Service Bulletin SB-0000148 regarding SMB firmware compatibility before powering up.
6. First-run check: Jog each axis individually through full range at 10% speed. Monitor the event log for any recurrence of 38014 or 50296. If clean, run a full-speed dry cycle before returning to production.

Common installation mistakes to avoid: Do not over-tighten the cable clamps at the axis 1 base exit — ABB specifies 2.5 Nm maximum on M6 clamp bolts. Over-clamping is the single most common cause of premature harness failure on high-cycle press lines.

Reliability in Harsh Conditions

The IRB 6660 was designed for automotive stamping and forging environments — some of the most punishing conditions in industrial automation. Coolant mist, metal swarf, hydraulic oil vapor, and continuous vibration from press impact loads are the daily reality. The OEM harness assembly for 3HAC028715-001 is built to match that environment:

• Vibration resistance: Conductors are stranded to IEC 60228 Class 6 (fine-stranded), rated for continuous flexing applications. The harness passes ABB’s internal flex-cycle test of 2 million cycles at the axis 1 bend radius before qualification.
• Thermal cycling: The outer jacket compound is rated for continuous exposure at 70 °C with short-term peaks to 90 °C — covering the thermal envelope of a fully loaded IRC5 cabinet in a non-air-conditioned press shop.
• Chemical resistance: Jacket material resists hydraulic oil (mineral and synthetic), cutting fluid, and mild alkaline wash solutions used in press-line cleaning cycles. Do not expose to concentrated ketone-based solvents.
• EMI shielding: Full braided shield with 85%+ coverage provides effective attenuation against the high-frequency switching noise generated by IRC5 drive units. Shield continuity is critical — a broken shield on the resolver conductors will cause ghost 38014 faults that are nearly impossible to diagnose without a harness swap.
• Connector sealing: IP67-rated mated connectors prevent coolant ingress at the wrist and base connection points. Inspect O-rings on the replacement harness before installation — do not reuse O-rings from the failed unit.

Global Express Logistics

We operate from our Xiamen warehouse with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express lanes. Here is exactly what happens after you confirm your order:

• Day 0 (order confirmed before 14:00 CST): Unit is pulled from stock, inspected, and packed in anti-static, moisture-barrier packaging with full part identification label and packing list.
• Day 0 (same day): Shipment booked with DHL or FedEx. AWB number and tracking link sent to your email within 2 hours of dispatch.
• Day 1–3: Typical transit to Southeast Asia, Japan, South Korea, and Australia. DHL Express door-to-door.
• Day 2–4: Typical transit to Europe (Germany, Netherlands, Italy, Poland) and the Middle East via FedEx International Priority.
• Day 3–5: Typical transit to North America (USA, Canada, Mexico) and South America.
• Export documentation included as standard: Commercial invoice, packing list, certificate of origin (China), and HS code 8544.42 declaration. ECCN EAR99 classification available on request for US import compliance.
• Customs clearance support: We provide pre-shipment commodity descriptions optimized for smooth customs clearance in EU, US, and ASEAN markets. Duties and import VAT are the buyer’s responsibility — we can advise on applicable rates for your destination country.

For time-critical shipments where every hour counts, contact us directly on WhatsApp for real-time stock confirmation and same-day booking cut-off times.
