ABB 3HAC029032-001 Robot Teach Pendant – IRC5 FlexPendant

ABB 3HAC029032-001 IRC5 FlexPendant: Operator Interface Architecture in High-Throughput Robot Cells

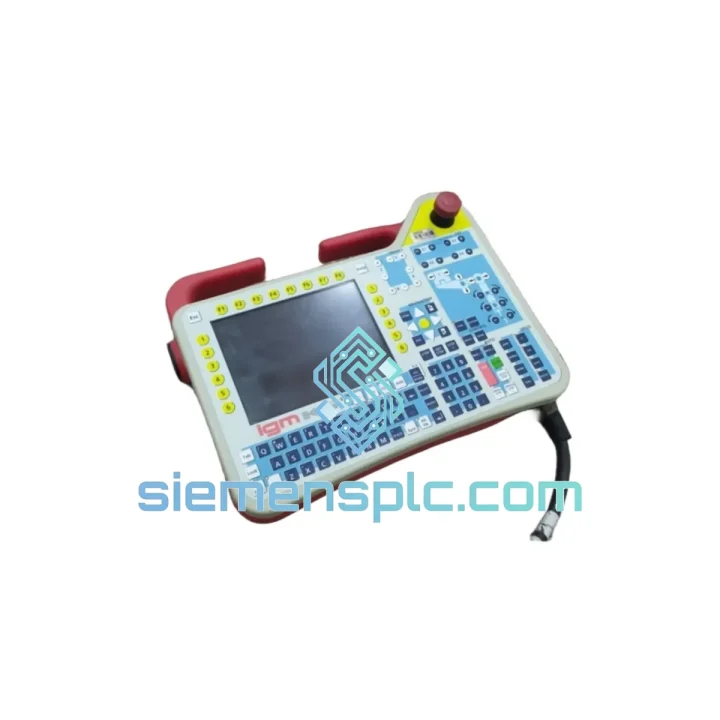

The ABB 3HAC029032-001 is the factory-designated FlexPendant teach pendant for ABB IRC5 single-cabinet and dual-cabinet robot controllers, with validated compatibility across the IGM K5 arc-welding robot series. Within a robot control loop, the teach pendant occupies the human-machine interface (HMI) layer of the IRC5 architecture — it is not a passive display terminal but an active node on the controller’s internal Ethernet-based service bus, exchanging structured data frames with the main computer module (DSQC 1000 or DSQC 1018) at the application layer.

The pendant communicates via a dedicated RJ45 port on the IRC5 controller front panel, operating over a 100 Mbit/s full-duplex link. The embedded processor within the FlexPendant runs a Windows CE-based real-time OS, rendering the RAPID programming environment, I/O status panels, event log, and jogging interface simultaneously without perceptible latency. This architecture separates operator-facing computation from the deterministic motion kernel running on the main computer, ensuring that pendant-side UI load does not introduce jitter into the 4 ms motion interpolation cycle.

For IGM K5 welding robot installations — where arc-on timing, weave parameters, and TCP velocity must be programmed with sub-millimeter precision — the 3HAC029032-001 provides the primary interface for RAPID module editing, weld schedule selection, and real-time I/O forcing during commissioning. Its 6-axis jogging capability, combined with configurable coordinate frames (World, Base, Tool, Wrist), allows process engineers to position the TCP accurately without relying on offline simulation tools during initial cell setup.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC029032-001 FlexPendant integrates several hardware design decisions that distinguish it from generic HMI panels used in PLC-based systems.

Dual-Channel Safety Circuit Architecture: The E-stop and enabling device signals are routed through two independent hardware channels before reaching the IRC5 safety board (DSQC 400 or equivalent). Each channel is monitored by the safety PLC embedded in the controller for cross-channel discrepancy within a defined time window (typically less than 100 ms). A single-point failure in either channel triggers a Category 0 stop without relying on software intervention — this is a hardwired interlock, not a firmware-mediated response. This design satisfies Performance Level d (PLd) per ISO 13849-1 for the pendant-initiated stop function.

3-Position Enabling Switch Logic: The enabling device operates on a deliberate three-position logic: released (off) to pressed to mid-position (enable) to fully depressed (panic/off). This dead-man mechanism prevents the common failure mode of an operator clenching the pendant during an unexpected robot motion. The switch contacts are monitored continuously; the transition from mid to full depression is treated identically to a release, cutting drive power to all axes within the controller’s safe stop response time.

EMC Shielding and Cable Design: The 10 m pendant cable uses a foil-and-braid double-shield construction with drain wire, terminated to chassis ground at the controller end. This topology suppresses common-mode noise induced by welding power sources — a critical requirement in IGM K5 arc-welding cells where pulsed MIG/MAG currents generate broadband RF emissions from 150 kHz to 30 MHz. The RJ45 connector housing is metallized and bonded to the cable shield, maintaining shield continuity through the connector interface.

Touchscreen and Keypad Redundancy: The 6.4-inch resistive touchscreen is supplemented by a physical keypad array covering jogging directions, speed override, program start/stop, and mode selection. This redundancy is intentional: resistive touch panels can exhibit reduced sensitivity when operators wear welding gloves. The physical keys provide unambiguous input in high-PPE environments without requiring screen interaction.

Embedded Processor Isolation: The FlexPendant’s Windows CE processor handles only the application layer — RAPID editor rendering, I/O visualization, and user input parsing. Motion commands entered via the pendant are serialized, transmitted over Ethernet to the main computer, and executed by the deterministic motion kernel. This separation means a pendant-side application crash cannot corrupt the motion trajectory buffer or cause uncontrolled axis movement; the controller’s watchdog timer detects pendant communication loss and executes a controlled stop.

System Integration Benefits

• Deterministic Stop Response: Hardware E-stop channels bypass all software layers, delivering axis power removal within the IRC5 specified safe stop time (under 200 ms to standstill for Category 1 stop at rated load), independent of CPU load or network congestion.
• Real-Time I/O Forcing During Commissioning: The pendant’s I/O panel allows engineers to force digital outputs and read digital/analog input states in real time, eliminating the need for a separate laptop running RobotStudio during initial cell wiring verification.
• RAPID Program Editing On-Machine: Full RAPID module editing, including procedure creation, instruction insertion, and argument modification, is available directly on the pendant without a PC connection. This reduces commissioning time in environments where laptop access is restricted by safety protocols.
• Coordinate Frame Flexibility: Jogging in World, Base, Tool, and Wrist coordinate frames from a single interface reduces TCP positioning errors during manual teach operations, particularly for complex weld joint geometries on the IGM K5 platform.
• Event Log Transparency: The pendant provides access to the IRC5 event log with timestamped entries for all system events, errors, and operator actions. This log is stored in non-volatile memory on the main computer and survives power cycles, supporting post-incident analysis without external logging hardware.
• Configurable Speed Override: Speed override is adjustable from 0% to 100% in 1% increments via the pendant keypad, with a hard limit enforced by the controller at 250 mm/s in manual mode (ISO 10218-1 section 5.4.3). This constraint is controller-enforced, not pendant-enforced, preventing override bypass through pendant firmware modification.
• Multi-Task Program Monitoring: The IRC5 Multitasking option (if licensed) allows the pendant to display and interact with multiple concurrent RAPID tasks — motion task, background logic task, and trap routines — from a single interface, improving diagnostic transparency in complex cell architectures.
• Plug-and-Play Replacement: The 3HAC029032-001 connects via a single keyed RJ45 connector with mechanical locking. No controller-side configuration is required for pendant replacement; the IRC5 auto-detects the pendant on power-up and loads the current system configuration. Mean time to replace (MTTR) in a production environment is under 5 minutes.

Quality Assurance & Global Logistics

Every 3HAC029032-001 unit supplied by siemensplc.com is sourced through verified ABB distribution channels. Units undergo a structured pre-shipment inspection covering physical housing integrity, connector pin condition, cable sheath continuity, E-stop circuit resistance measurement, and enabling switch actuation force verification. Part number labels and serial number formats are cross-checked against ABB published part data to confirm authenticity before dispatch.

Shipments originate from Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders are processed within 1 to 2 business days. Export documentation — commercial invoice, packing list, and Certificate of Origin — is prepared for all international shipments. HS Code 8537.10 applies for customs classification. For bulk procurement or project-based orders requiring consolidated shipment, sea freight options with full export documentation are available on request.

A 12-month warranty covers manufacturing defects from the dispatch date. Warranty claims are processed with a target response time of 48 hours. Technical support for installation, compatibility verification, and IRC5 system integration is available via email and WhatsApp throughout the warranty period and beyond.
